Test 24A: Washer Pump System Testing
>>
Part 2
Part 2

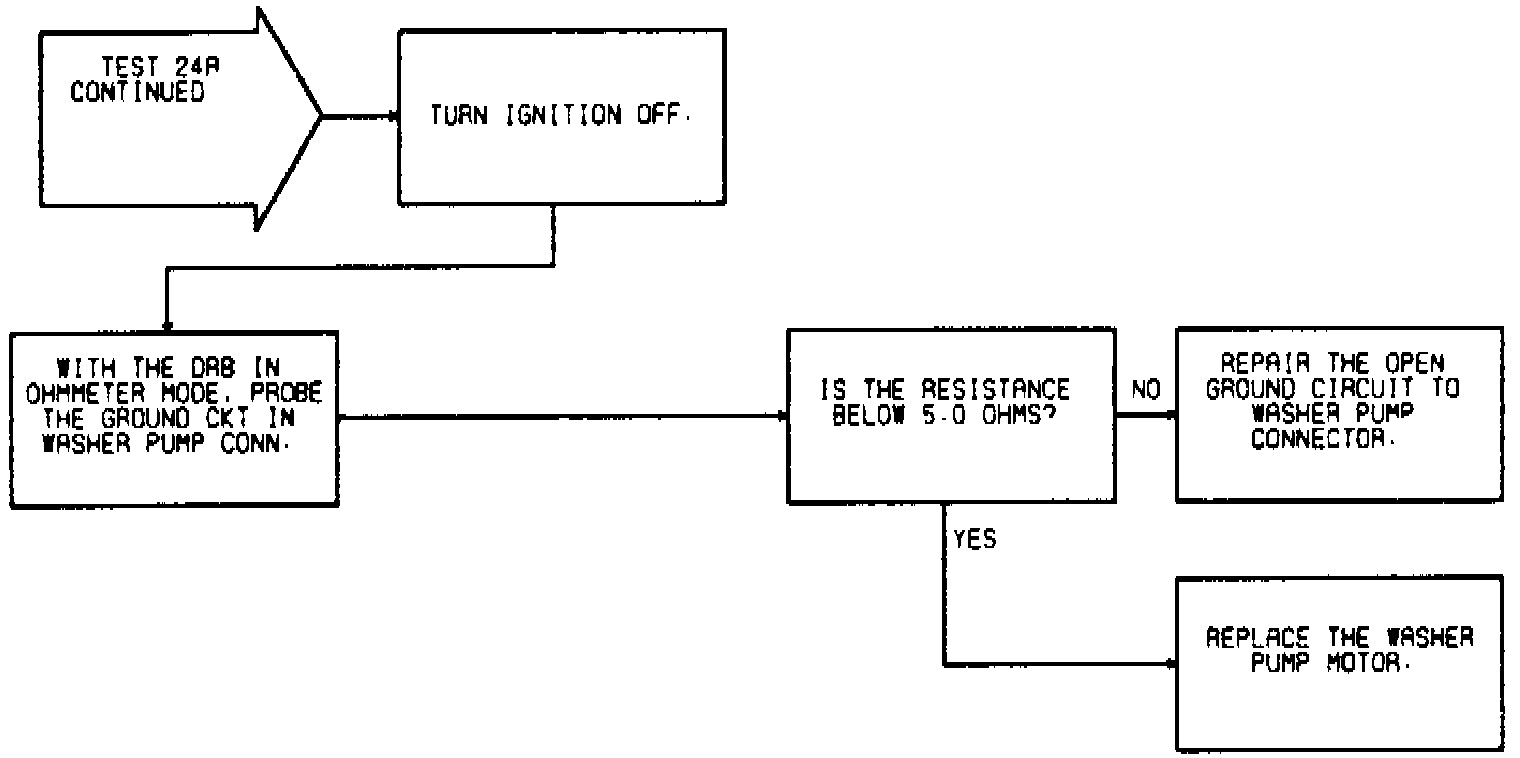

Fig.13 Test 24a: Washer Pump System Testing (Part 2 Of 2):
