Home >> Dodge >> 1994 >> Spirit L4-153 2.5L SOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Motor >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Tests >> Test 23A: Intermittent Wiper System Testing >> Part 2

Part 2

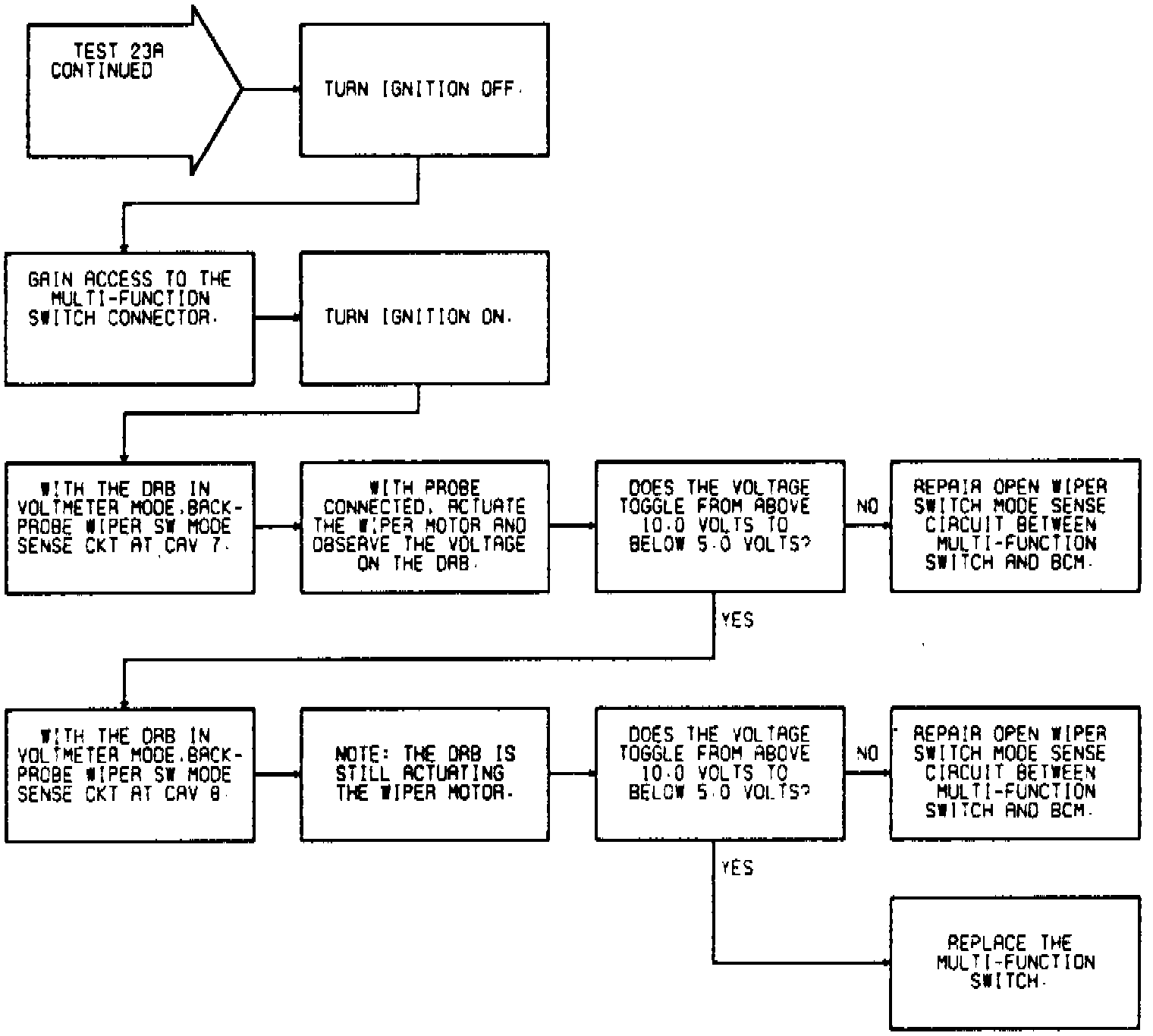

Fig.11 Test 23A: Intermittent Wiper System Testing, Part 2 Of 2:
