Home
>>
Dodge
>>
1994
>>
Spirit L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Part 3
Part 3

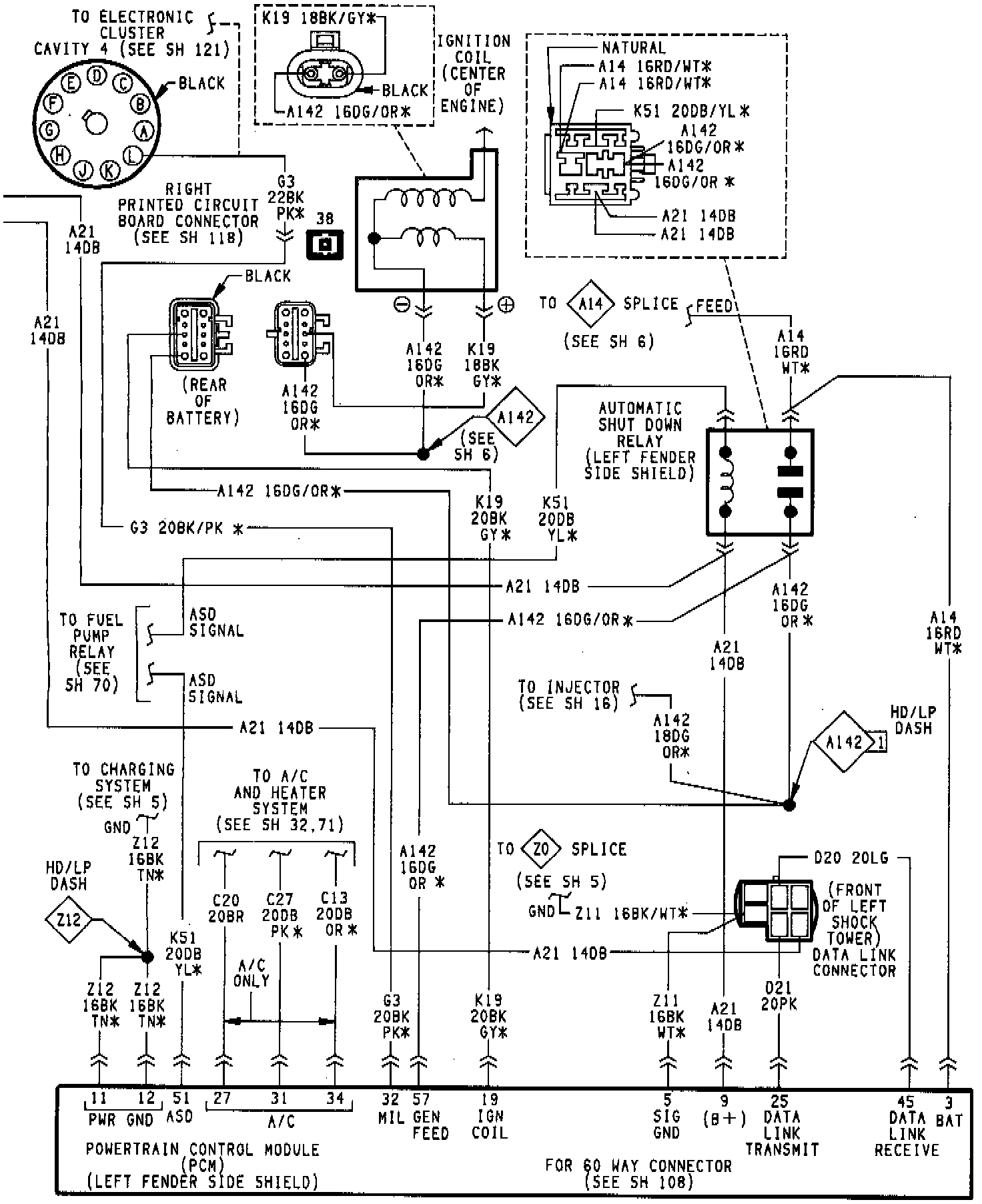

Throttle Body Fuel Injection System:
