Electrical Diagrams

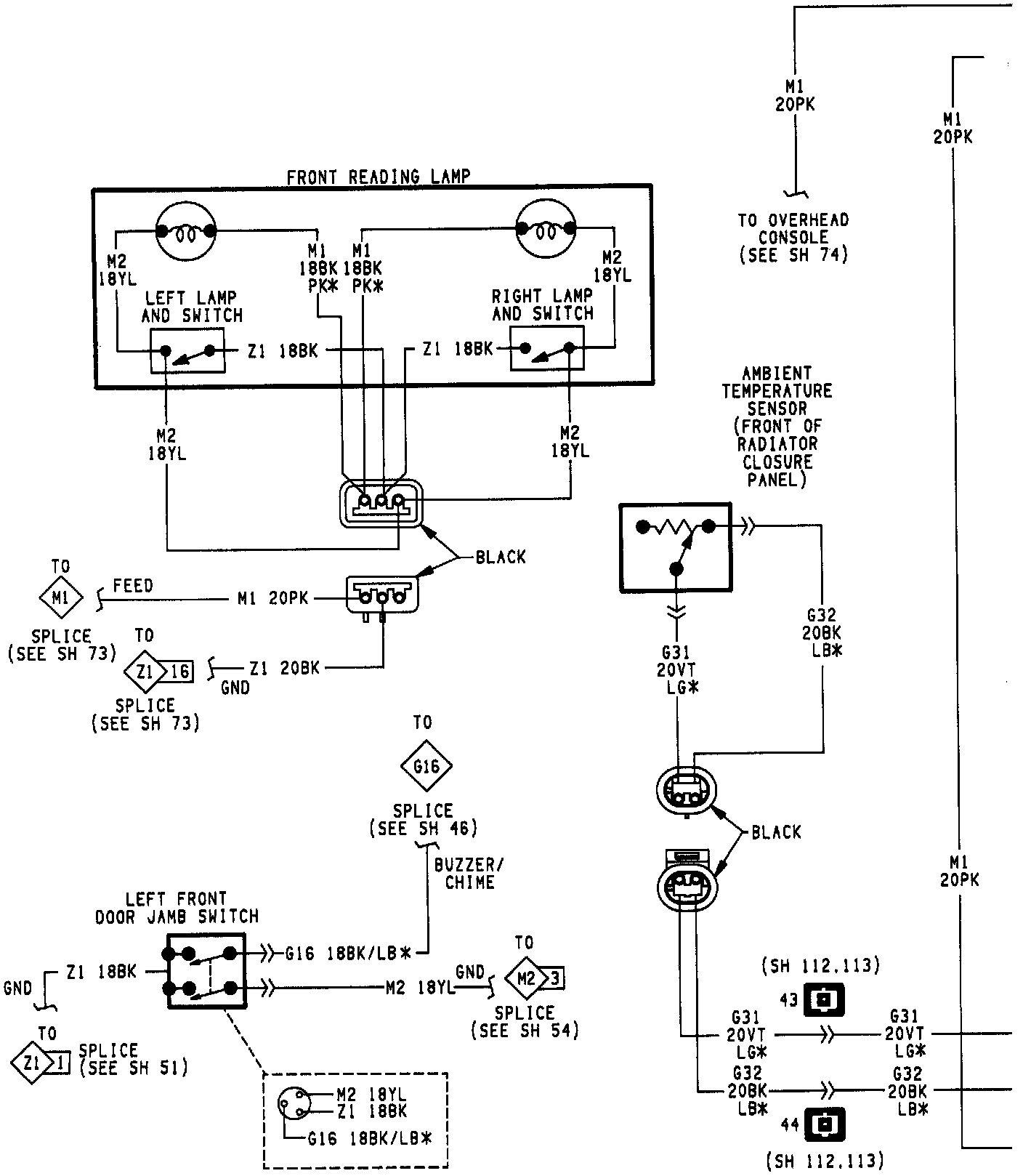

Overhead Console, Dome, Reading & Visor Lamps:

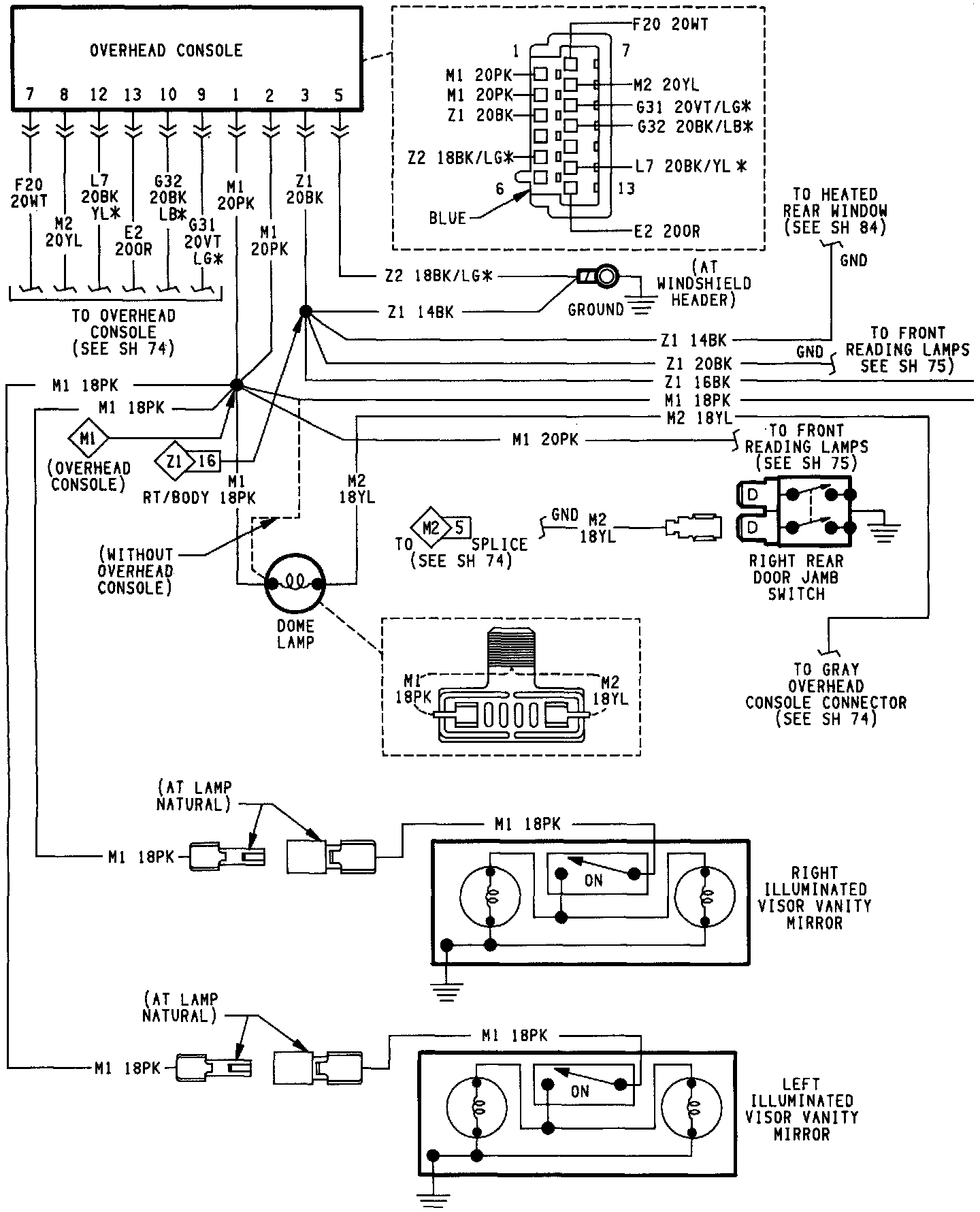

Overhead Console, Dome, Reading & Visor Lamps:

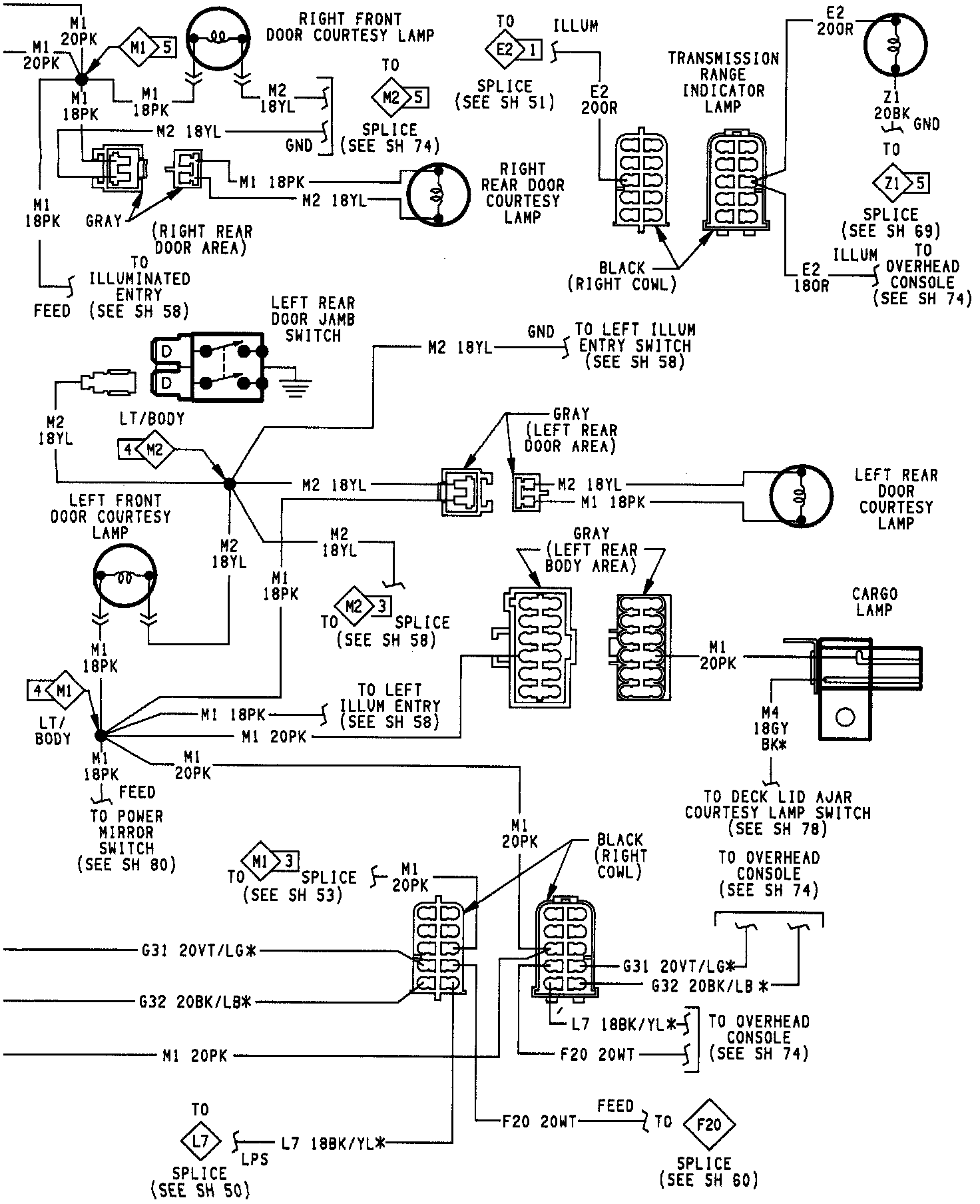

Overhead Console, Dome, Reading & Visor Lamps:



Overhead Console, Dome, Reading & Visor Lamps:
