Spirit L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>
Front End Lighting
Front End Lighting

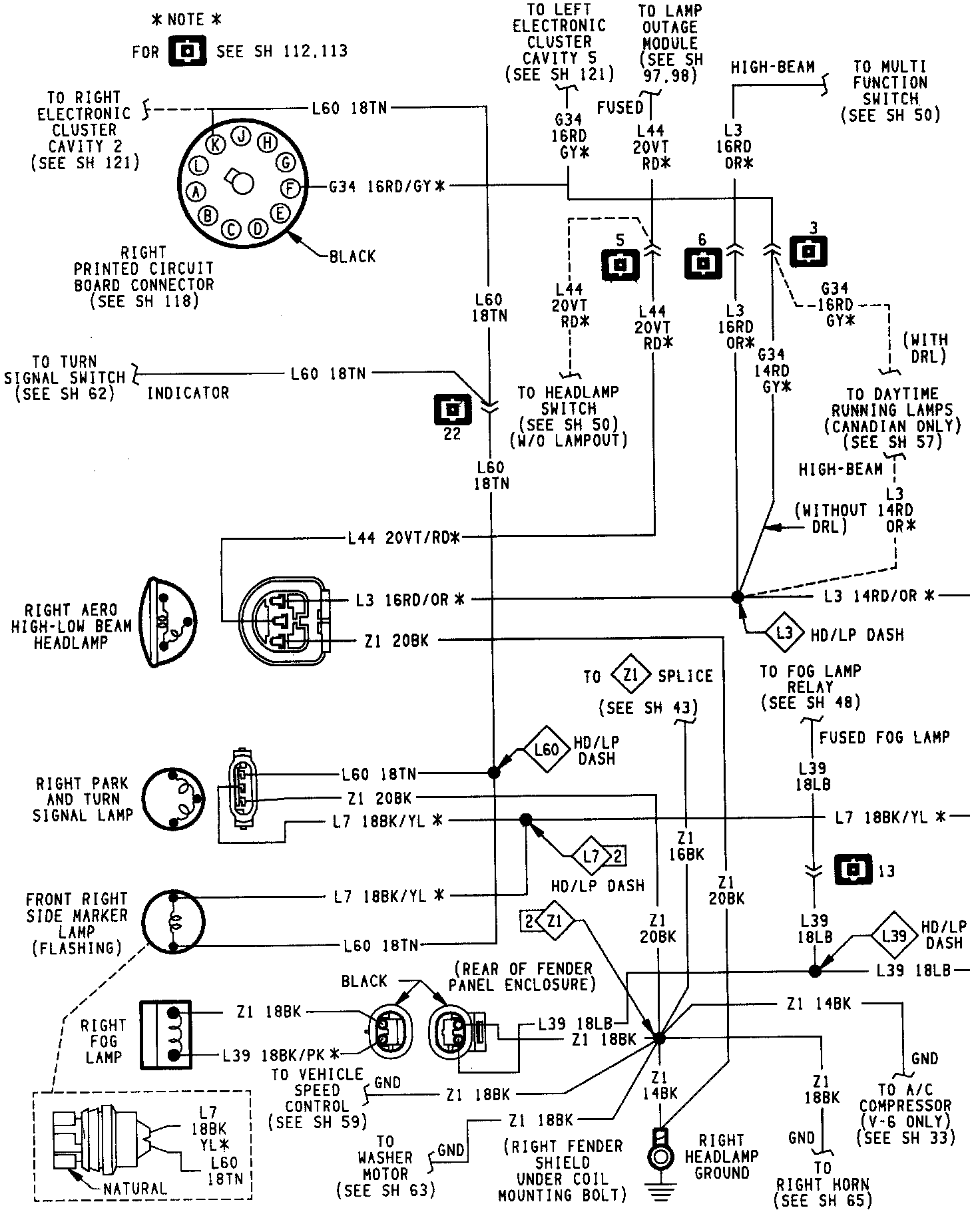

Front End Wiring:
Front End Wiring:
