Dodge
>>
1994
>>
Spirit L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
System Diagram
System Diagram

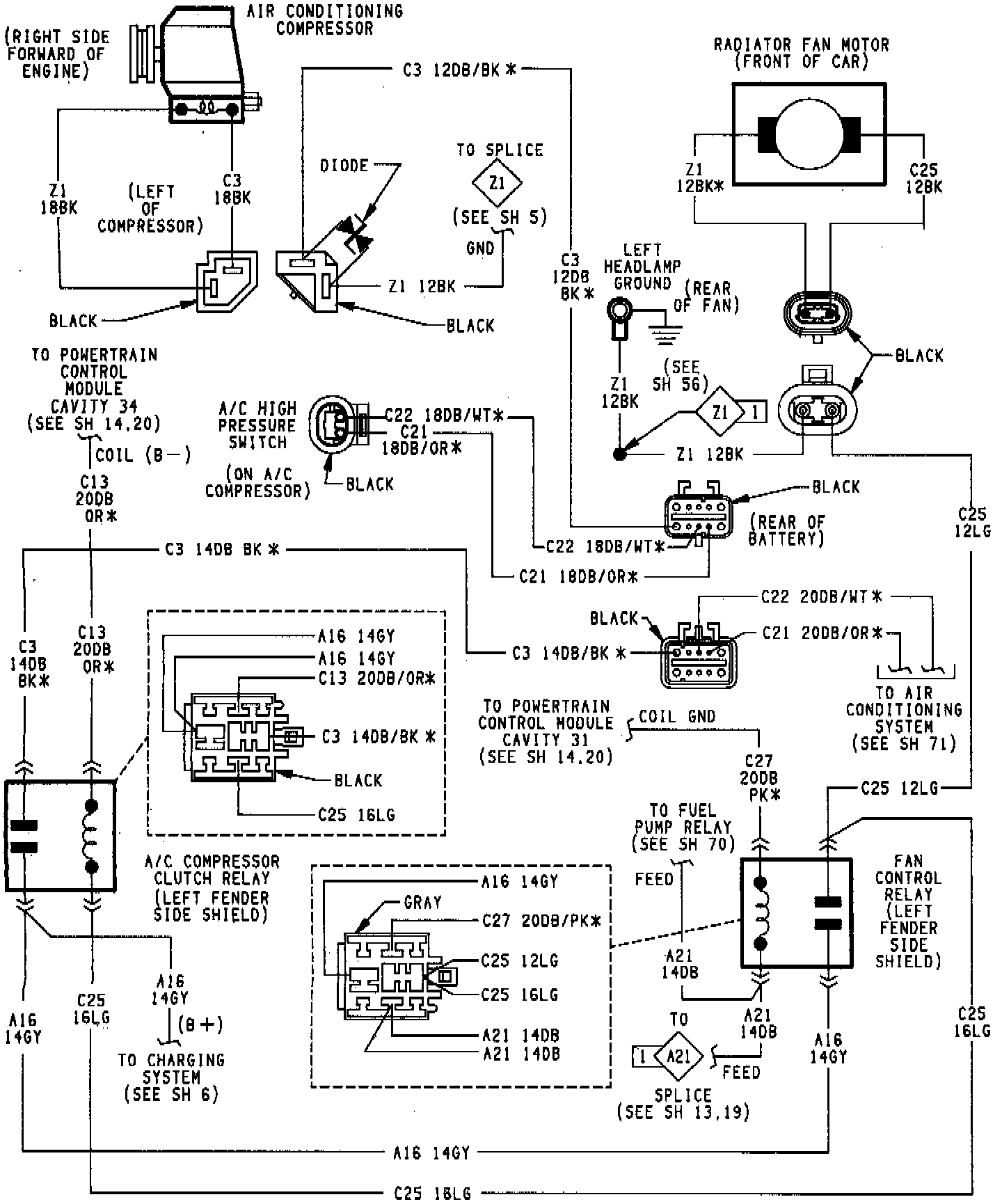

Fan Control System With A/C & Heater:
