Home
>>
Dodge
>>
1994
>>
Shadow L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
>>
EGR Control Solenoid
>>
Diagrams
>>
Connector Views
Connector Views

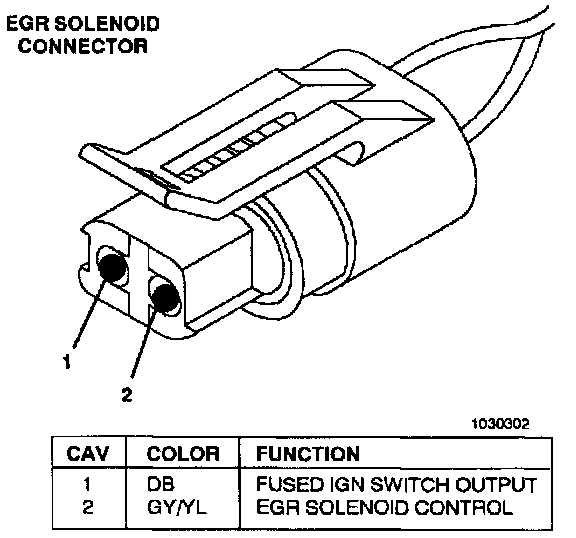

EGR Solenoid Connector:
