Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1994
>>
Shadow Convertible L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>

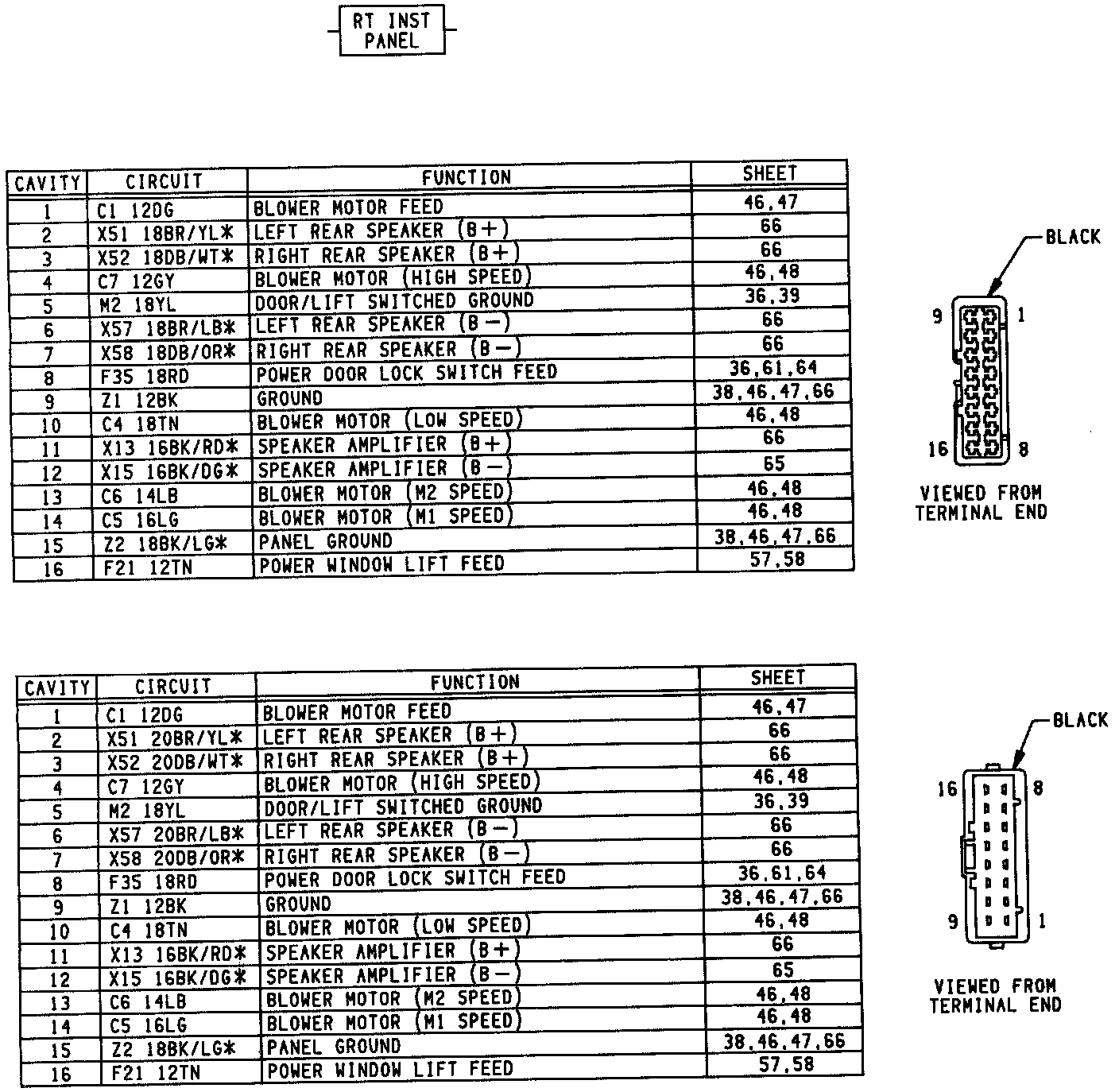

Right Instrument Panel Interface
Right Instrument Panel Interface
Right Instrument Panel Interface:
