Shadow Convertible L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
>>
Connector Views
Connector Views

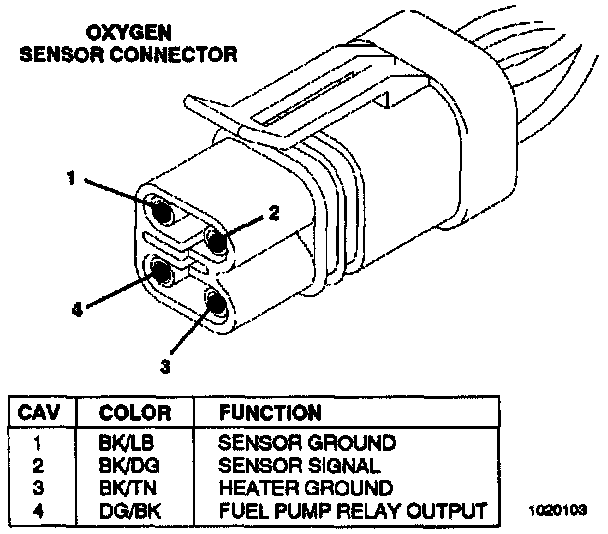

O2S Connector:
