Dodge
>>
1994
>>
Shadow Convertible L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

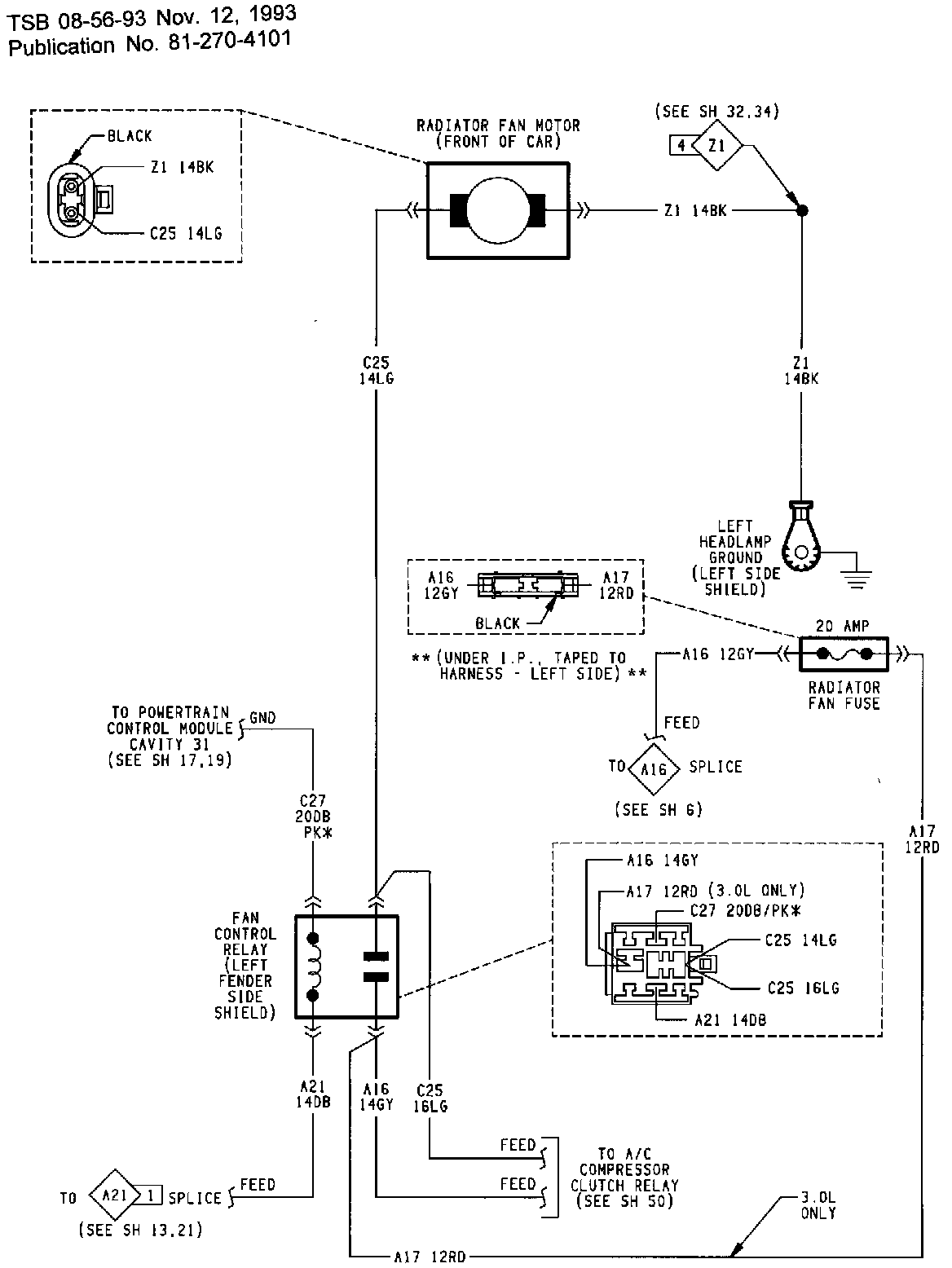

Radiator Cooling Fan Motor
>>
Without Air Conditioning
Without Air Conditioning
Fan Control With Heater System:
