Electrical Diagrams

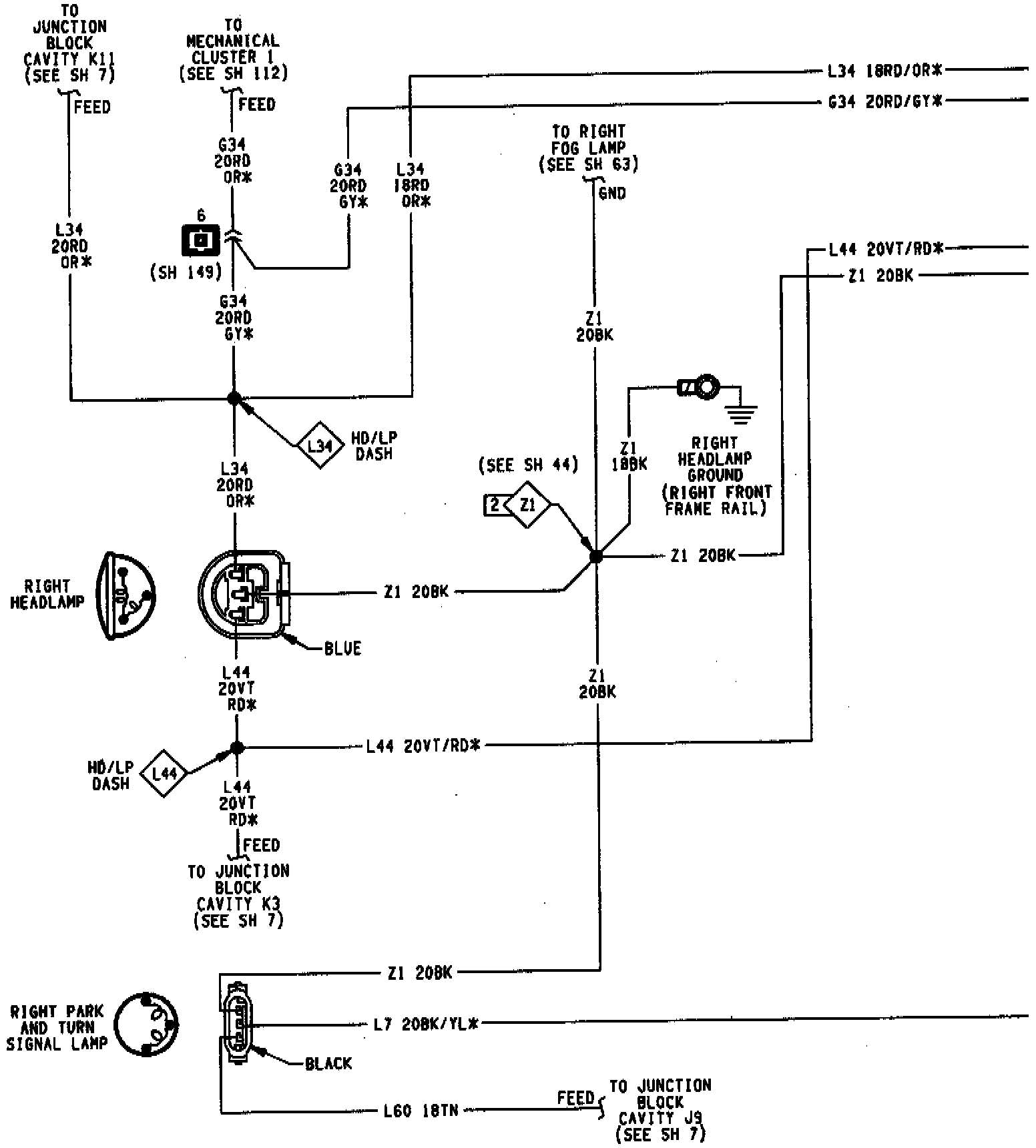

Front End Lighting With Daytime Running Lamps:

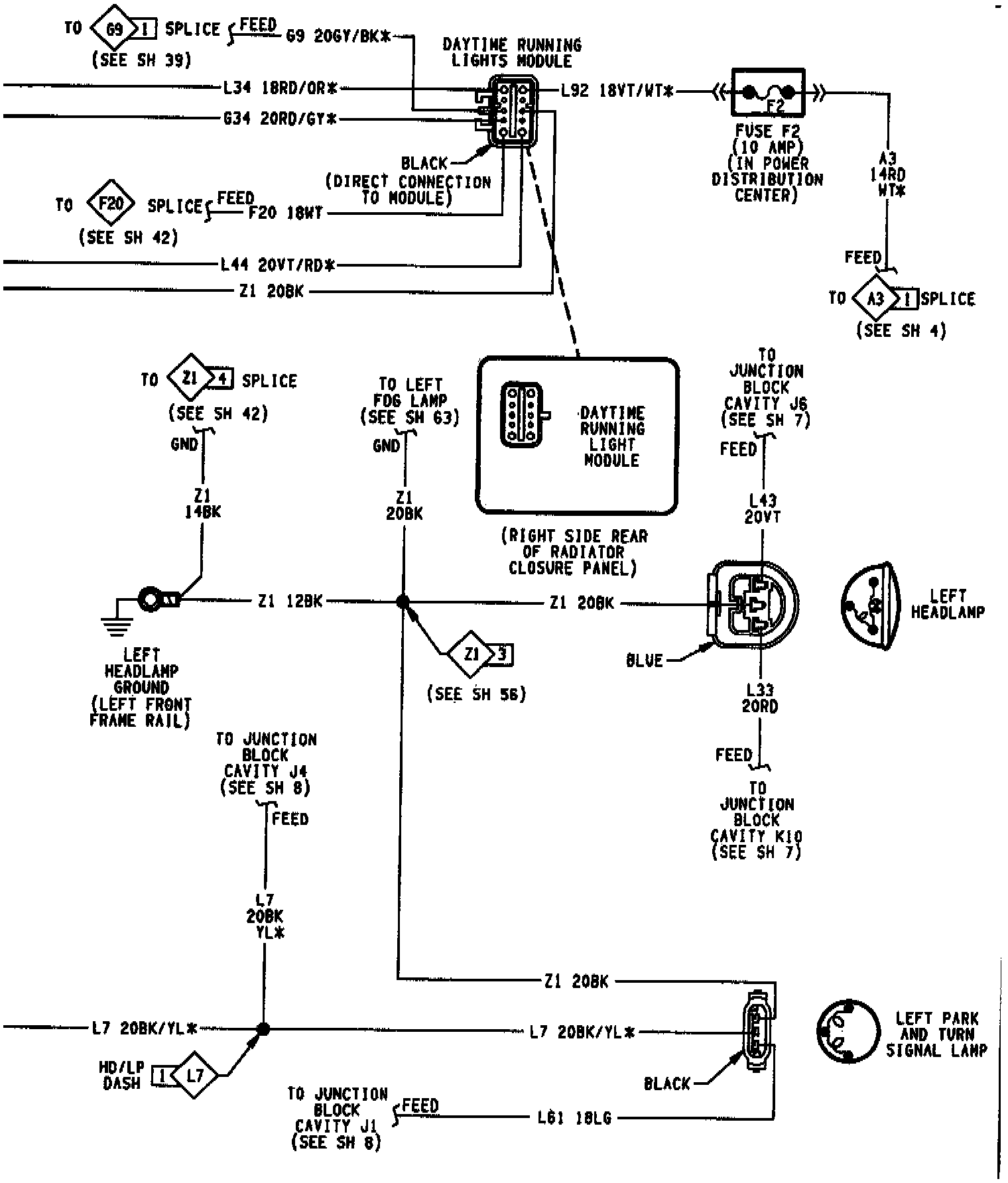

Front End Lighting With Daytime Running Lamps:
