Home >> Dodge >> 1994 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Test 109A Inoperative Wiper Wash Function >> Part 1 of 2

Part 1 of 2

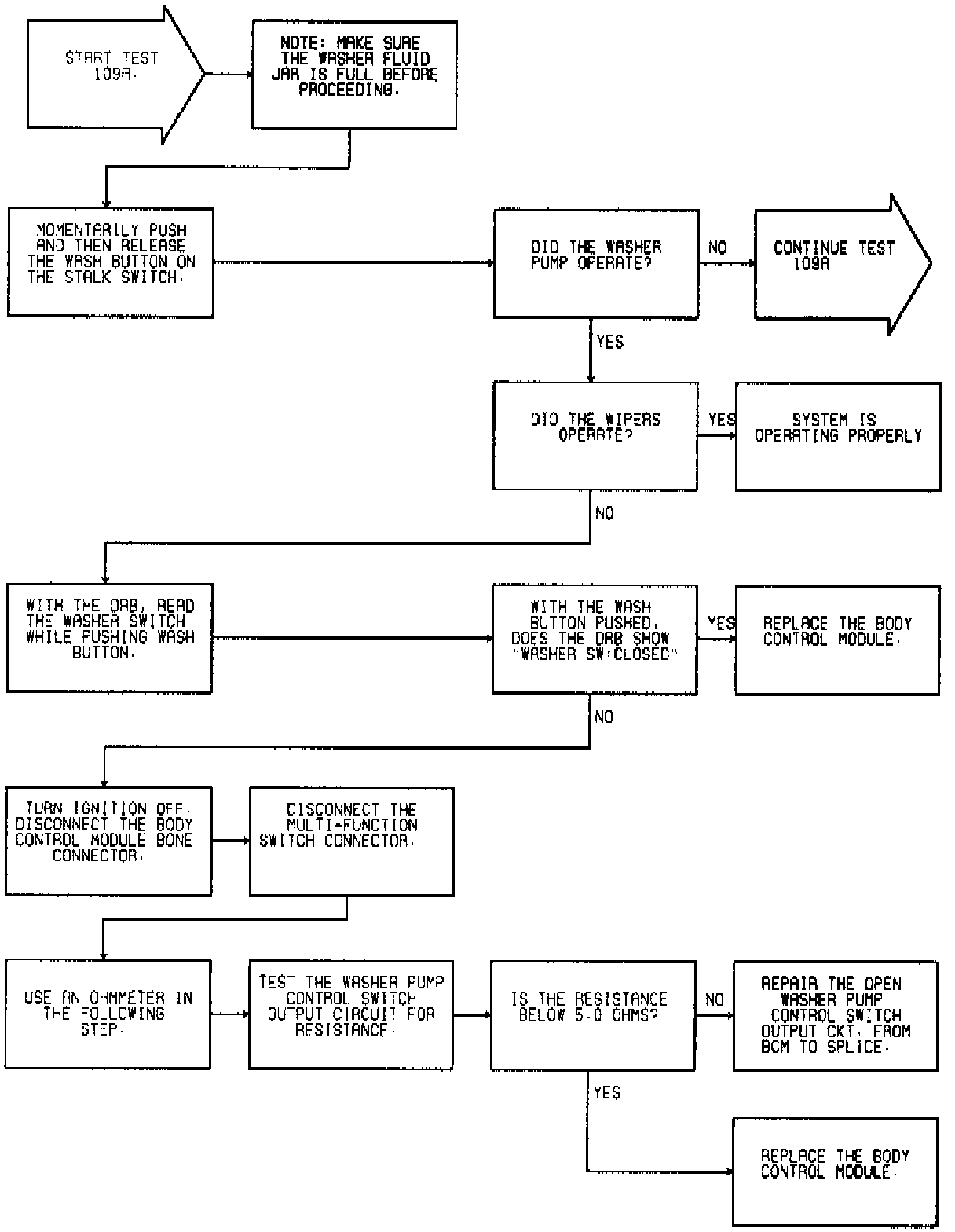

Fig.37 Inoperative Wiper Wash Function Part 1 of 2:
