Electrical Diagrams
Electrical Diagrams

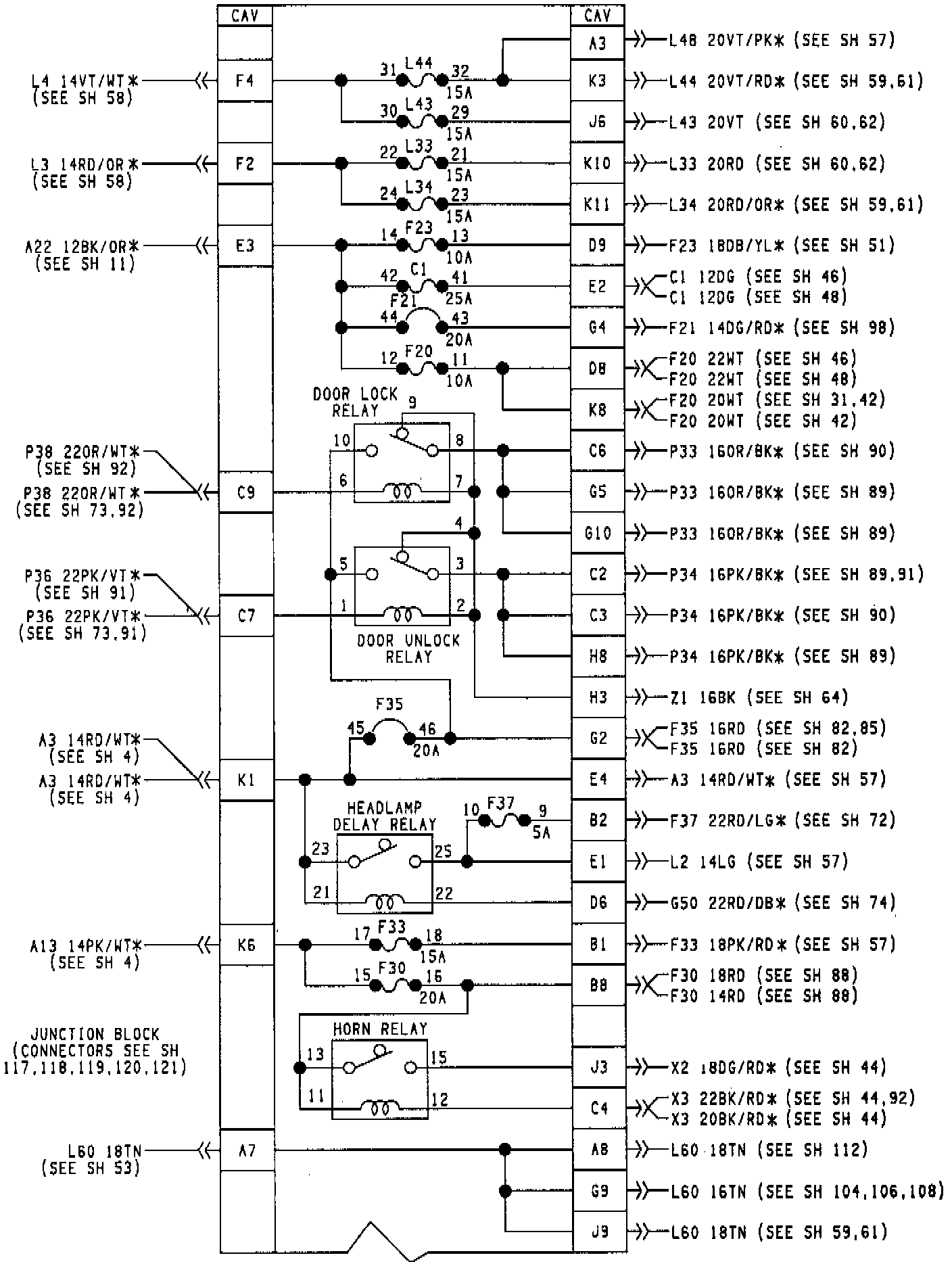

Junction Block Internal Circuitry:

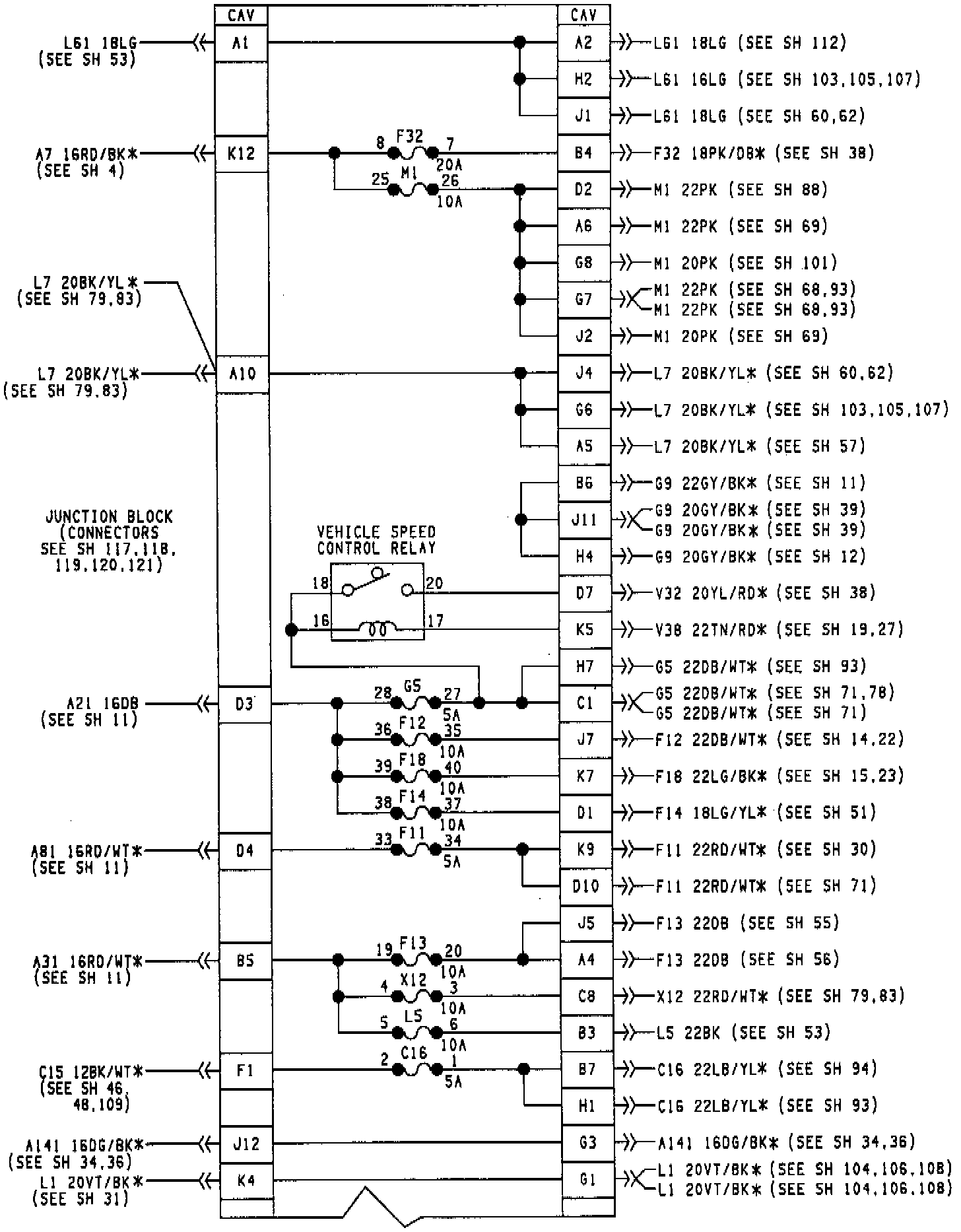

Junction Block Internal Circuitry:
