Instrument Panel Circuit Board
Instrument Panel Circuit Board

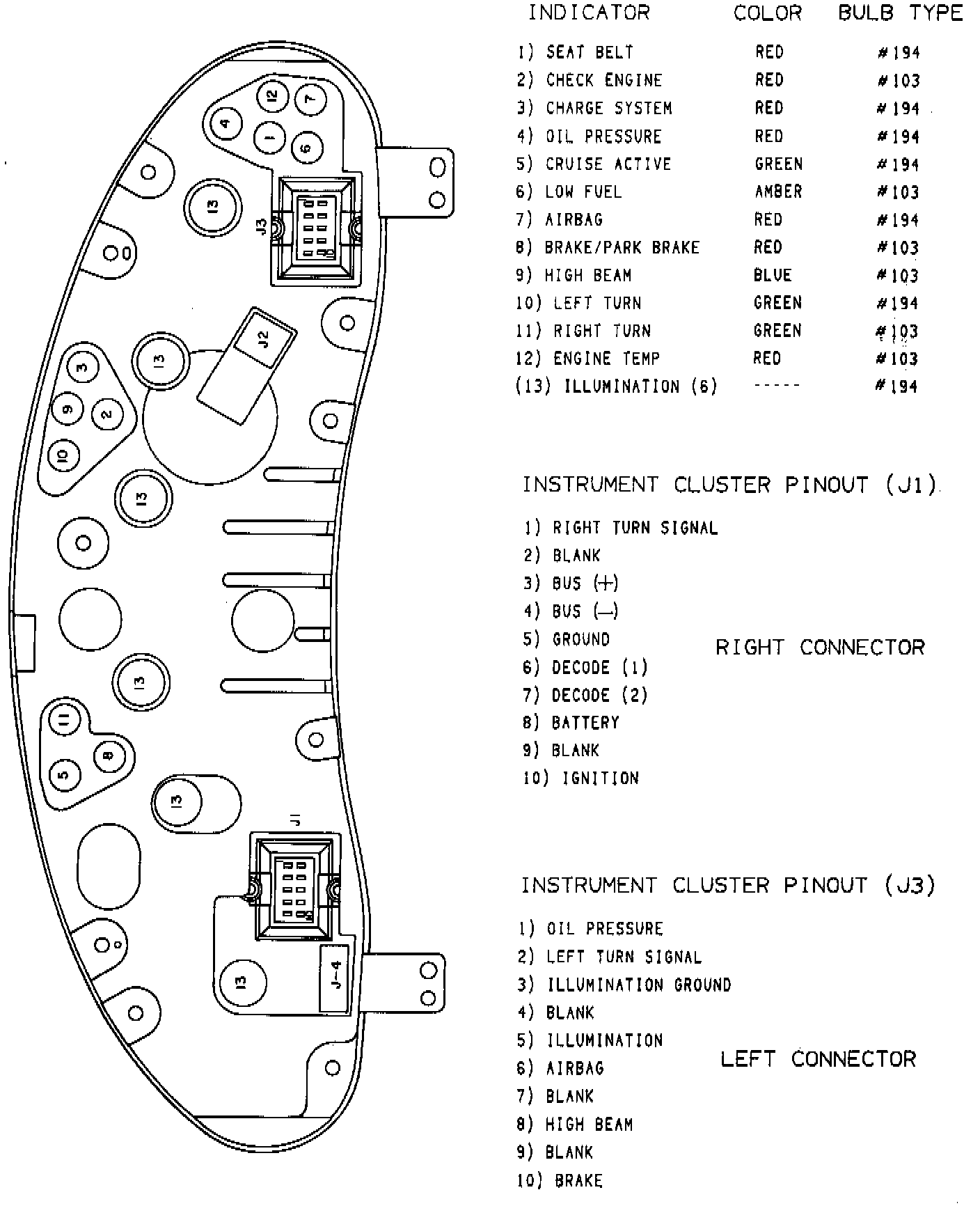

Mechanical Cluster 2 Printed Circuit Board:
