Home >> Dodge >> 1994 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Air Bag Systems >> System Diagram >> Wiring Diagrams >> Part 2 of 2

Part 2 of 2

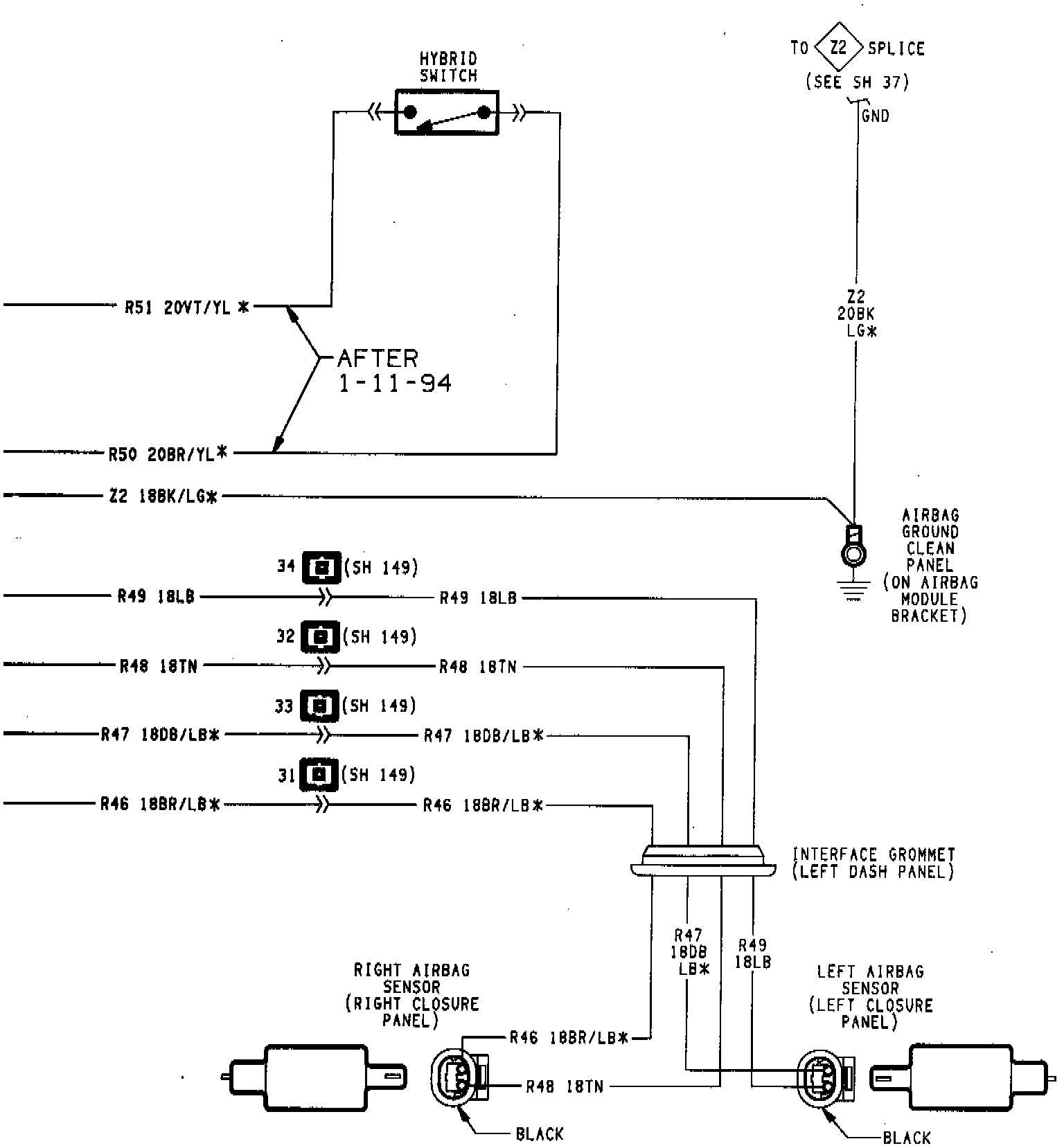

Airbag System:
