Home
>>
Dodge
>>
1994
>>
Intrepid V6-201 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

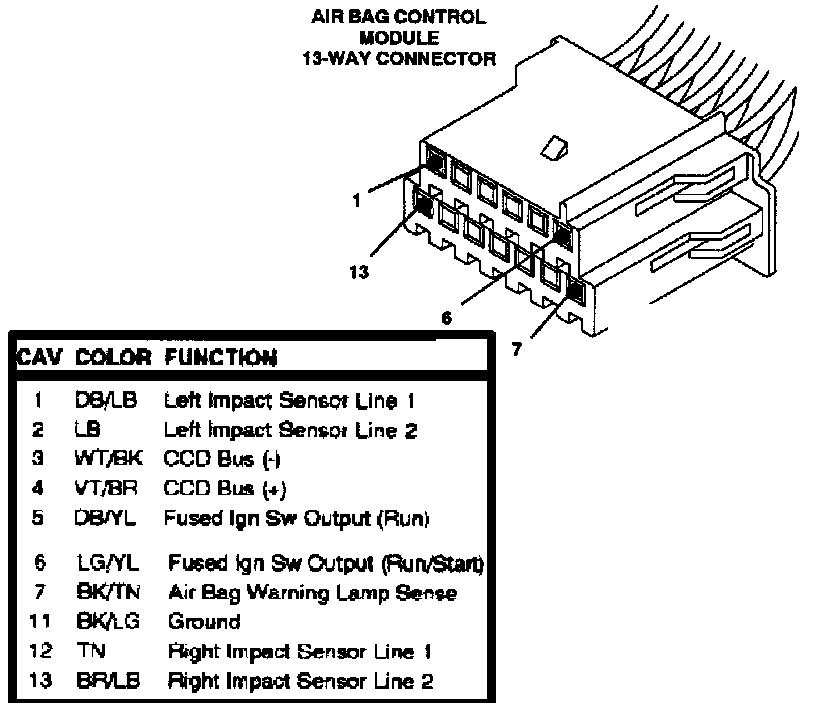

Air Bag Control Module
>>
13-Way Connector
>>
Early Model Year
Early Model Year
Air Bag Control Module Connector:
