Dodge
>>
1994
>>
Intrepid V6-201 3.3L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

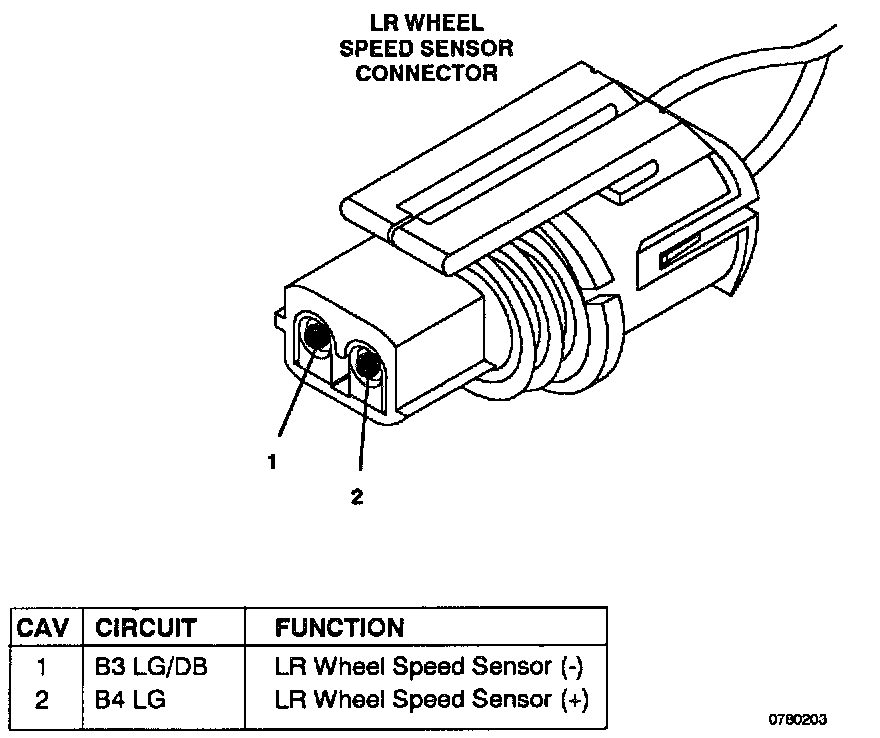

Left Rear Wheel Speed Sensor Connector:

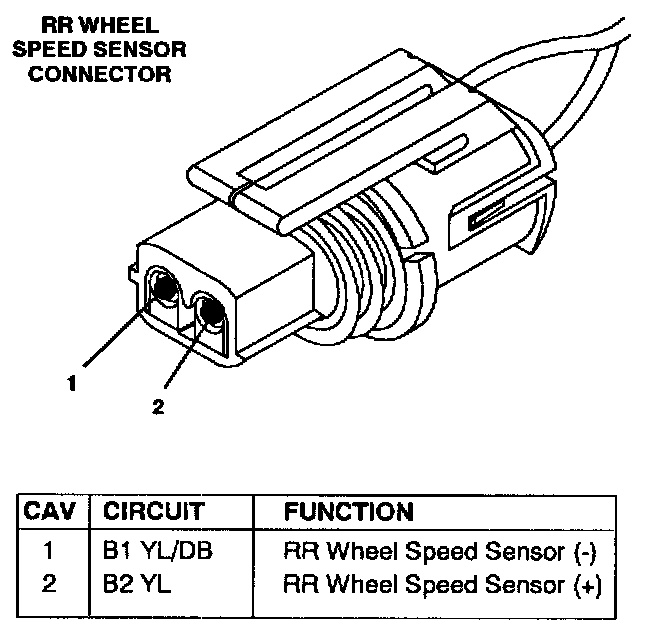

Right Rear Wheel Speed Sensor Connector:
