Home
>>
Dodge
>>
1994
>>
Intrepid V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Instrument Cluster
>>
62A Open Panel Lamps Driver Circuit
62A Open Panel Lamps Driver Circuit

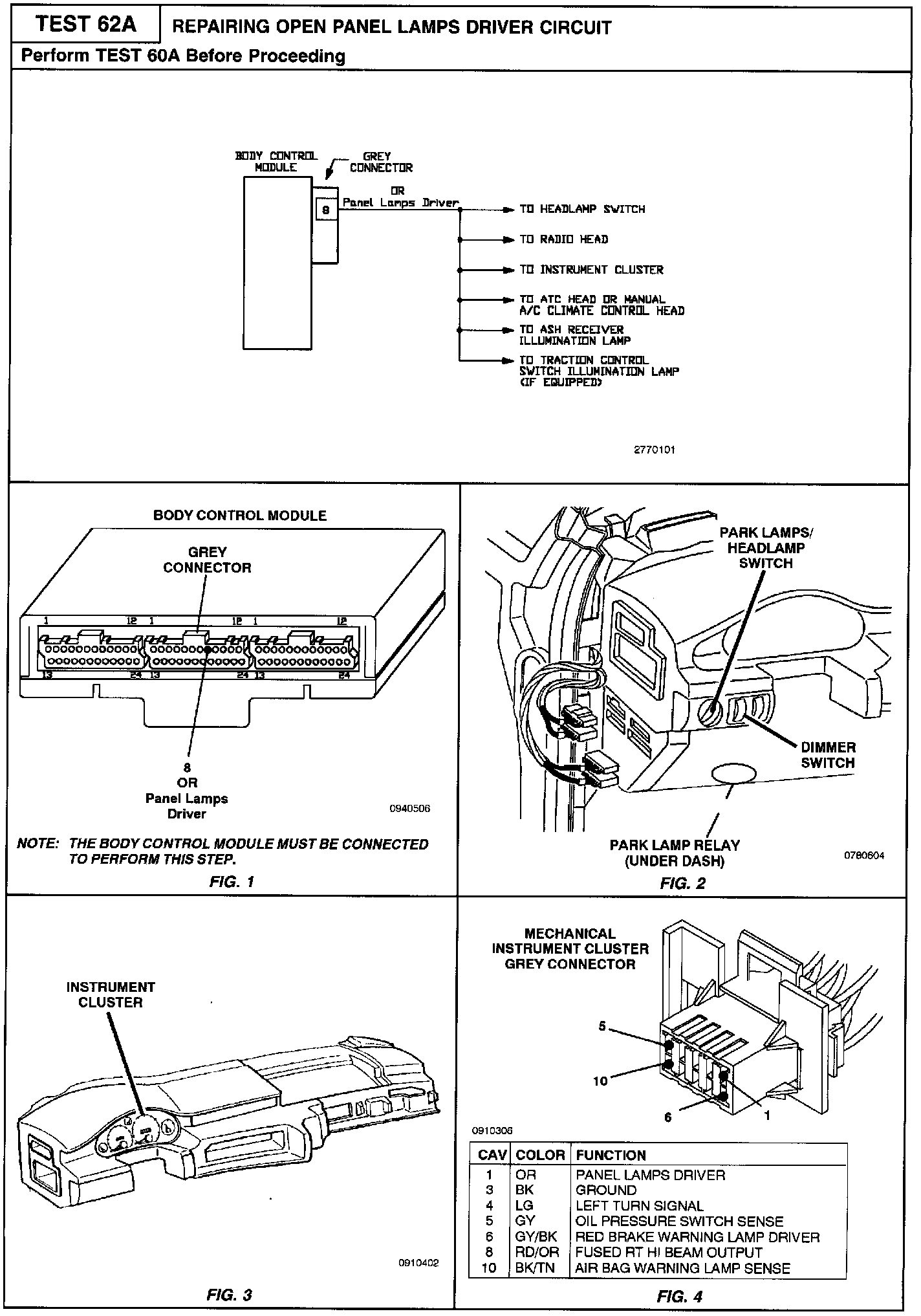

Related Images:

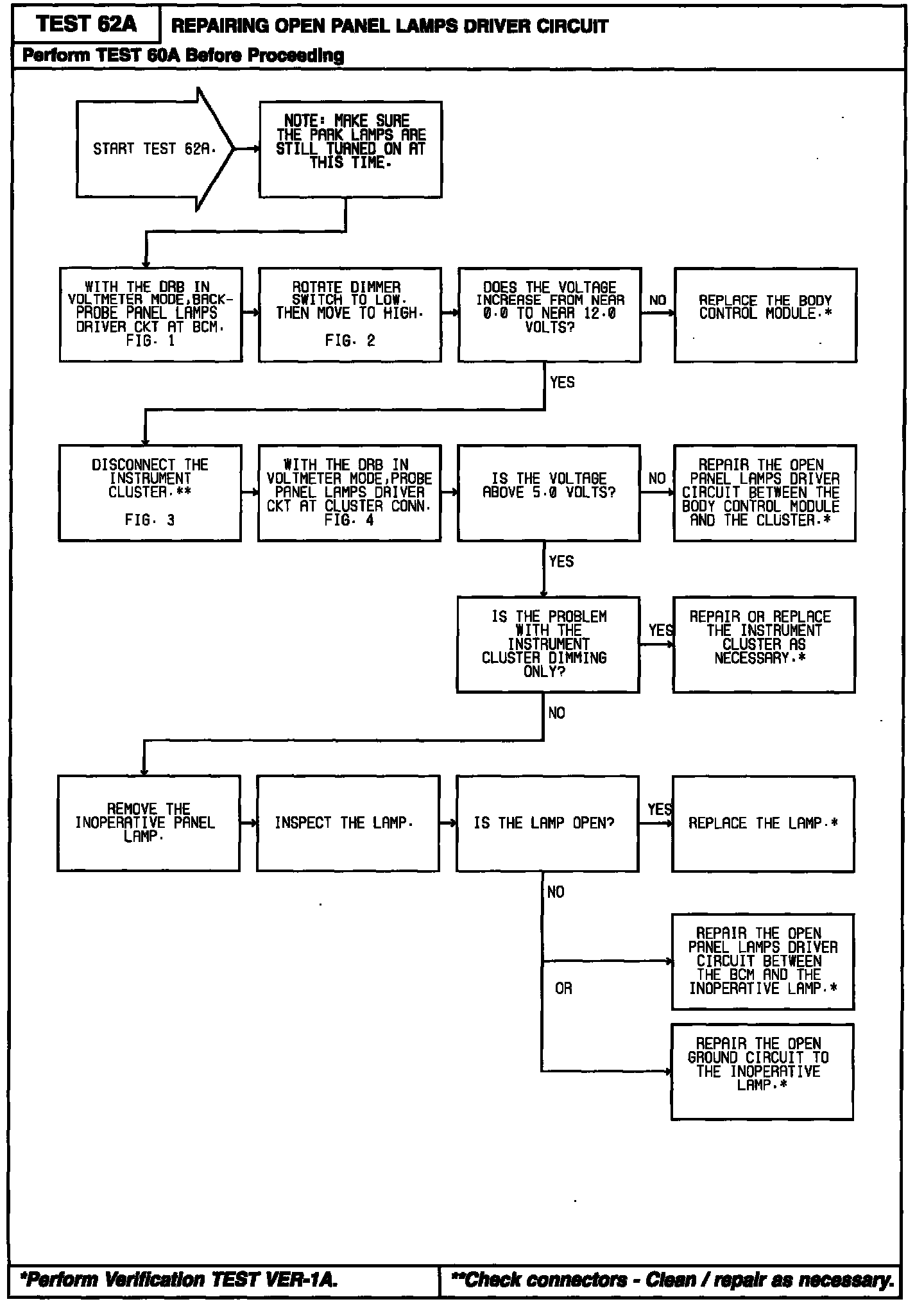

Diagnostic Chart:
