Intrepid V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Heating and Air Conditioning
>>
Automatic Temperature Control (ATC) HVAC System
>>
9C Aspirator Motor Circuit

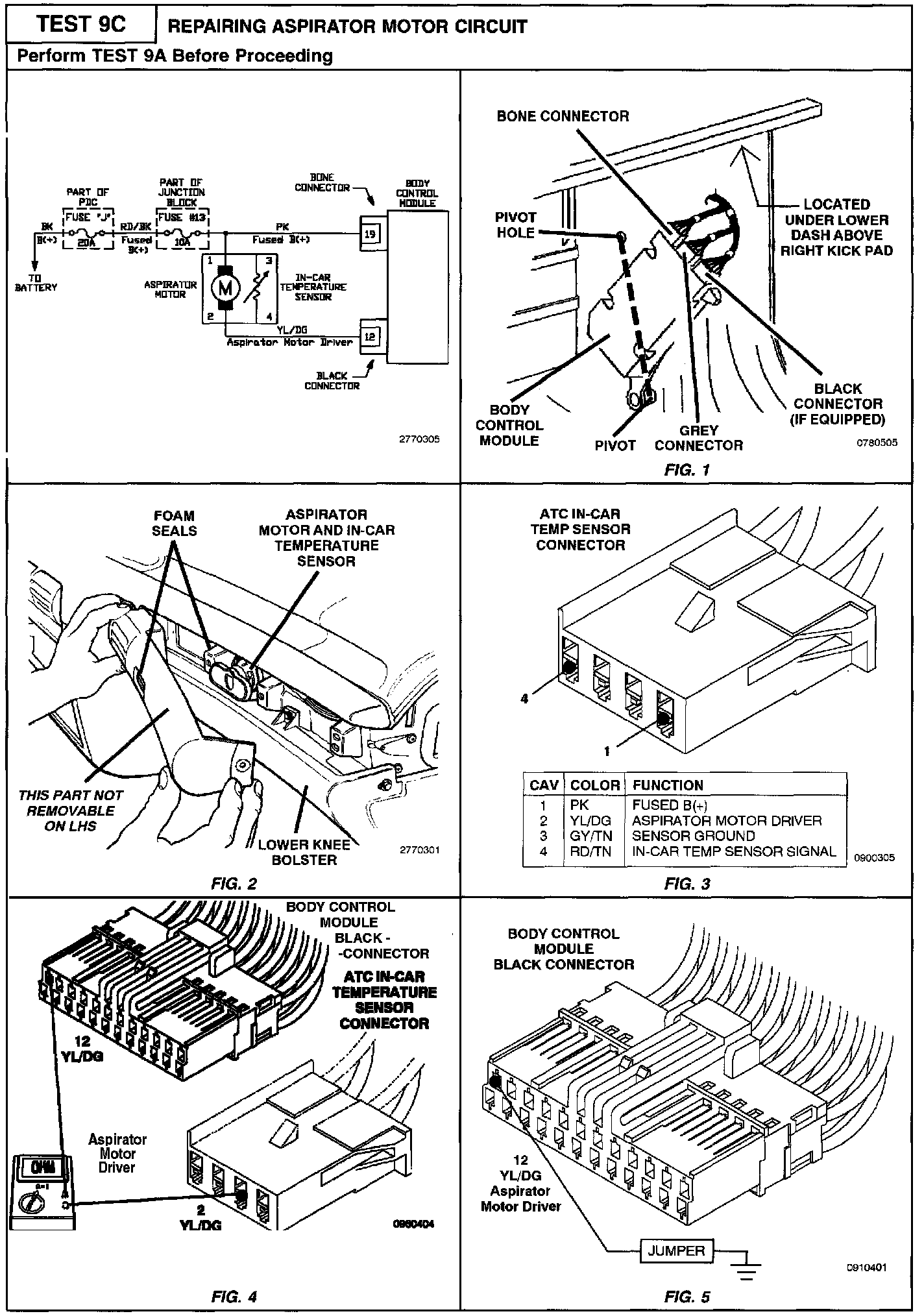

9C Aspirator Motor Circuit
Related Images:

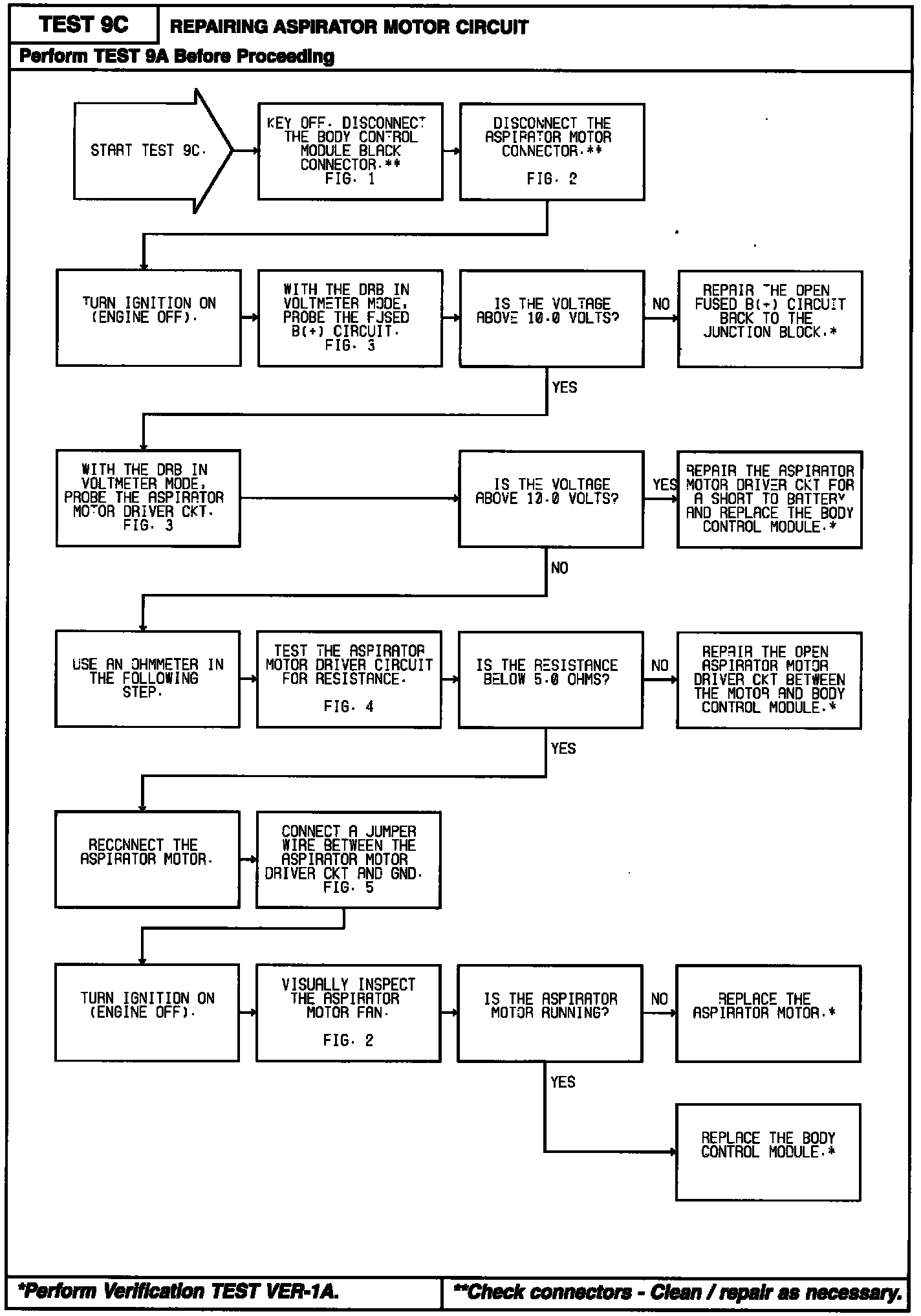

Diagnostic Chart:
