NS-3A Checking the Engine Mechanical Systems

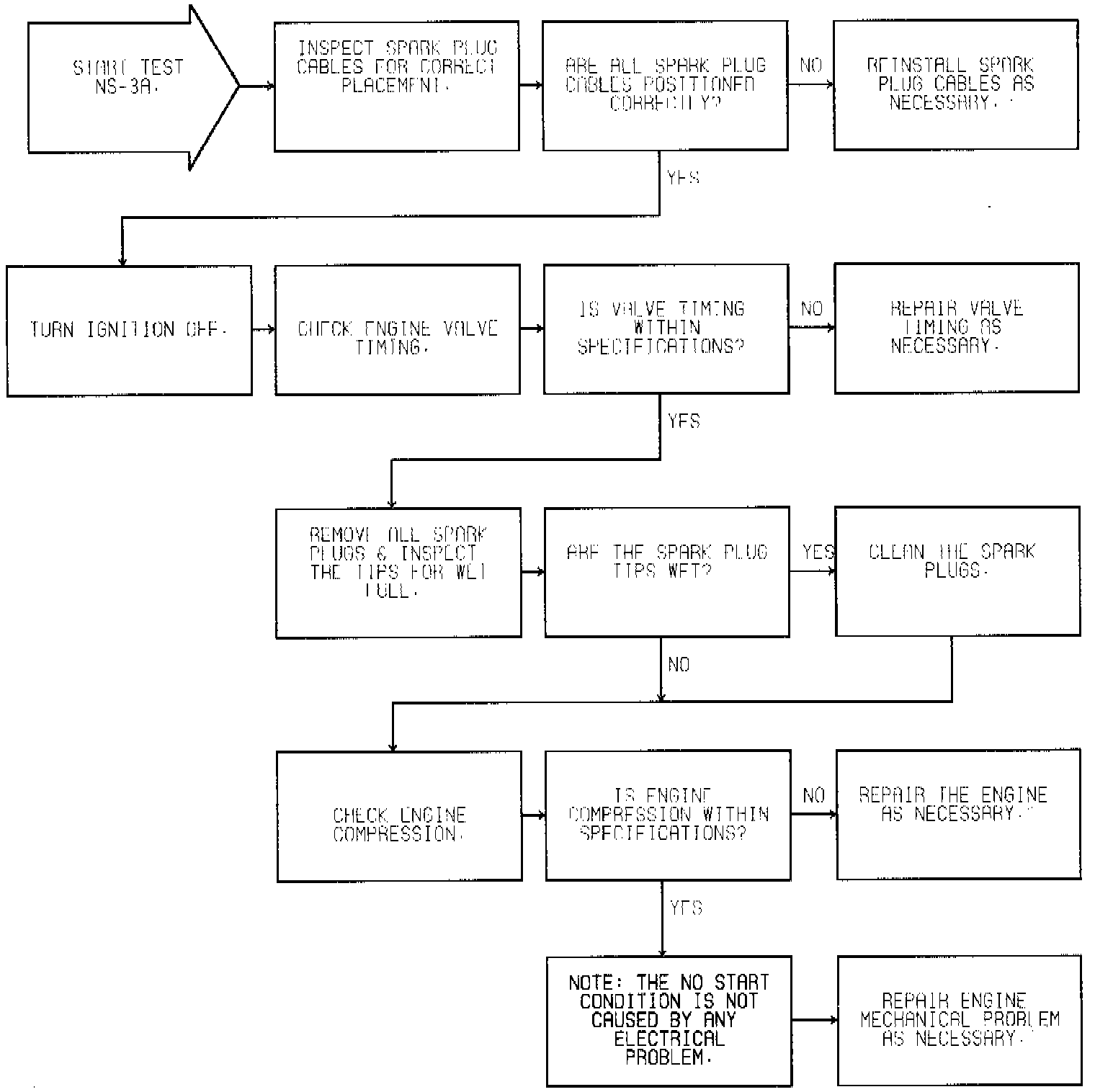

Fig. 45 Test NS-3A: Checking The Engine Mechanical Systems:
