Engine Mount

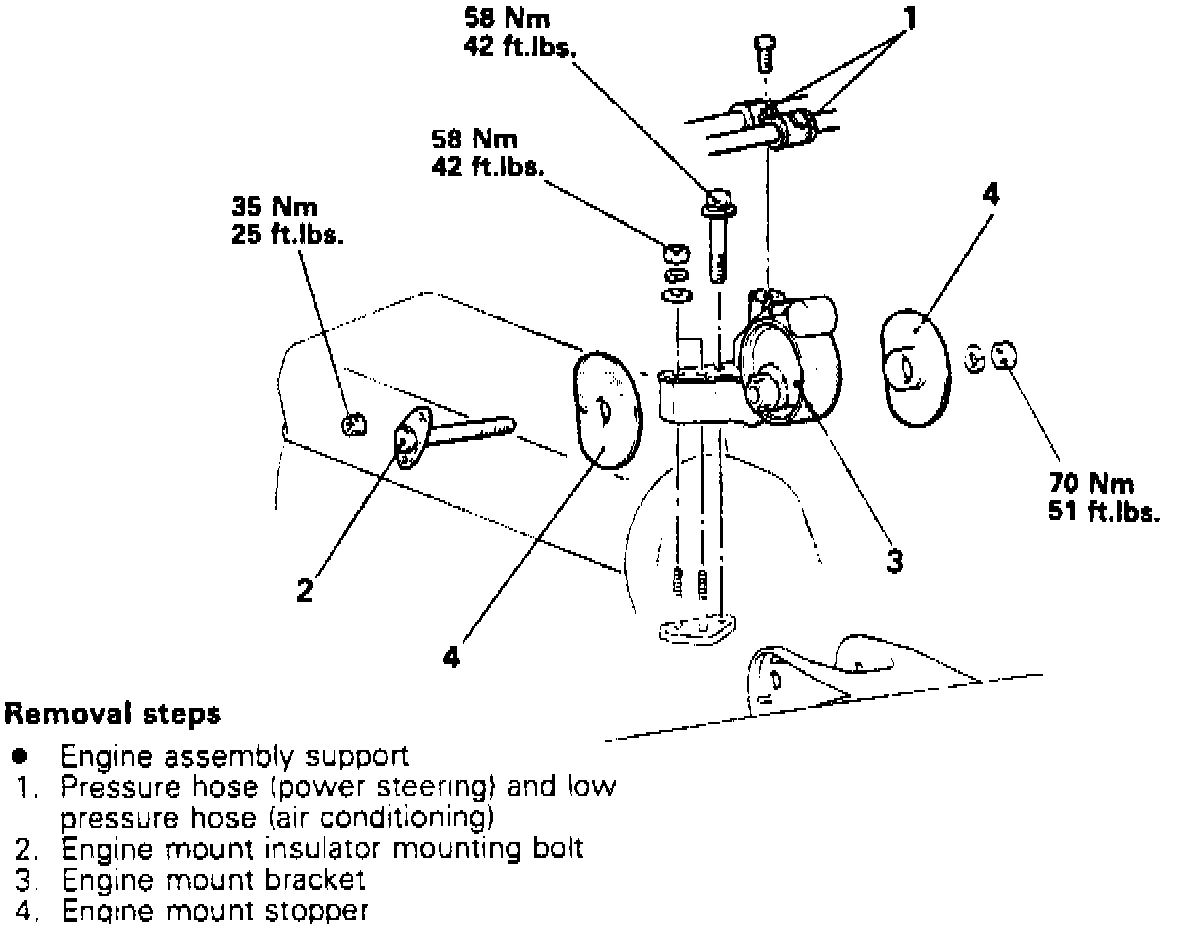

Fig. 2 Engine Mount Replacement:

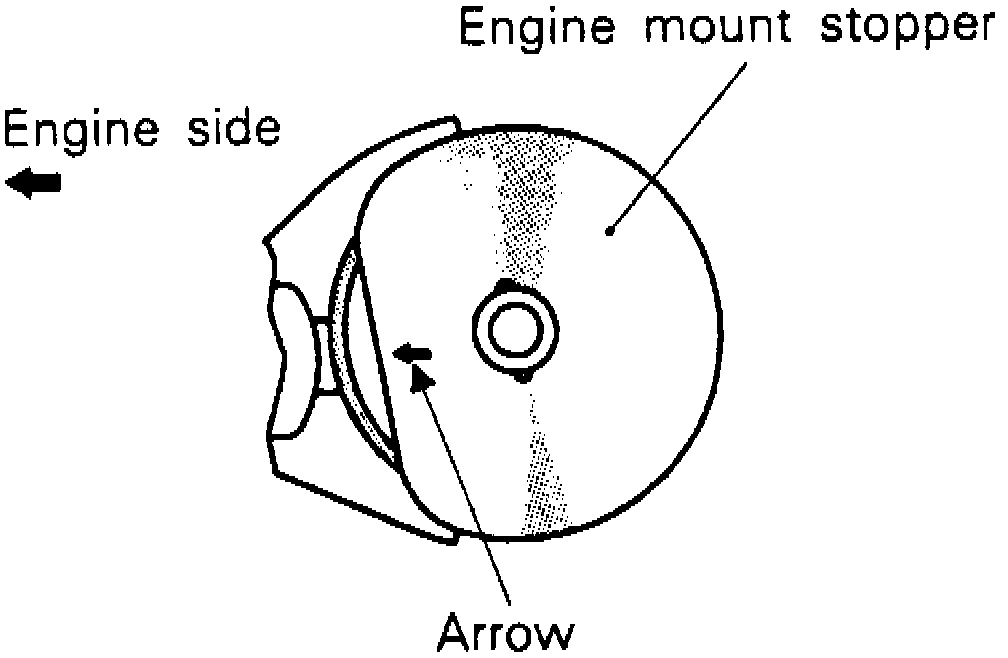

Fig. 3 Engine Mount Stopper Orientation:

ENGINE MOUNT REPLACE
Replace engine mounts in numbered sequence shown in Fig. 2, noting following:
1. Use a block of wood to distribute load when raising engine at oil pan.
2. Check insulators and brackets for damage.
3. Engine mount stopper is properly installed when its arrow mark points at center of engine, Fig. 3.
