Dodge
>>
1994
>>
Colt L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

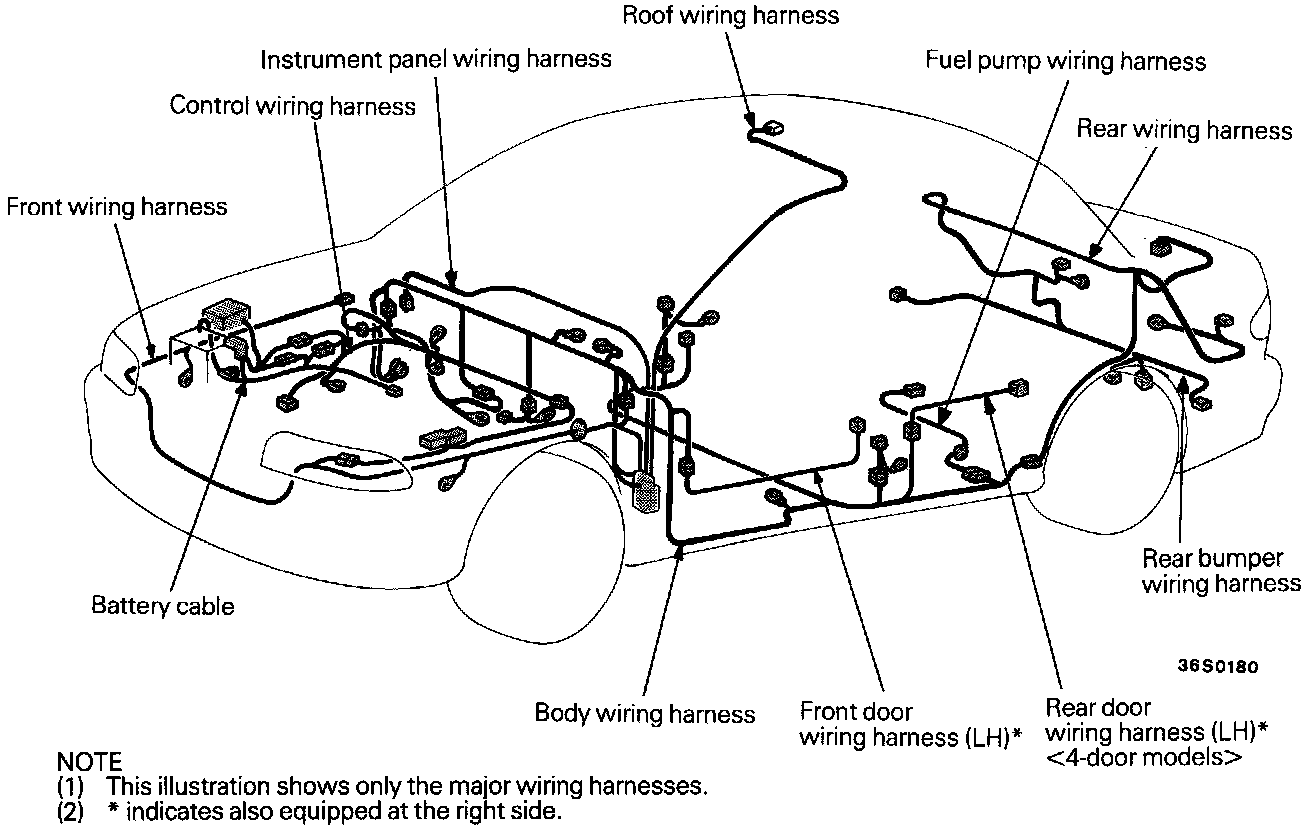

Overall Configuration Harness Diagram
Overall Configuration Harness Diagram
Overall Configuation Diagram:
