Symptom Related Diagnostic Procedures

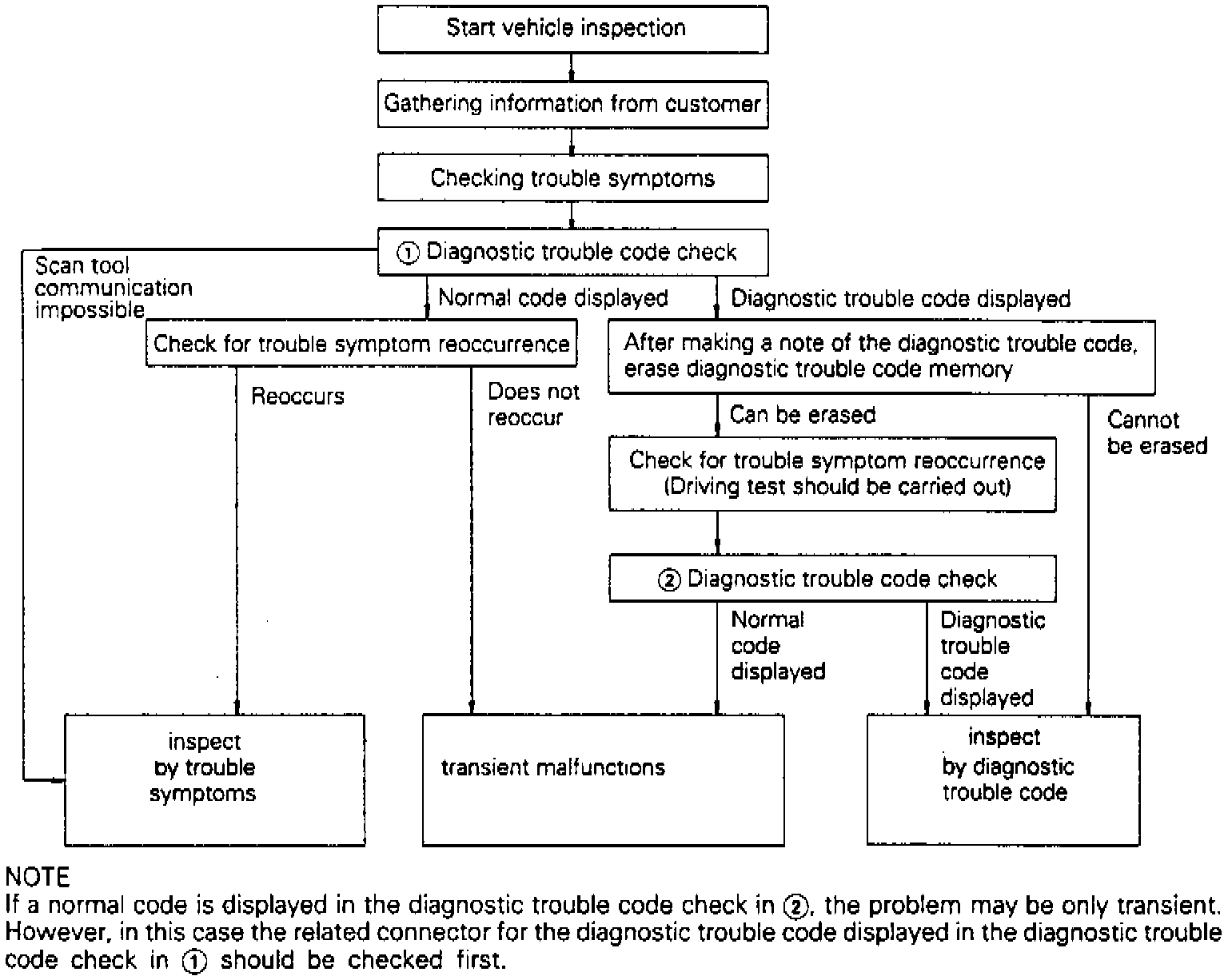

Fig 2 ABS Troubleshooting Chart:

Fig 3 Symptom Troubleshooting Chart 1:

Fig 4 Symptom Troubleshooting Chart 2:

Fig 5 Symptom Troubleshooting Chart 3:

Fig 6 Symptom Troubleshooting Chart 4:

Fig 7 Symptom Troubleshooting Chart 5:

Fig 8 Symptom Troubleshooting Chart 6:

Fig 9 Symptom Troubleshooting Chart 7:

Fig 10 Symptom Troubleshooting Chart 8:
