Transmission Control System

Code No. 59 Occurrence of abnormal vibration

Description

When periodical rotating speed variation of more than 50 rpm is generated in pulse generator A output continuously, it is assumed as occurrence of abnormal vibration, and diagnostic trouble code No. 59 is output.

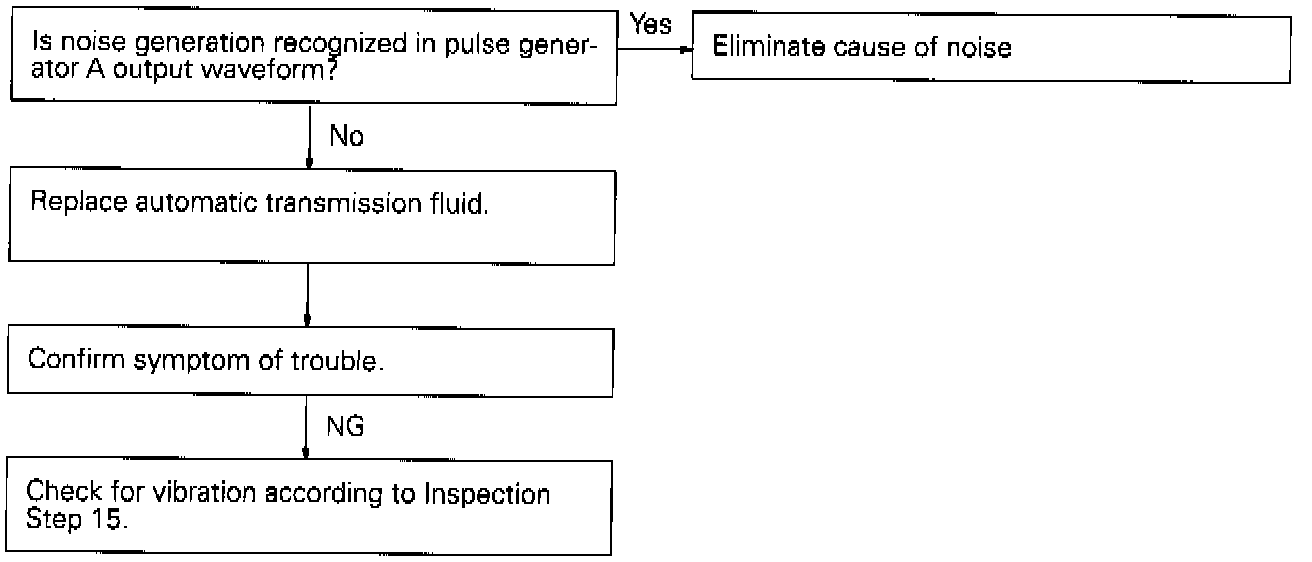

Probable Cause of Trouble

- Noise generated
- Deteriorated automatic transmission fluid
- Occurrence of abnormal vibration
