Lighting Monitor Buzzer <Vehicle For U.S>:

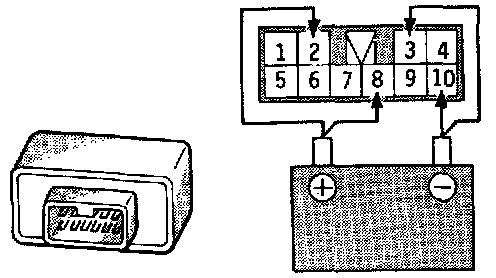

1. Apply battery voltage between the terminals 2, 8 and 10.

2. Check to be sure that the buzzer sounds when terminal 3 is grounded.
