Home
>>
Dodge
>>
1994
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Without Intermittent Wiper System
Without Intermittent Wiper System

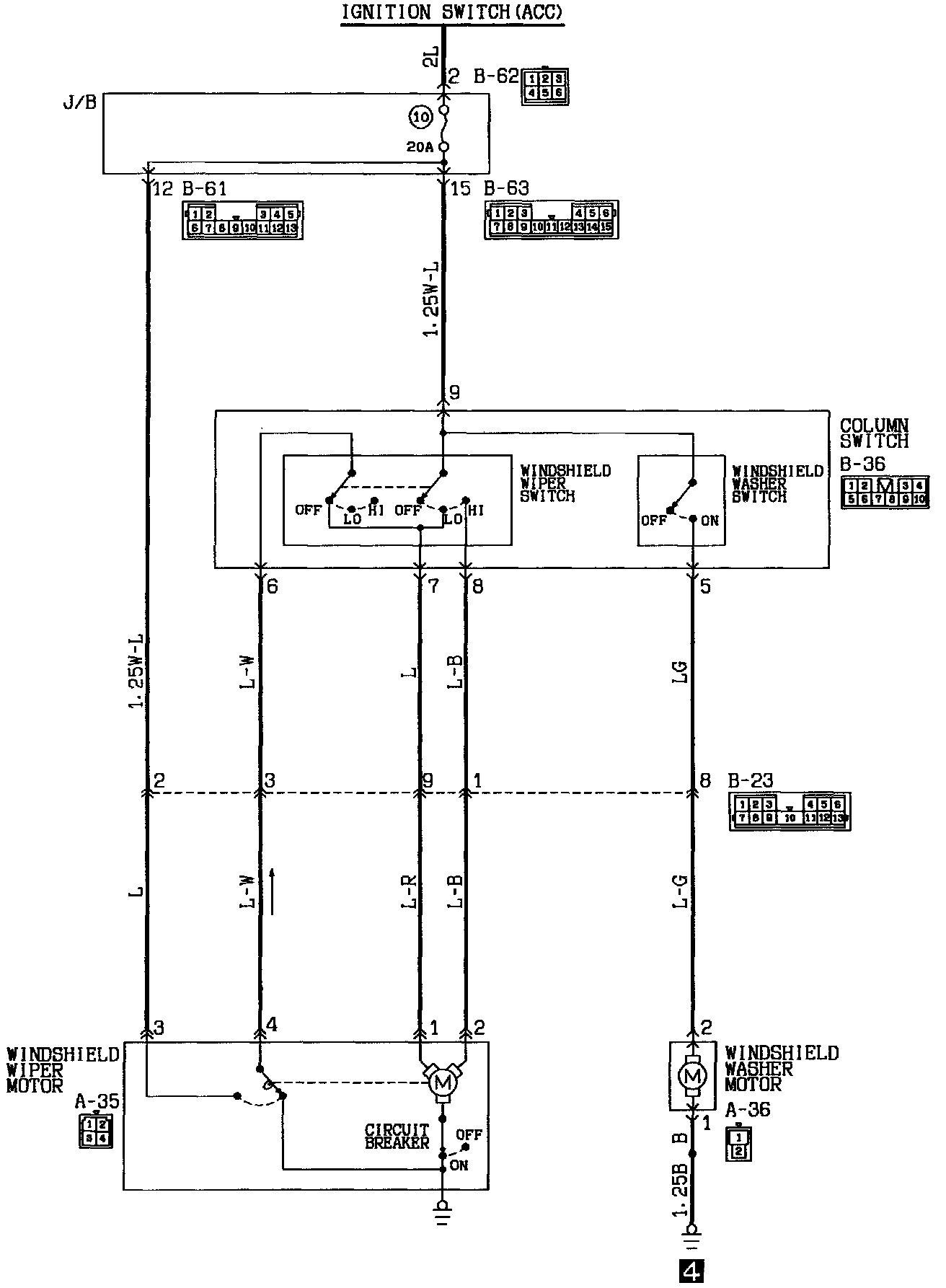

Windshield Wiper And Washer Circuit Diagram <Vehicles Without Intermittent Wiper>:
