Home >> Dodge >> 1994 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Fuse Block >> Part 3 of 6

Part 3 of 6

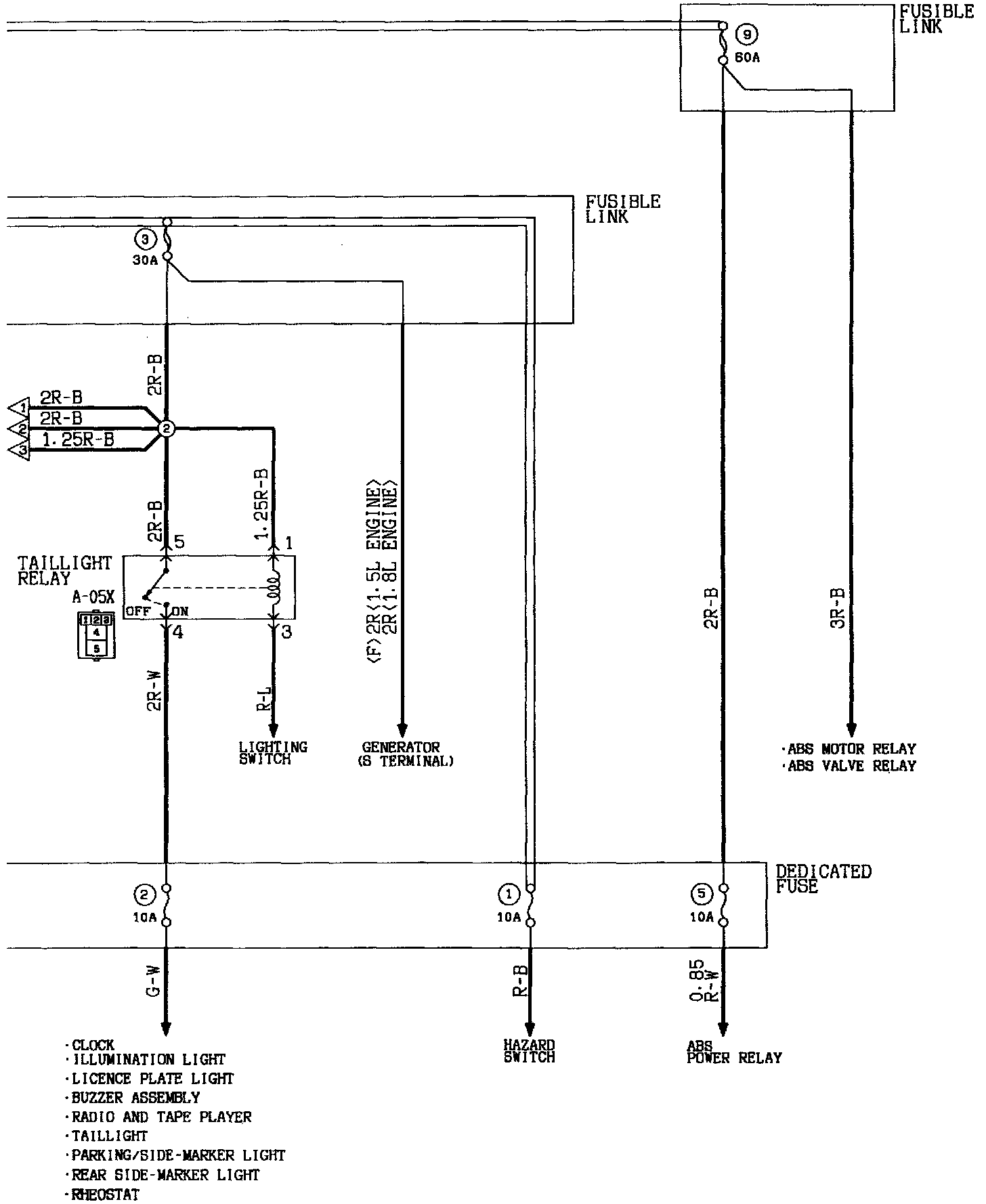

Power Distribution Circuit (Part 3 Of 6):
