ABS Main Relay: Testing and Inspection

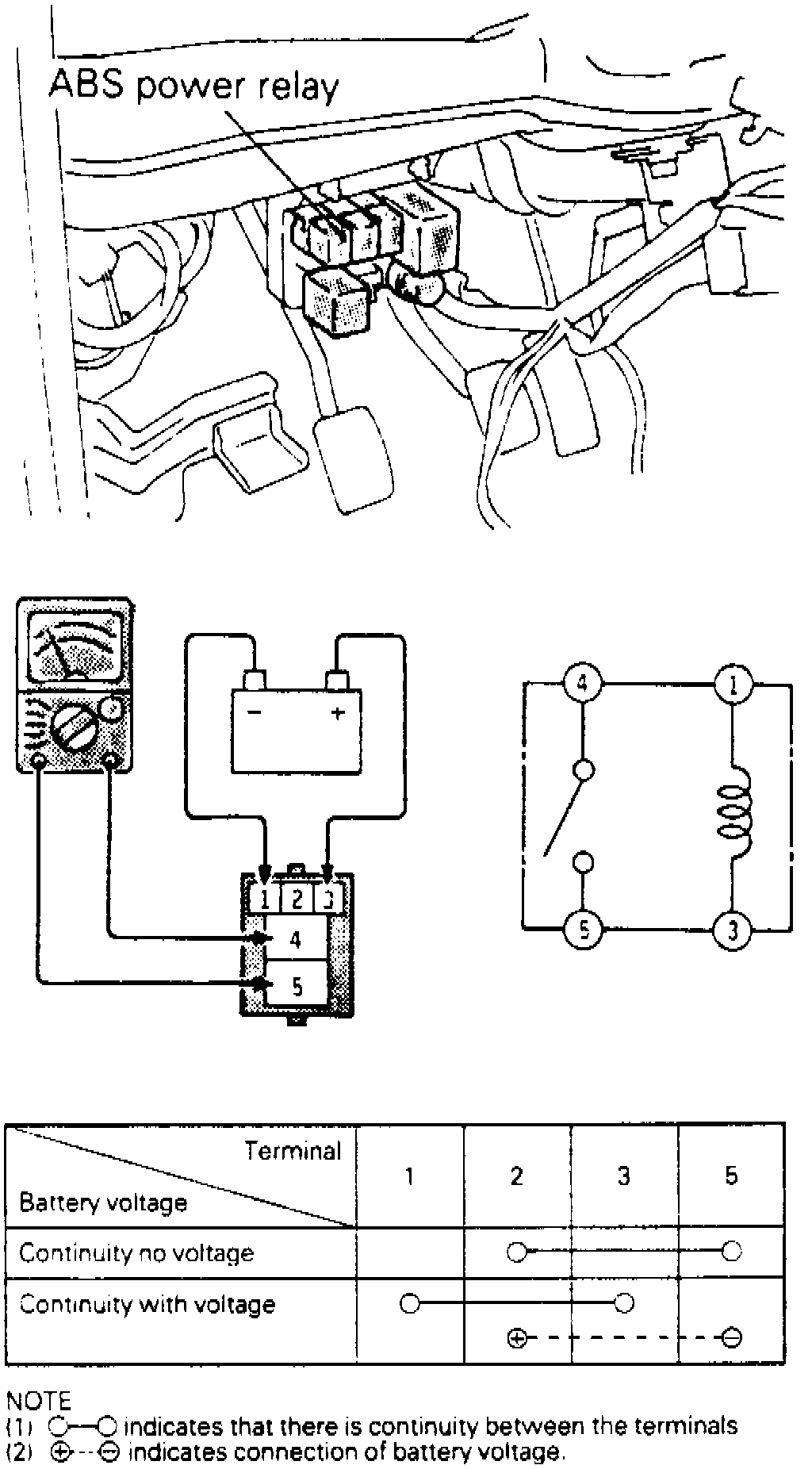

Fig 38 Power Relay Inspection:





Remove the instrument undercover, then the power relay and inspect as shown.
