NTC-6A Checking MAP Sensor Calibration
NTC-6A Checking MAP Sensor Calibration

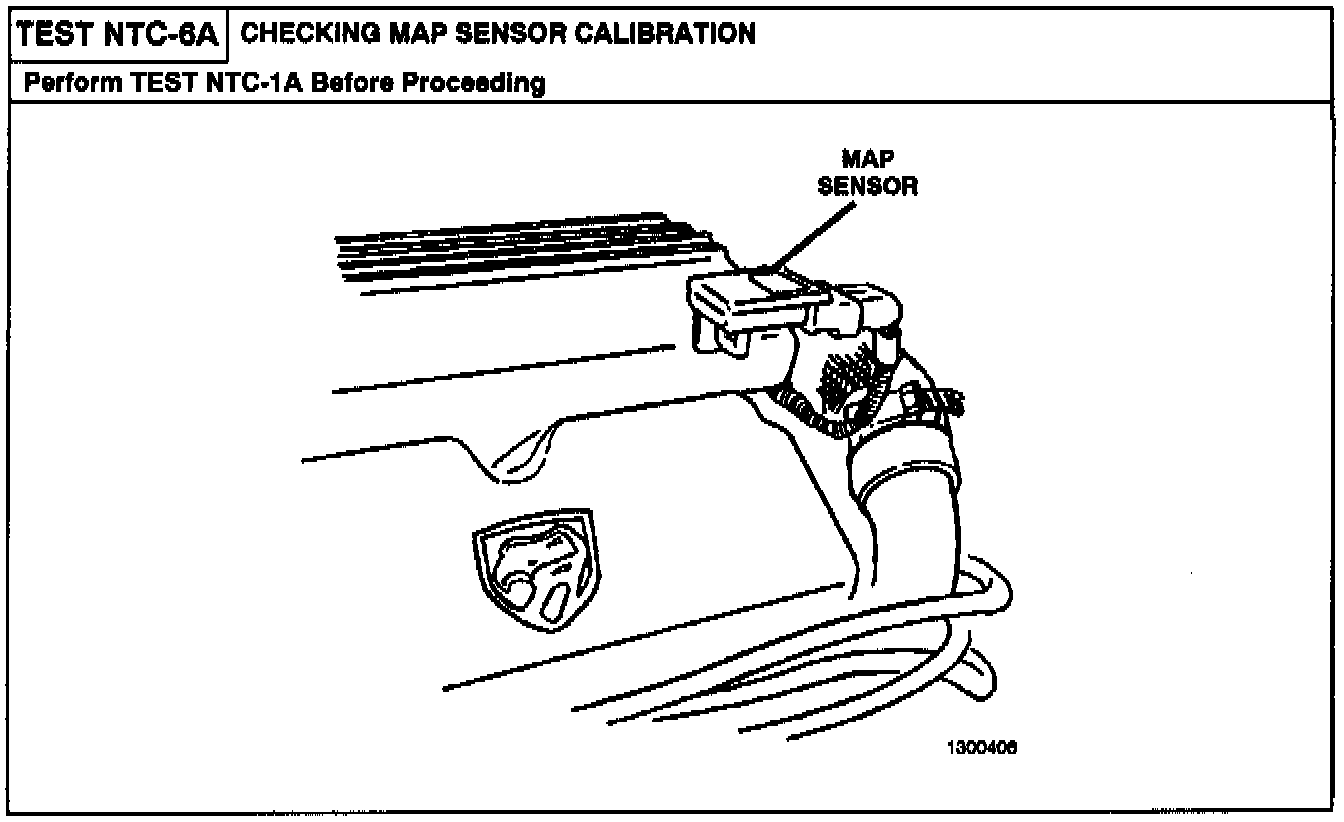

Related Images:

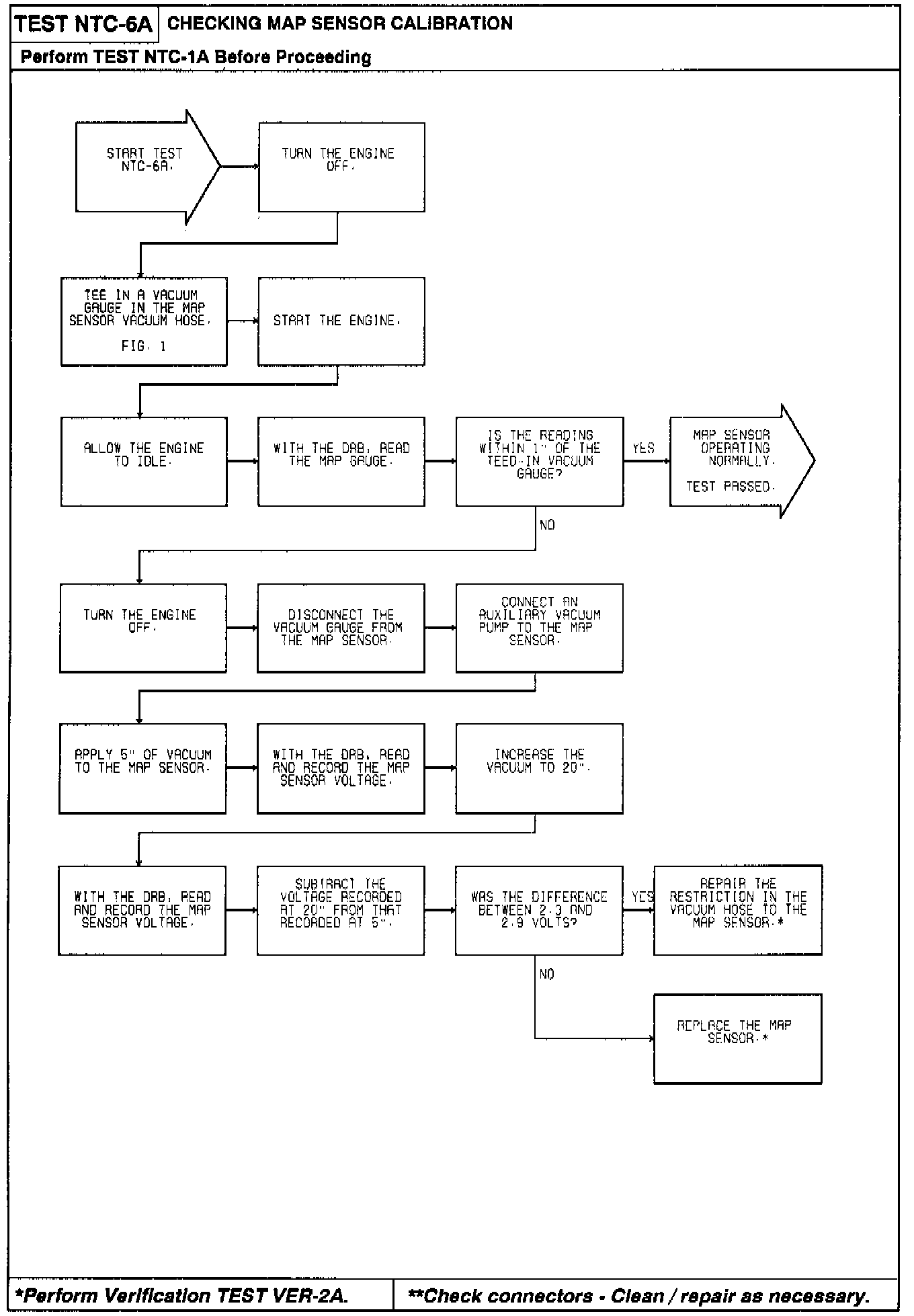

Diagnostic Chart:
