Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1993
>>
Viper V10-488 8.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
System Diagram
System Diagram

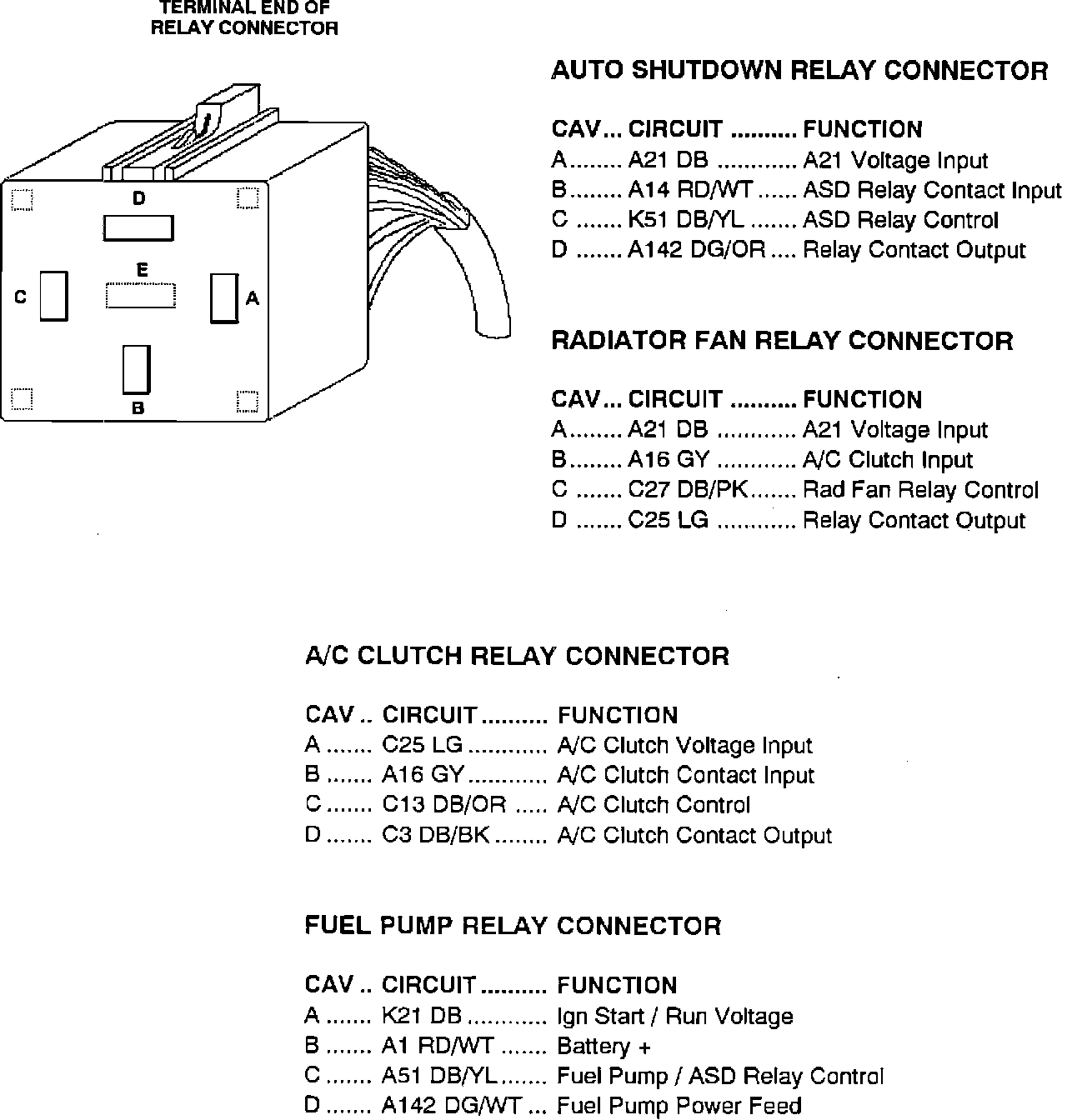

Relay Connector ID:
