Dodge
>>
1993
>>
Viper V10-488 8.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
Bulkhead Disconnect
Bulkhead Disconnect

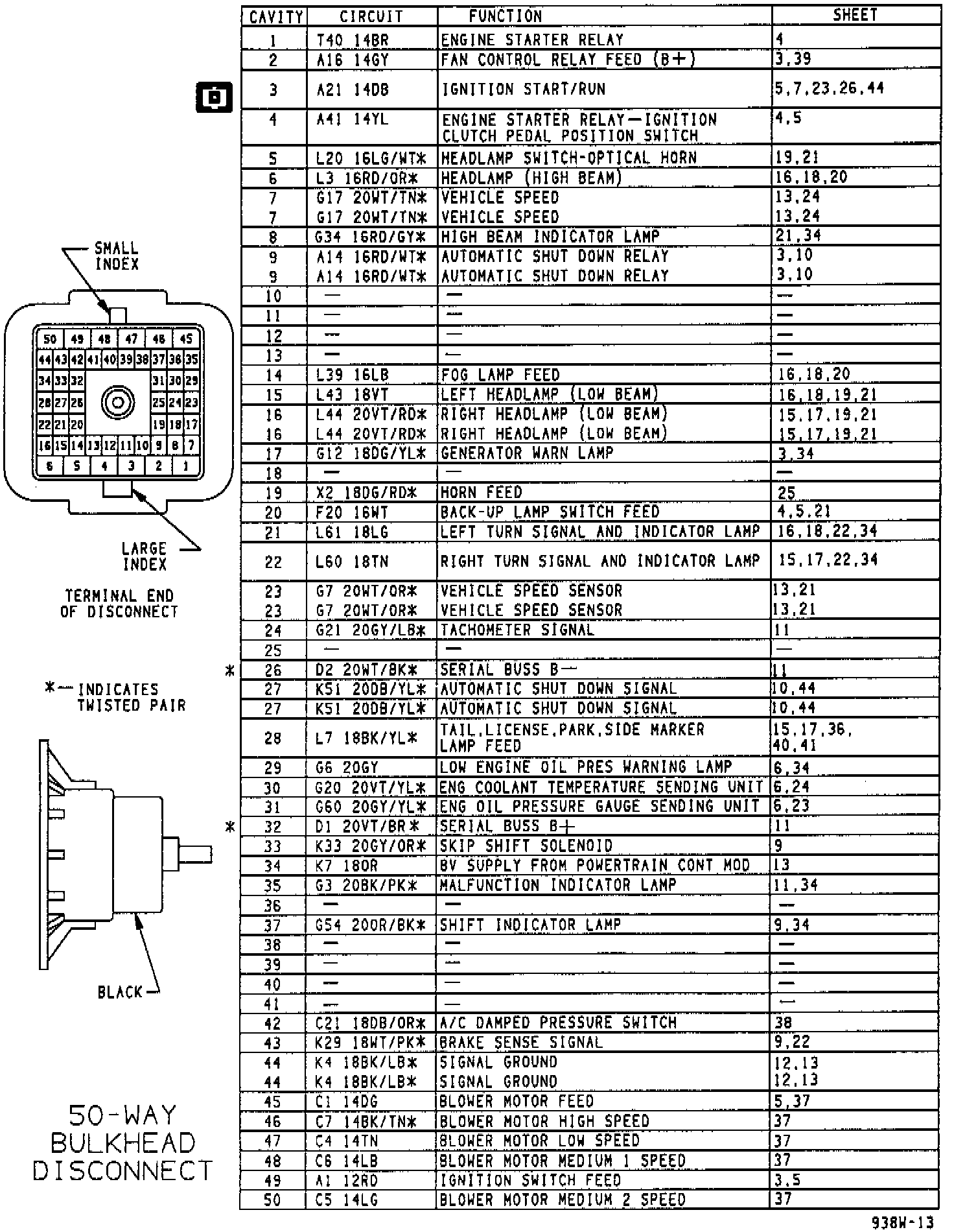

50-Way Bulkhead Disconnect:

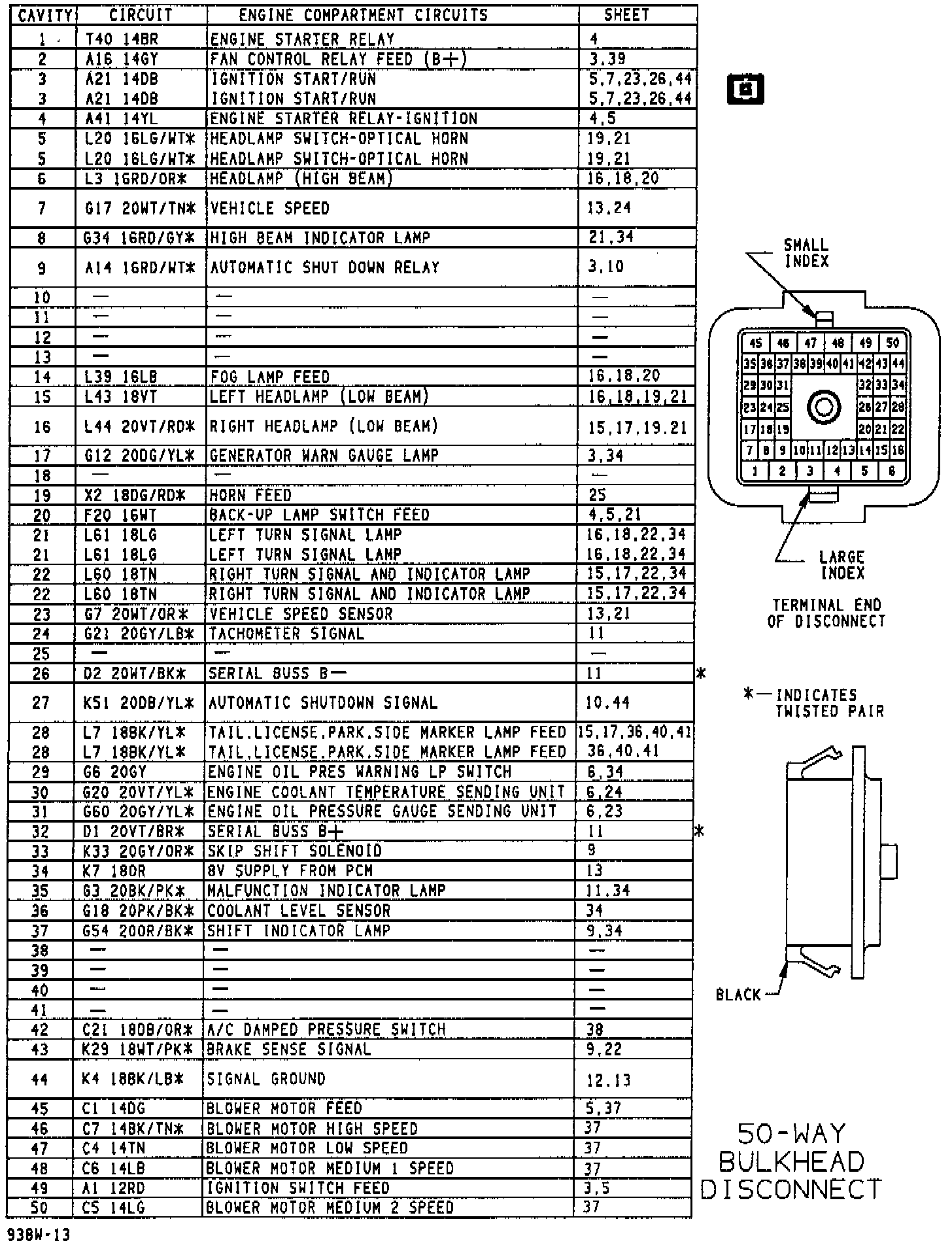

50-Way Bulkhead Disconnect:
