Removal/Installation

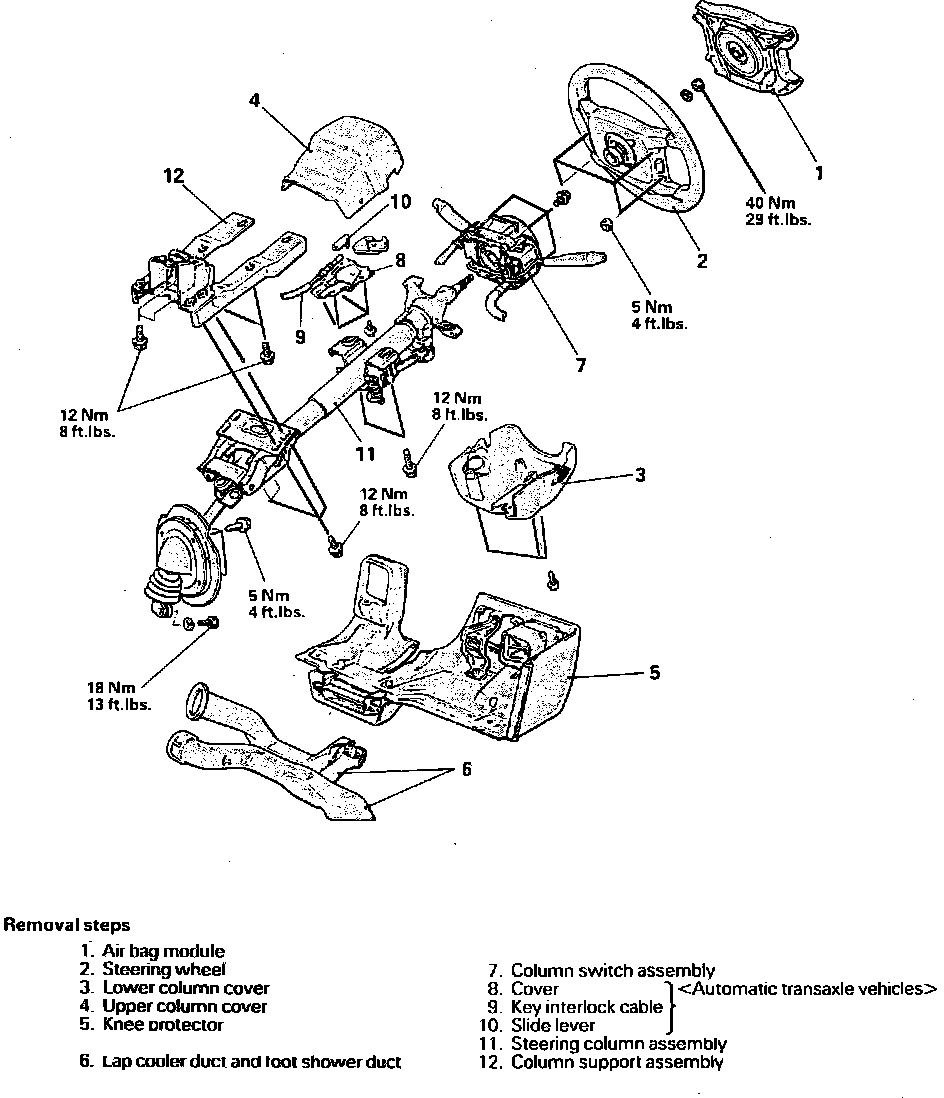

Fig. 21 Exploded View Of Steering Column Assembly:

On models equipped with Driver Airbag Restraint System, it is necessary to follow special procedures when servicing steering column components. These procedures are necessary to avoid accidental deployment of airbag which may cause damage or personal injury.
1. Disarm airbag system, refer to Air Bags and Seat Belts/Air Bags (Supplemental Restraint Systems)/Service and Repair.
2. Remove airbag module, refer to Air Bags and Seat Belts/Air Bags (Supplemental Restraint Systems).
3. Replace the steering column in numbered sequence shown.
