Home >> Dodge >> 1992 >> Stealth V6-2972cc 3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Part 4 of 4

Part 4 of 4

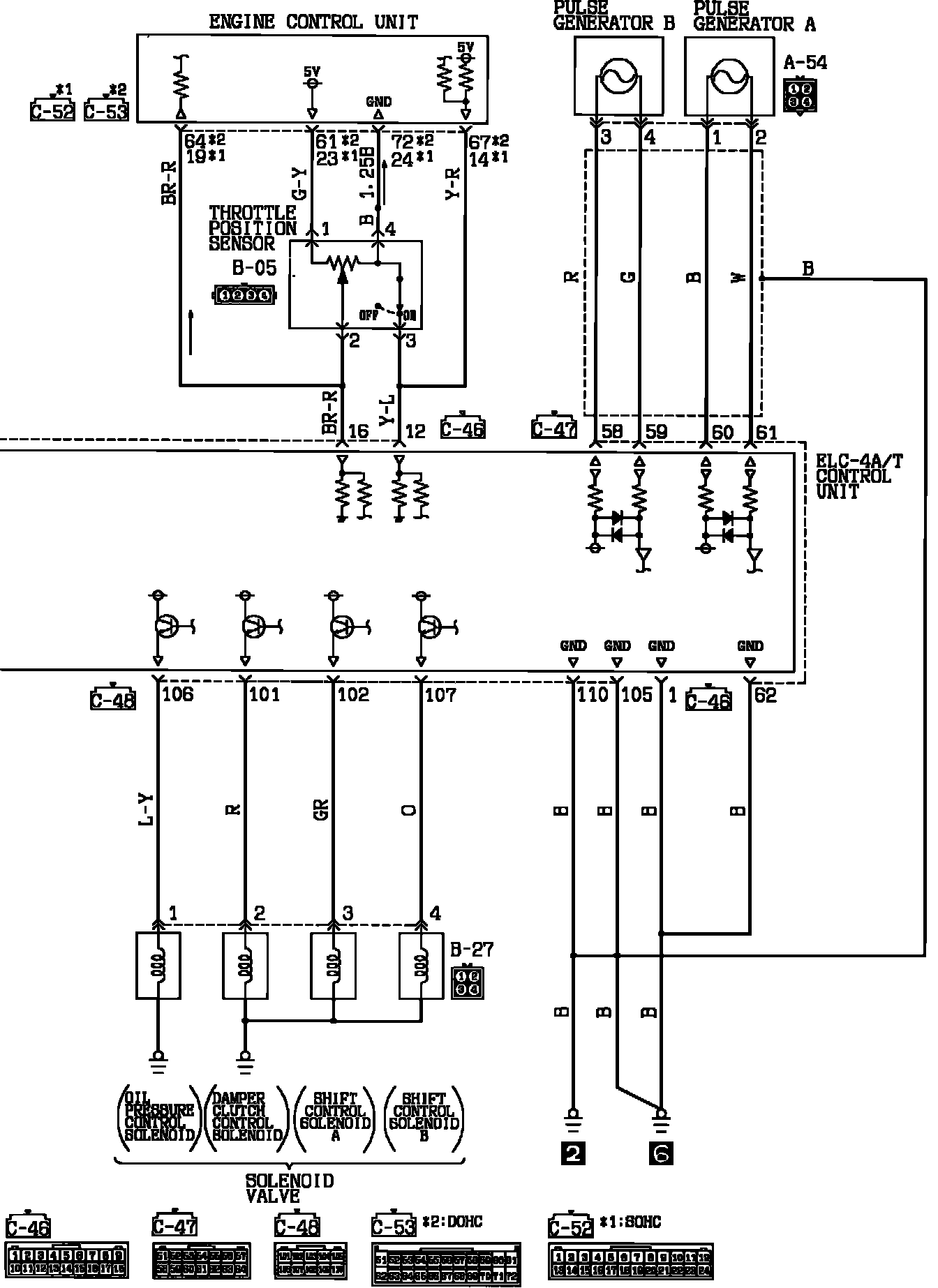

Automatic Transaxle (4-Speed):
