Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1992
>>
Stealth V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Part 2 of 4
Part 2 of 4

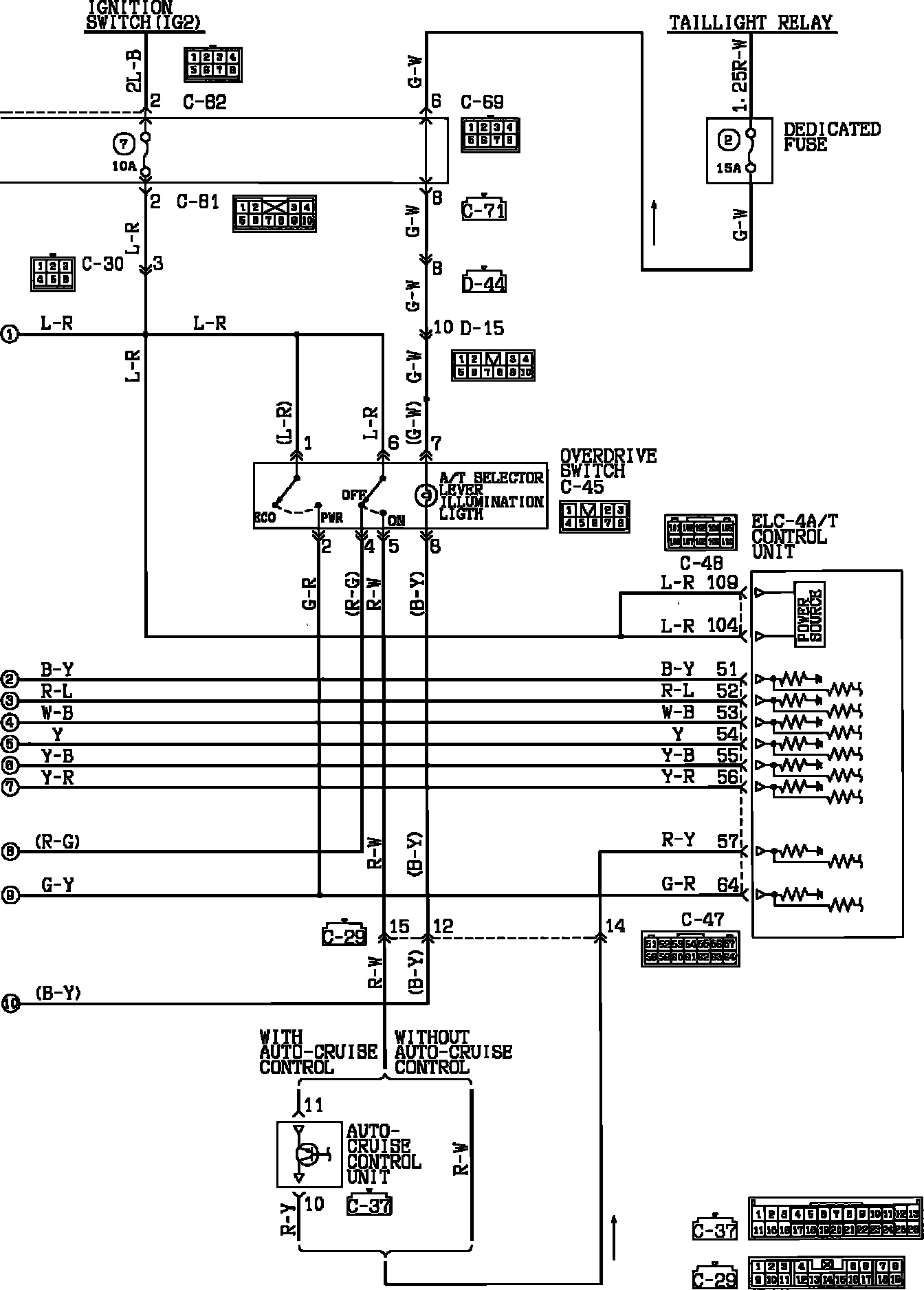

Automatic Transaxle (4-Speed):
