Dodge
>>
1992
>>
Stealth V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
>>
With Small Bumper - Type 1
With Small Bumper - Type 1

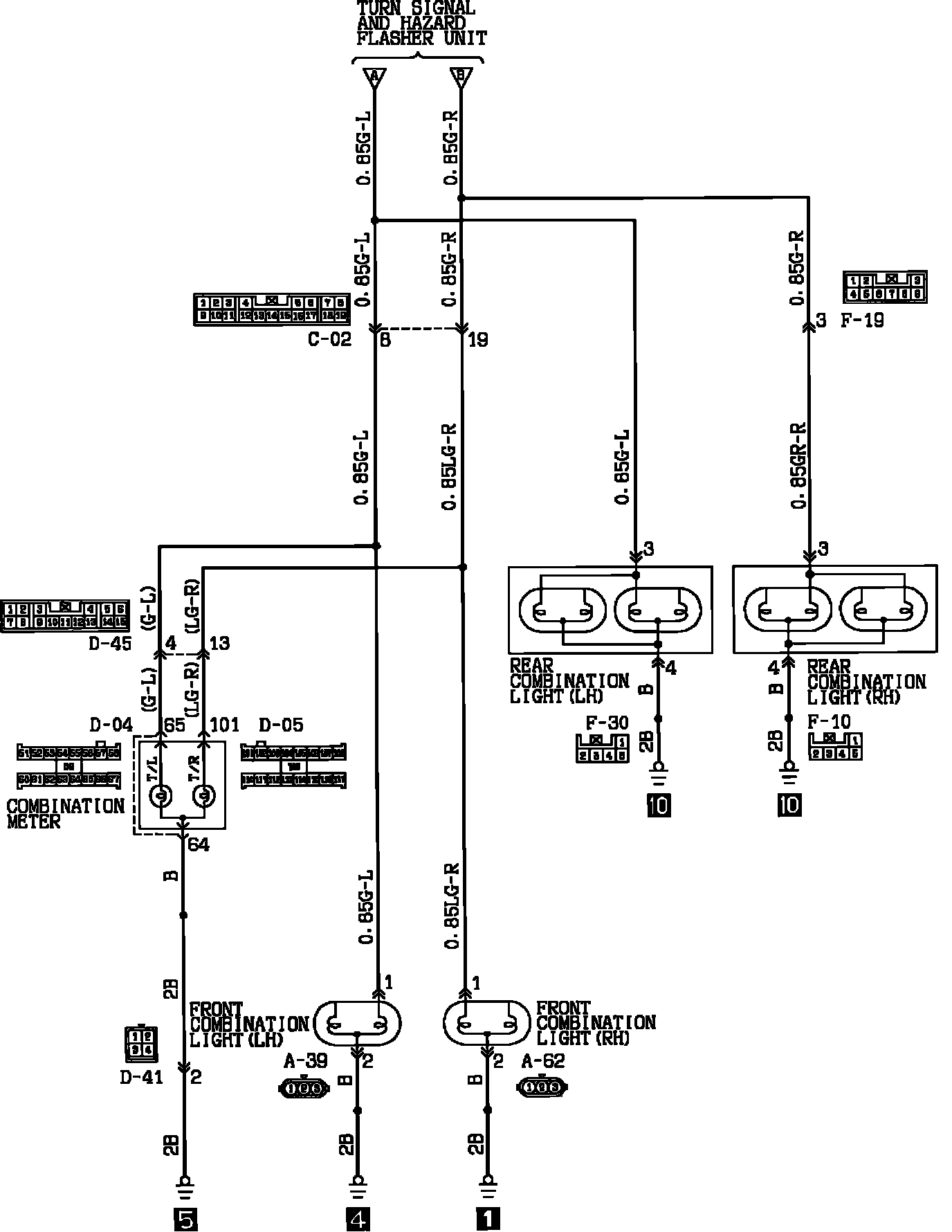

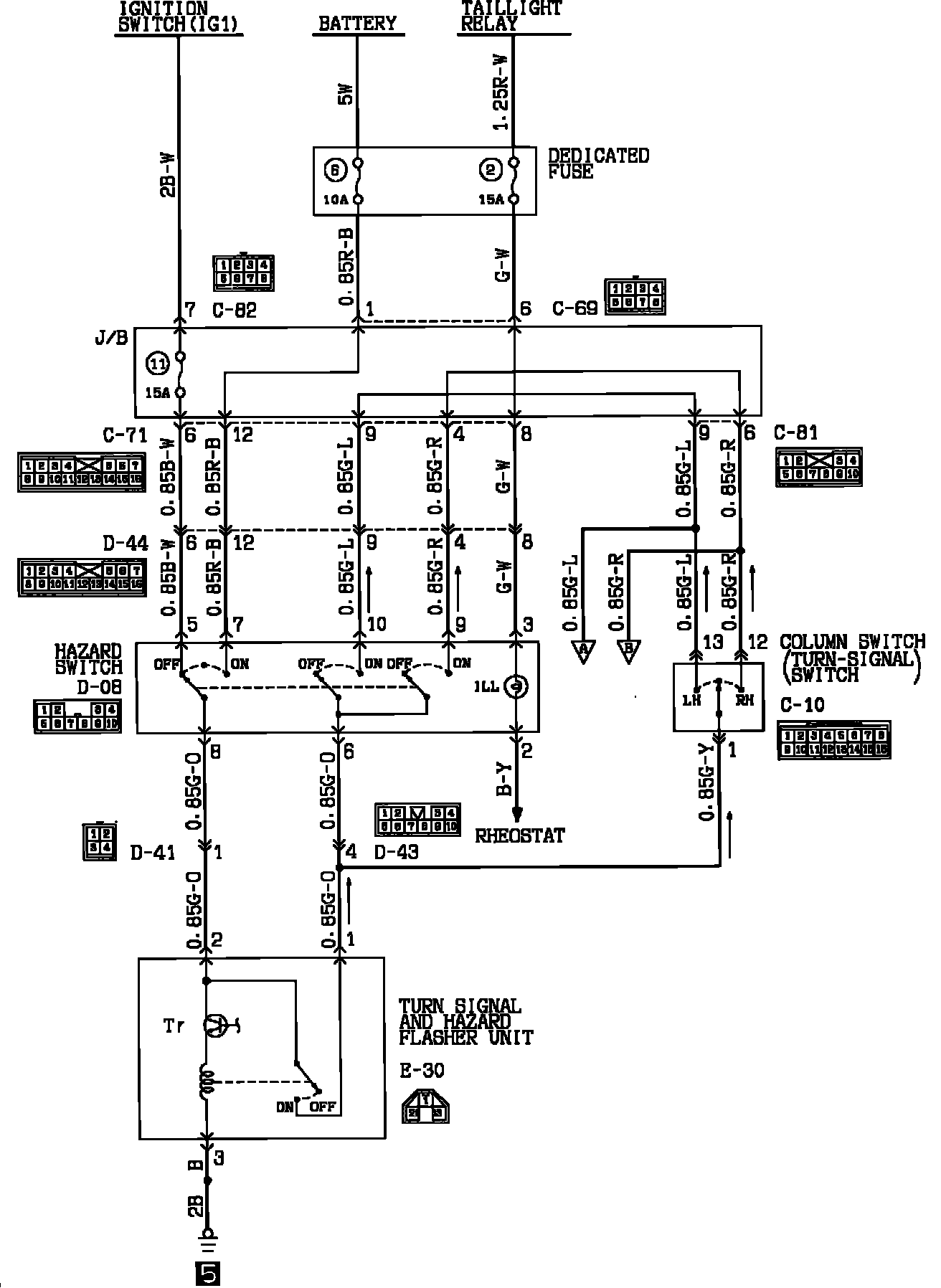

Turn-Signal And Hazard Lamps (With Small Bumper - Type 1):
Turn-Signal And Hazard Lamps (With Small Bumper - Type 1):
