System Diagram

Fig. 8 Wiring Diagram Of Mitsubishi Charging System:

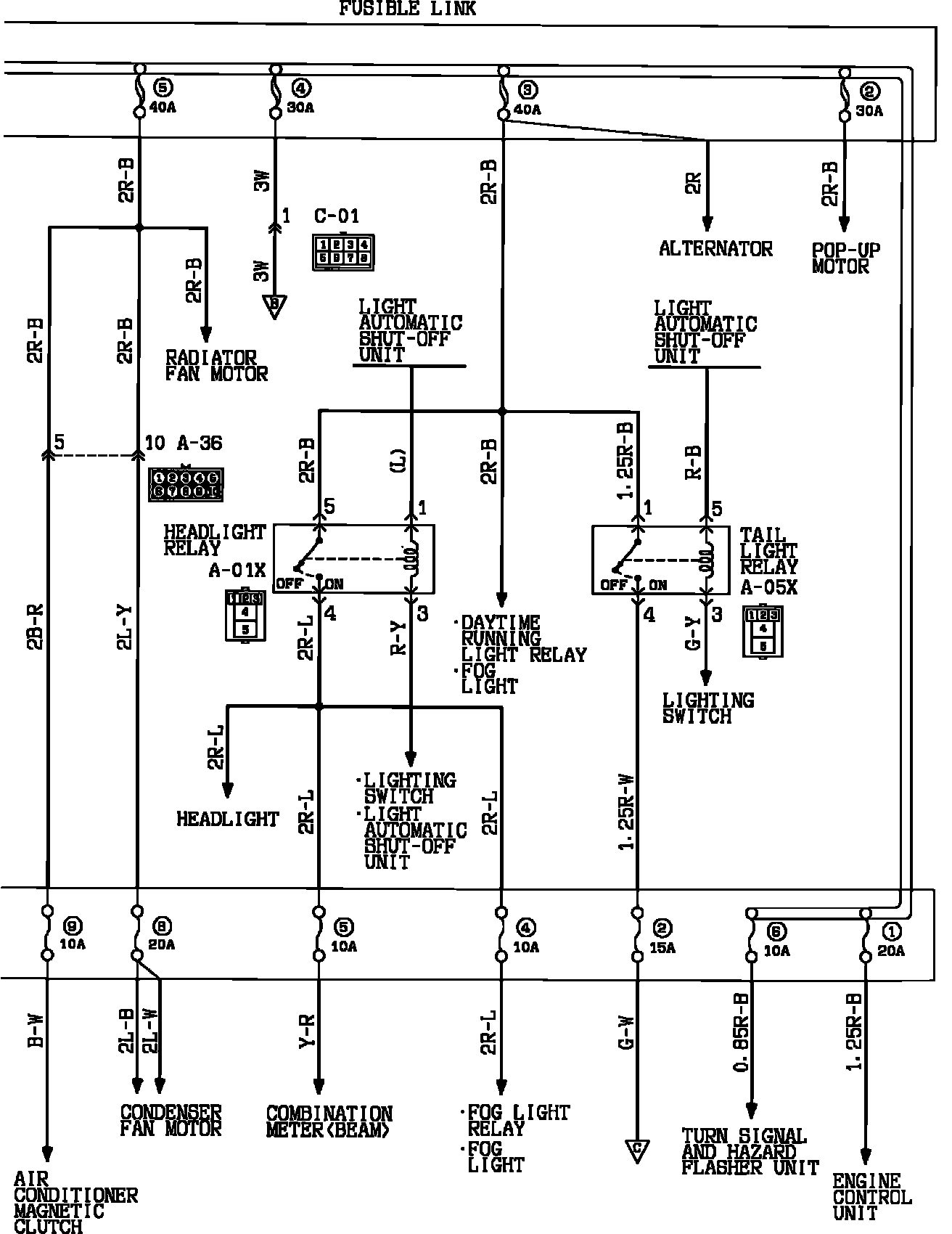

Power Distribution:

Power Distribution:

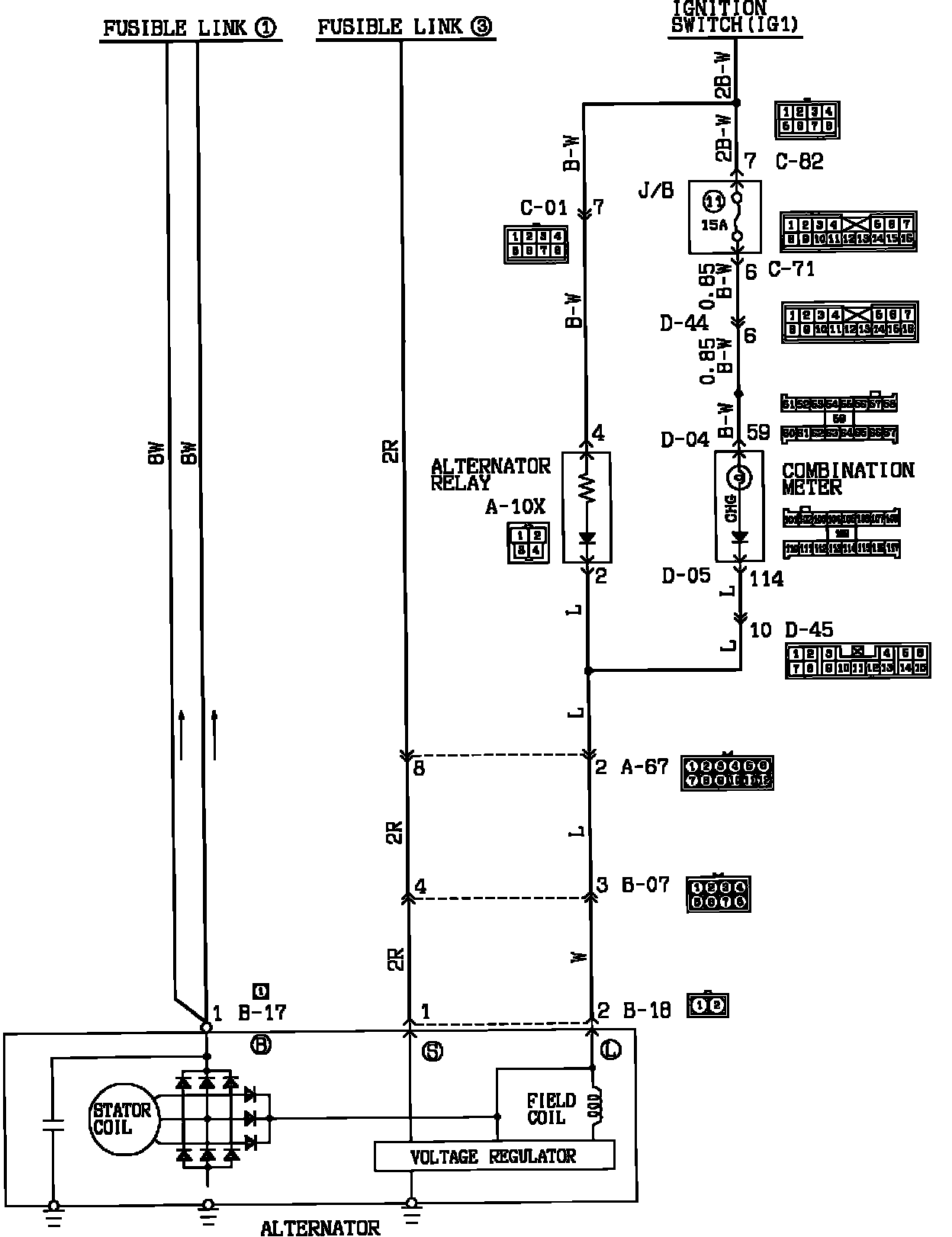

Charging System:
