Manual A/C

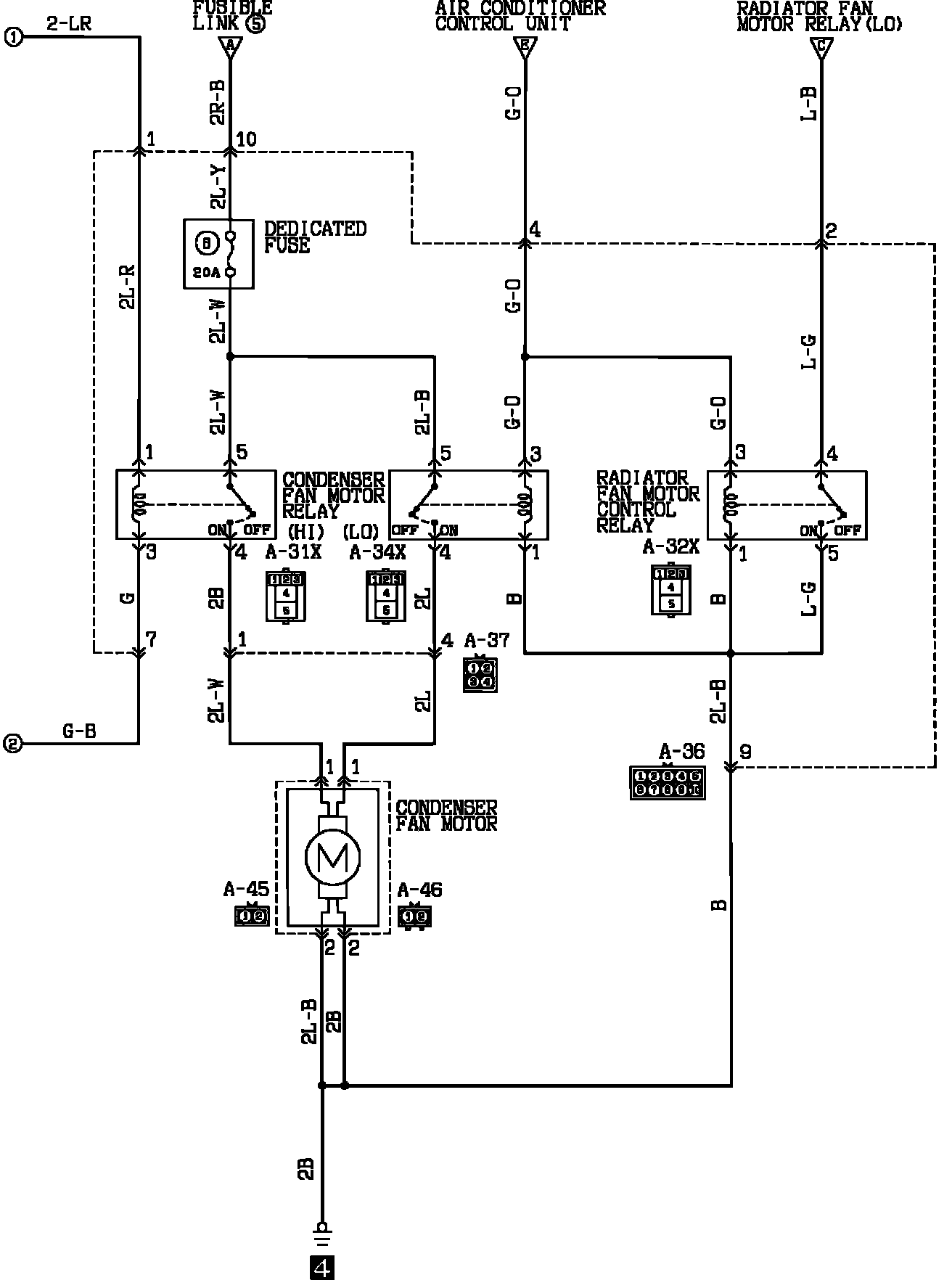

Air Conditioner (Manually Controlled) Part 1 Of 5:

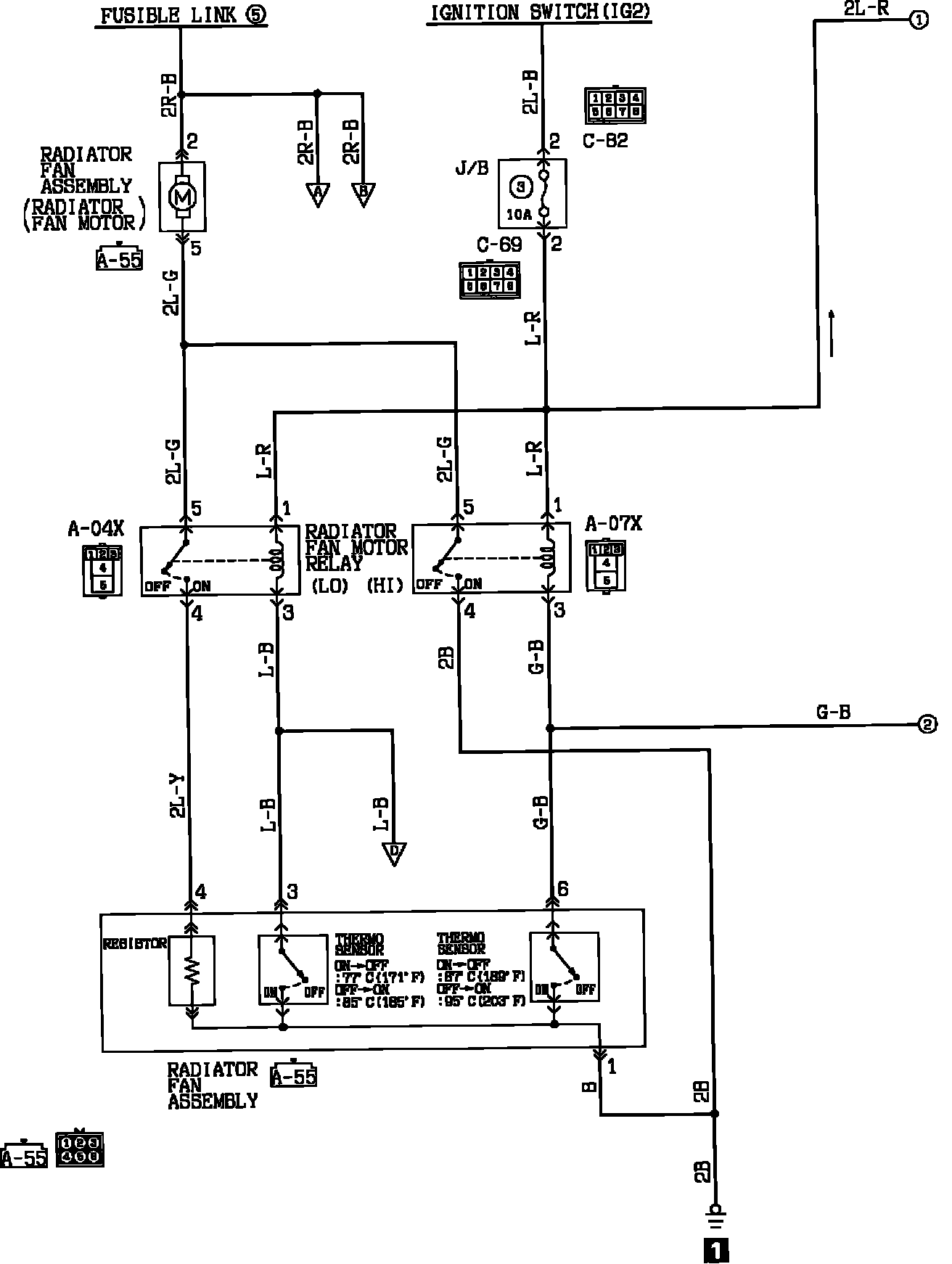

Air Conditioner (Manually Controlled) Part 2 Of 5:

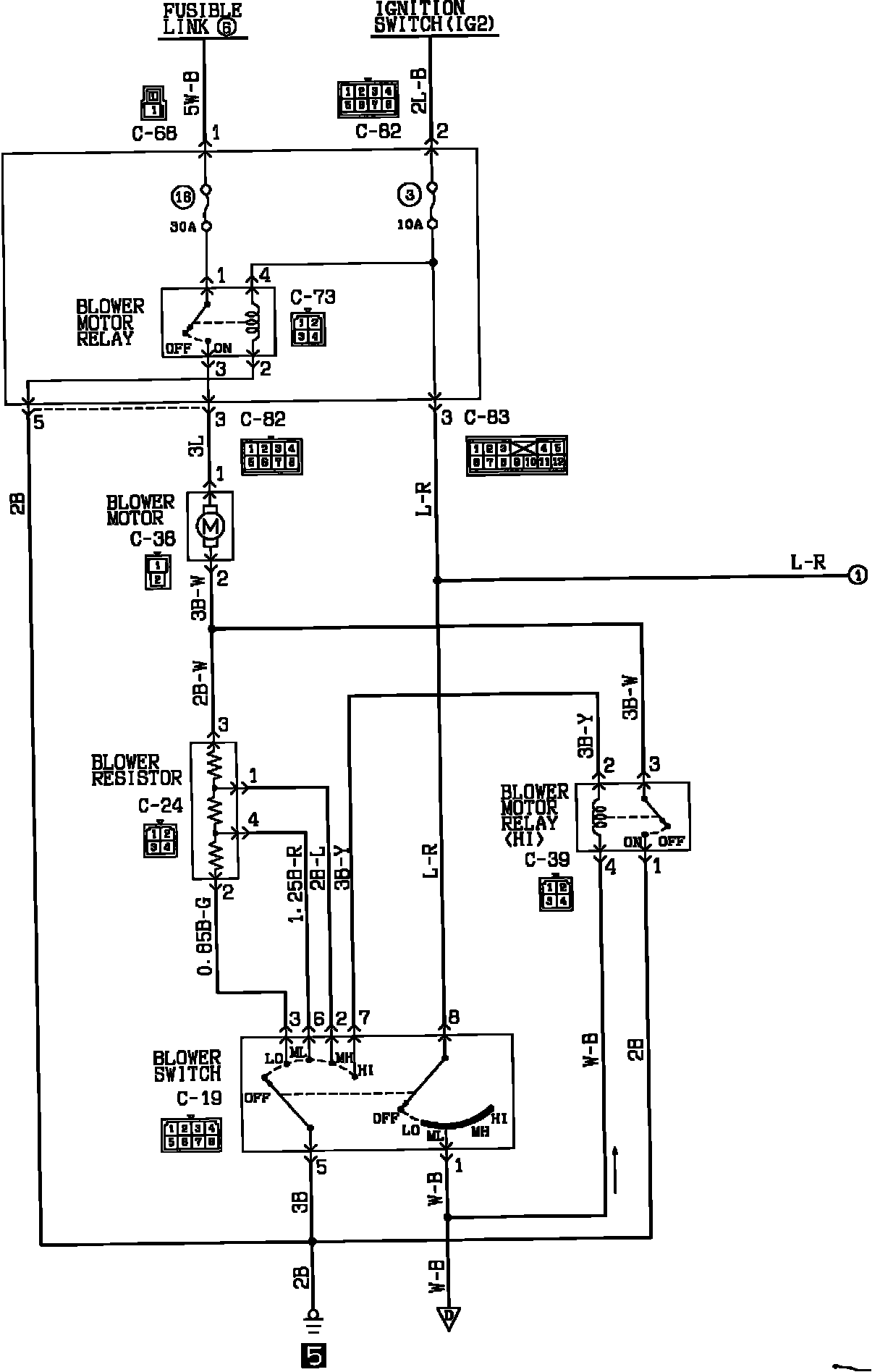

Air Conditioner (Manually Controlled) Part 3 Of 5:

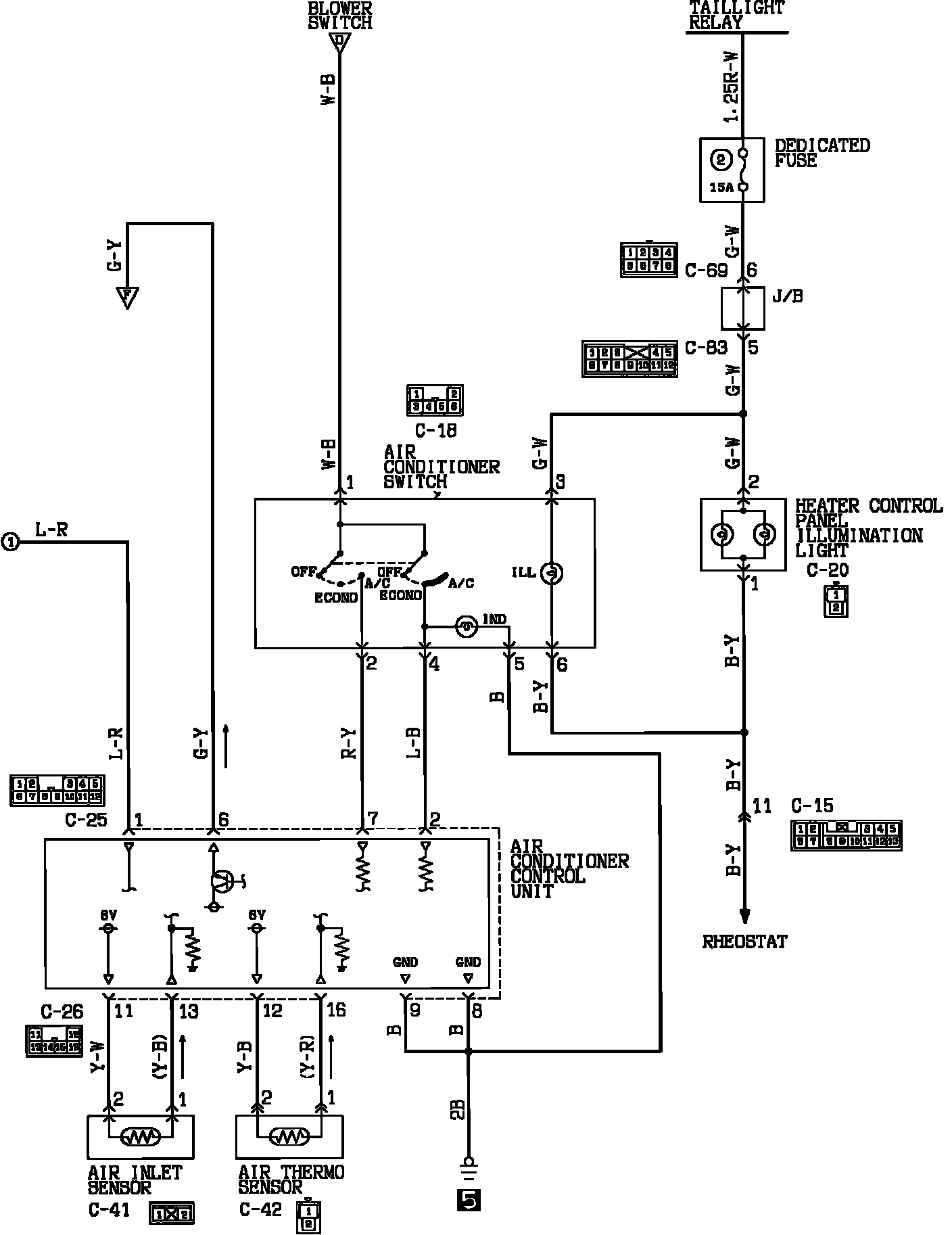

Air Conditioner (Manually Controlled) Part 4 Of 5:

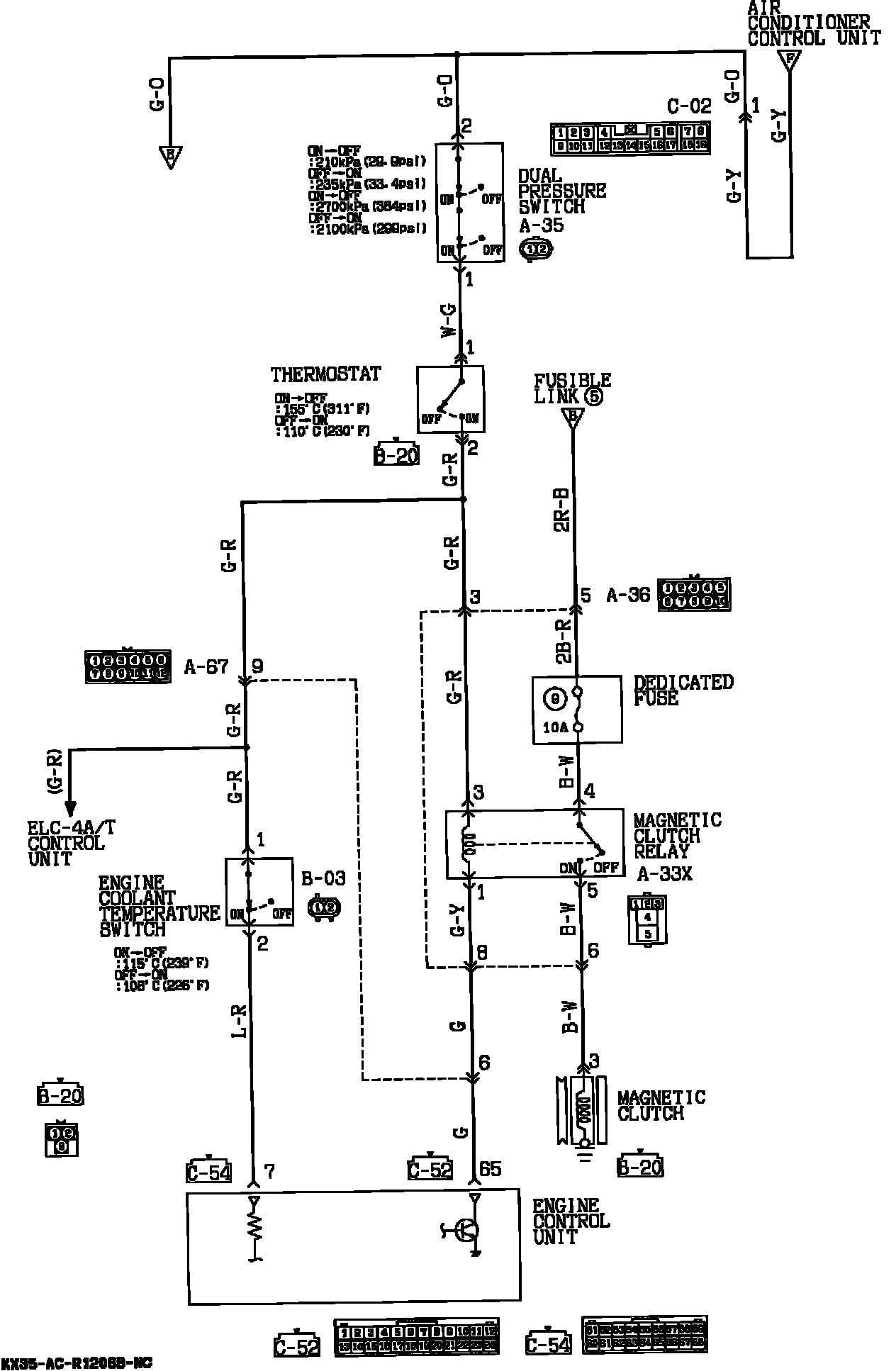

Air Conditioner (Manually Controlled) Part 5 Of 5:
