Dodge
>>
1992
>>
Stealth V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Light Switch
>>
With Large Bumper
With Large Bumper

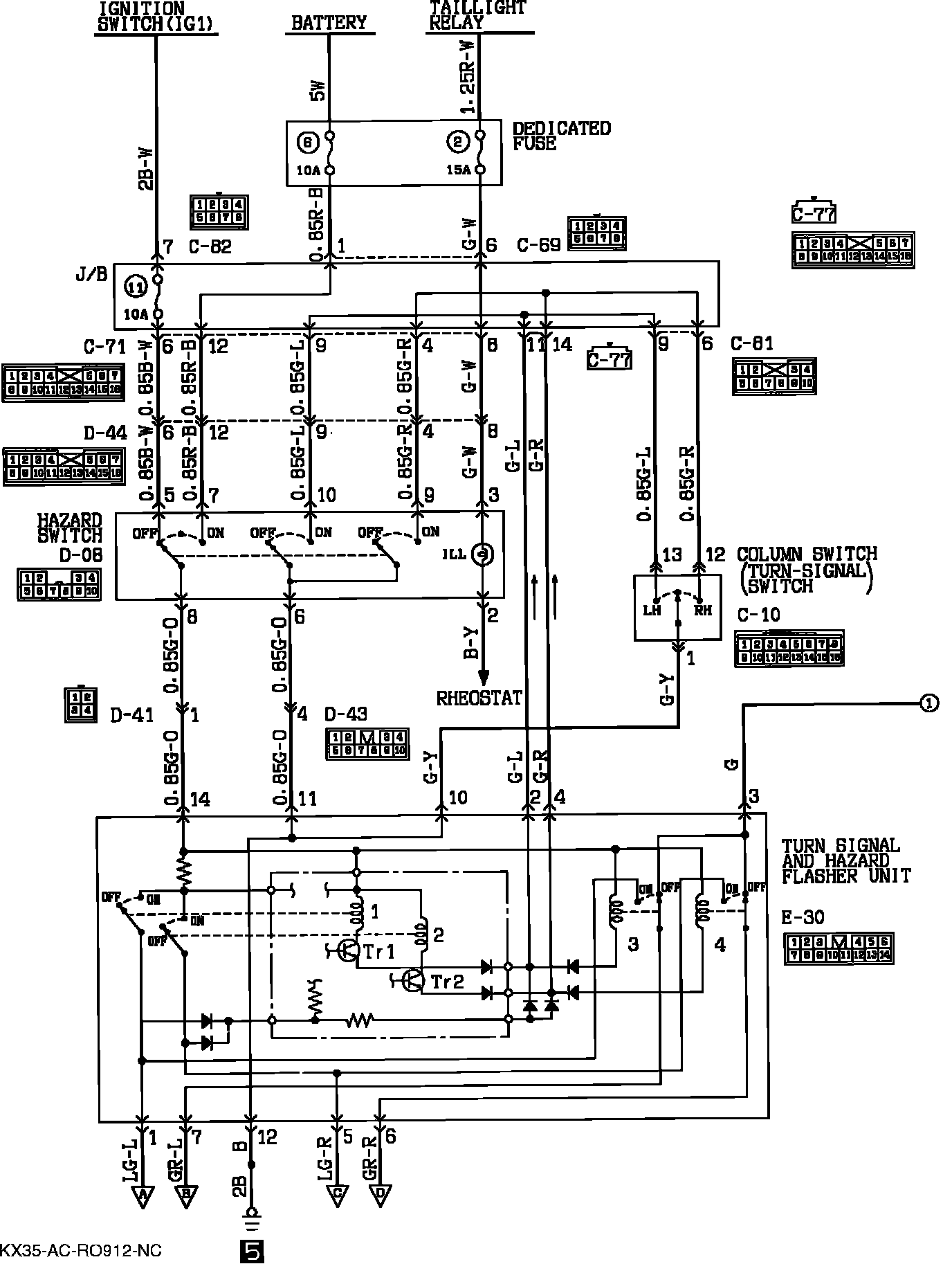

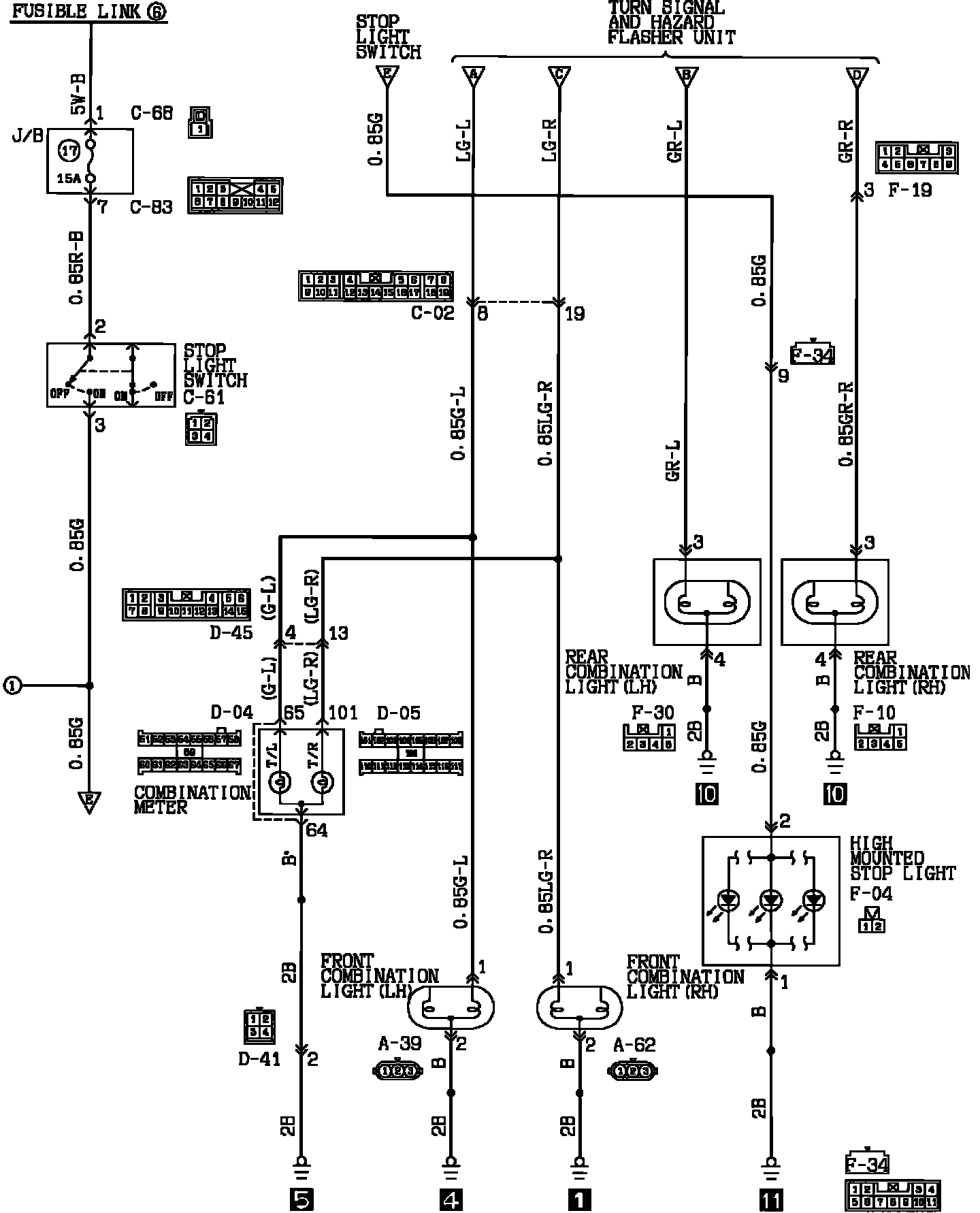

Turn-Signal, Hazard And Stop Lamps (With Large Bumper):
Turn-Signal, Hazard And Stop Lamps (With Large Bumper):
