Exhaust System: Adjustments

1. Install the muffler end of the cable with the paint mark facing up.

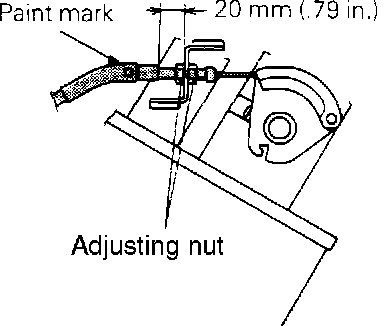

Active Exhaust Cable:

2. Adjust the adjusting nuts to obtain the illustrated dimension.

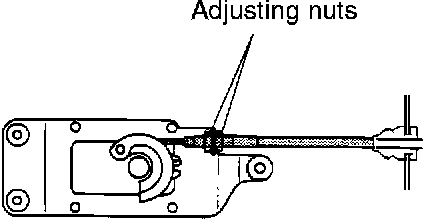

Active Exhaust Cable Adjustment:

3. Install the actuator side of the cable and adjust the adjusting nuts for an inner cable play of 0 - .04 in (0 - 1 mm.).
