Stealth ES V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
>>
With Small Bumper - Type 2
With Small Bumper - Type 2

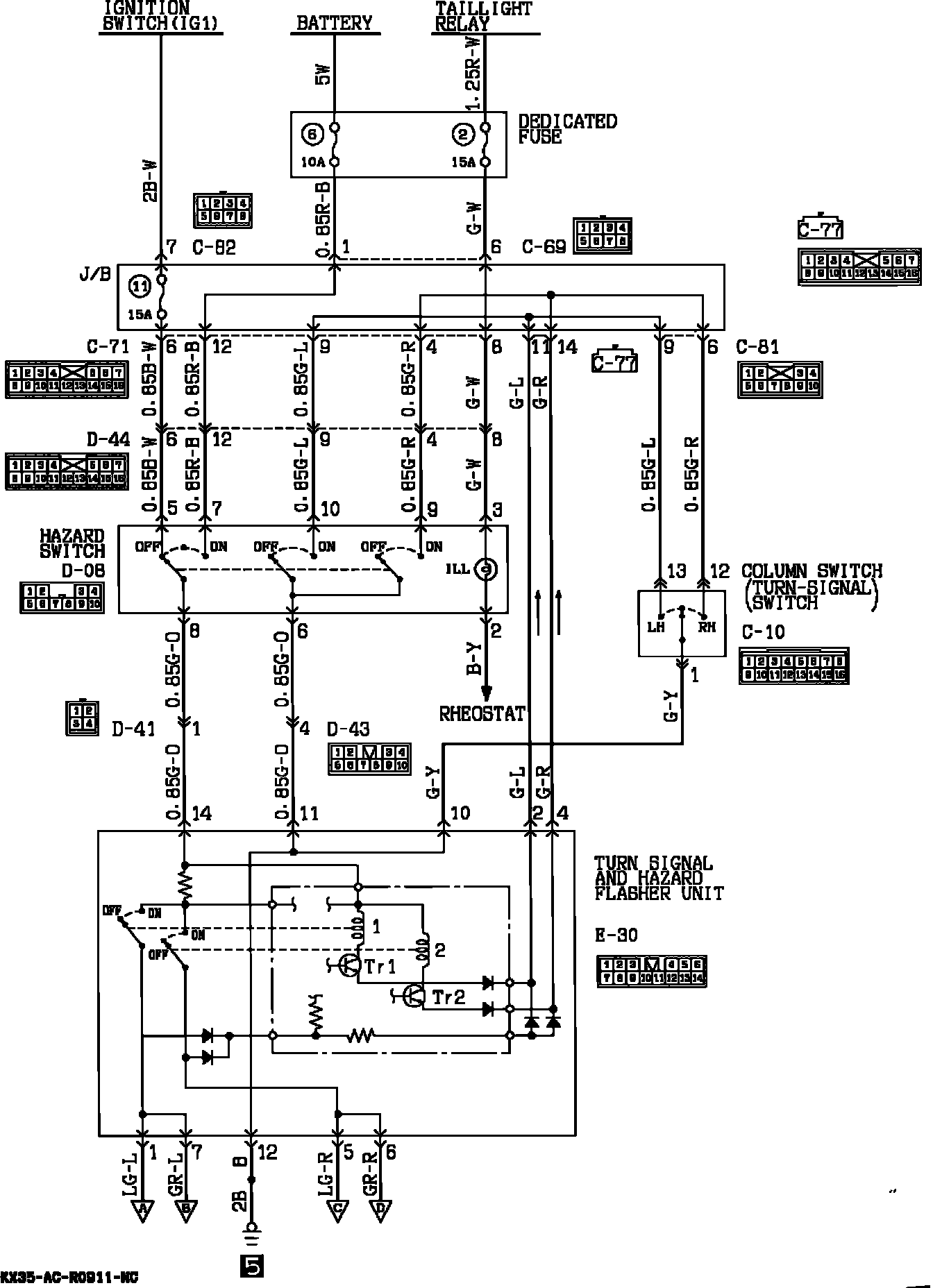

Turn-Signal And Hazard Lamps (With Small Bumper - Type 2):
Turn-Signal And Hazard Lamps (With Small Bumper - Type 2):
