ABS - Service Manual Revision

9227chrysler01

NO.: 05-02-92

GROUP: Brakes

DATE: Mar. 9, 1992


SUBJECT:
Service Manual Revision - ABS


MODELS:


1992 (B7) Stealth
1992 (B8) Colt Vista


DISCUSSION:


The ABS troubleshooting guide found in the listed manuals has a Standard Value that is incorrect. The corrected value is 1.0 - 1.3 ohms, please insert the corrected pages in the manuals. The revisions are printed in red and highlighted with ** asterisks**.

The affected service manuals are:


Manual Number Pages

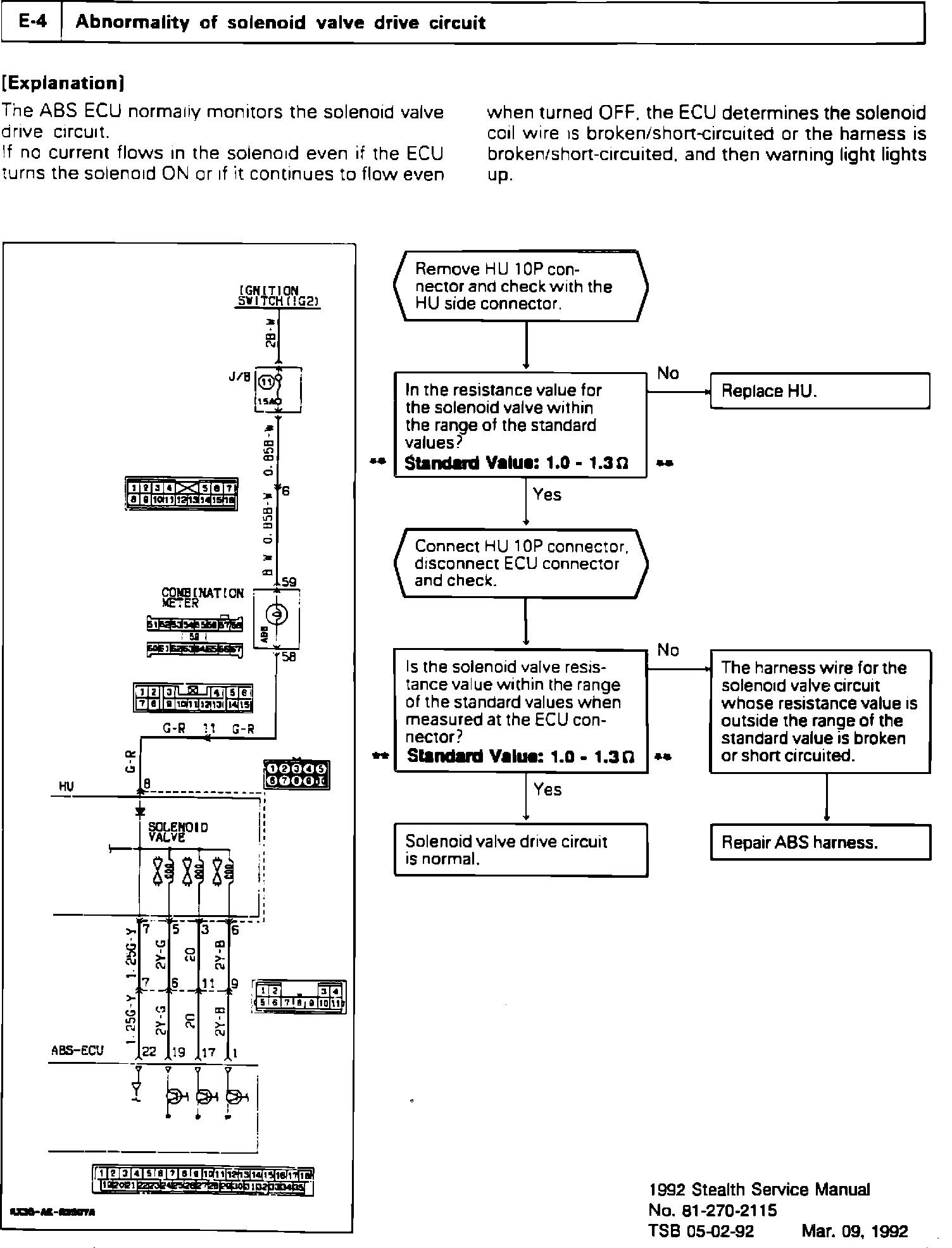

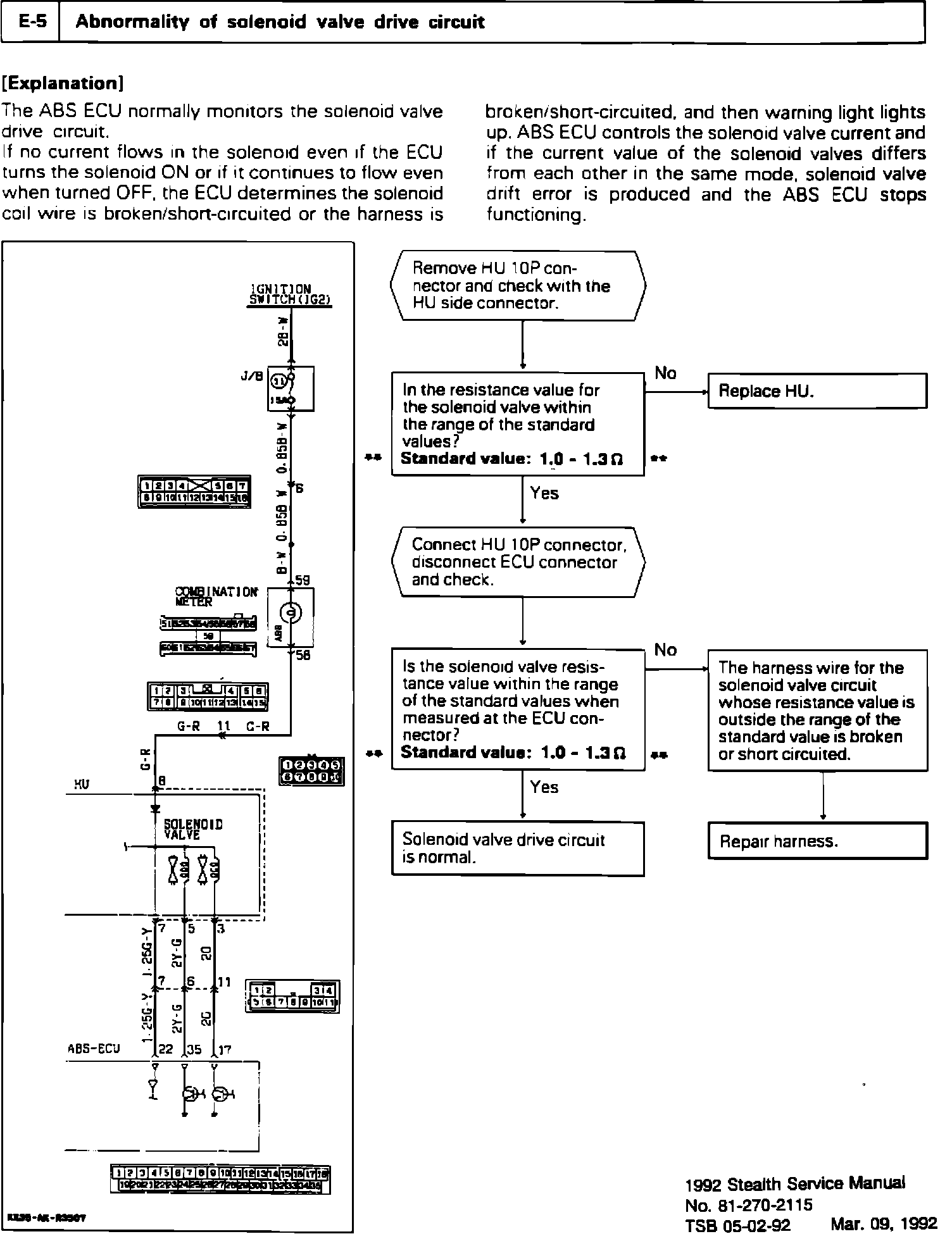

1992 Stealth Service 81-270-2115 5-21, 5-38
Manual Vol. 1

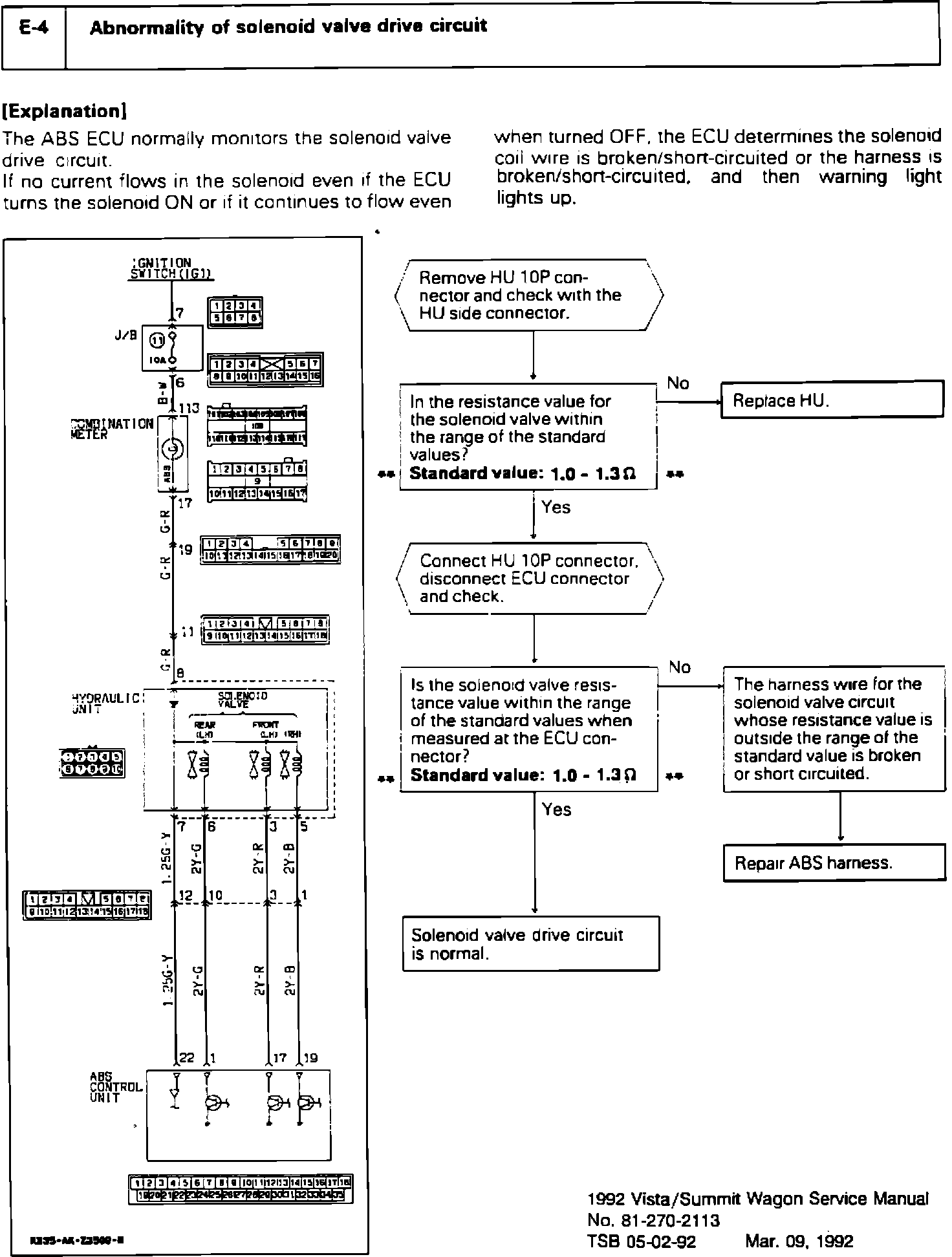

1992 Vista/Summit 81-270-2113 5-22, 5-38
Wagon Service Manual


POLICY:
Information only.
