Assembly

SPEEDOMETER DRIVEN GEAR INSTALLATION

Apply gear oil sparingly to the speedometer driven gear shaft and insert the shaft.

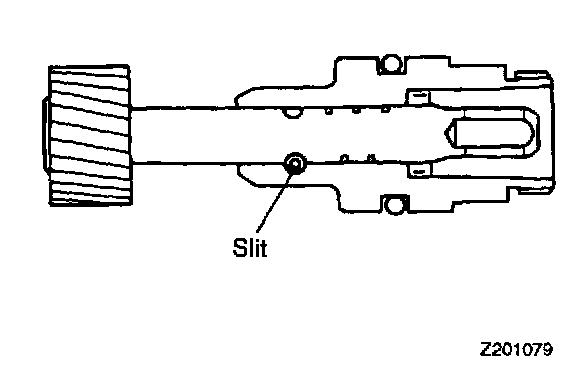

SPRING PIN INSTALLATION

Install the spring pin in such a way that its slit does not face the gear shaft.
