Home >> Dodge >> 1992 >> Stealth ES V6-2972cc 3.0L DOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Locations

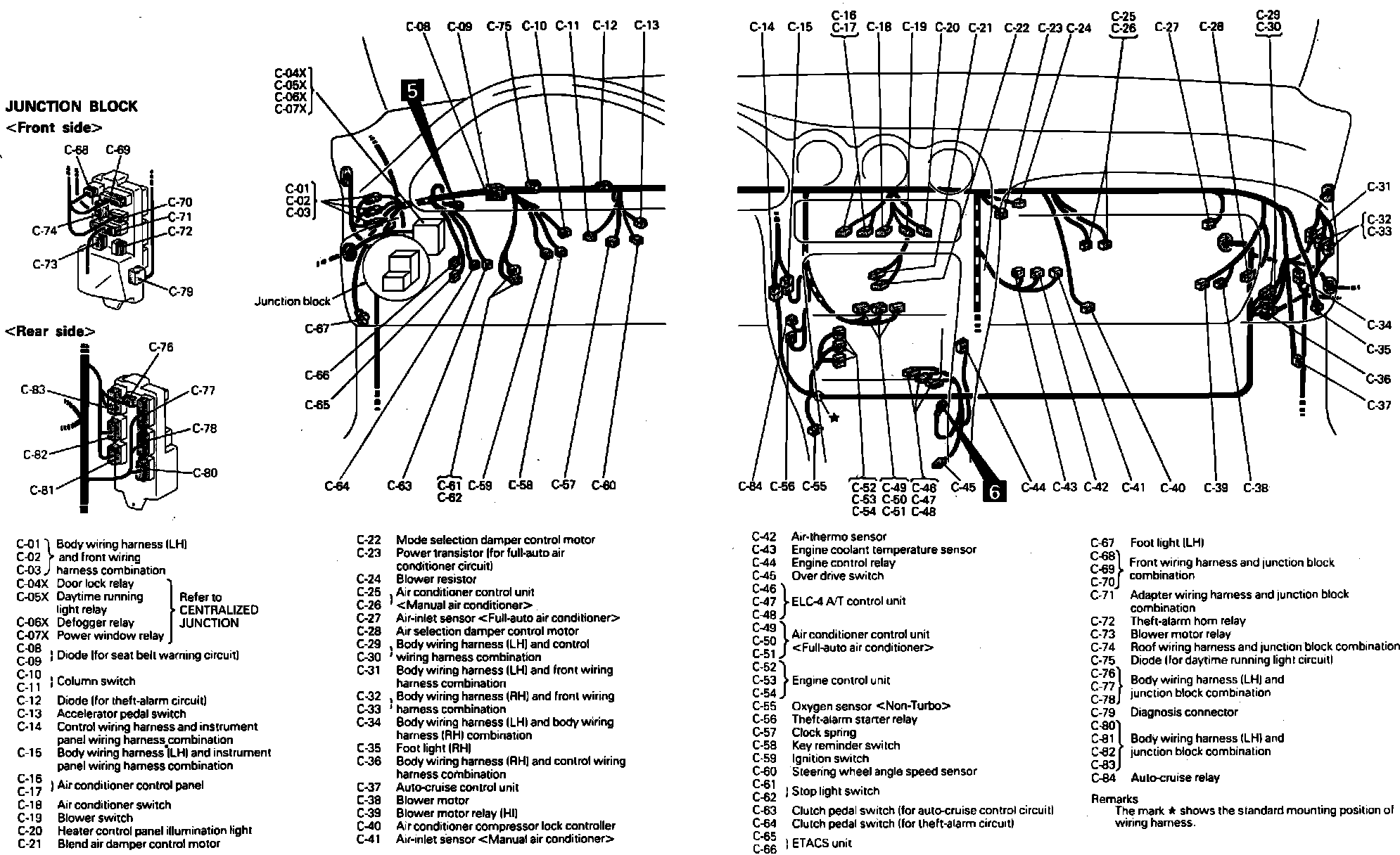

Multiple Junction Connector: Locations

Dash Panel Connectors.:

Lower LH Side Of I/P

Applicable to: 1992 Models
