System Diagram: Diagrams

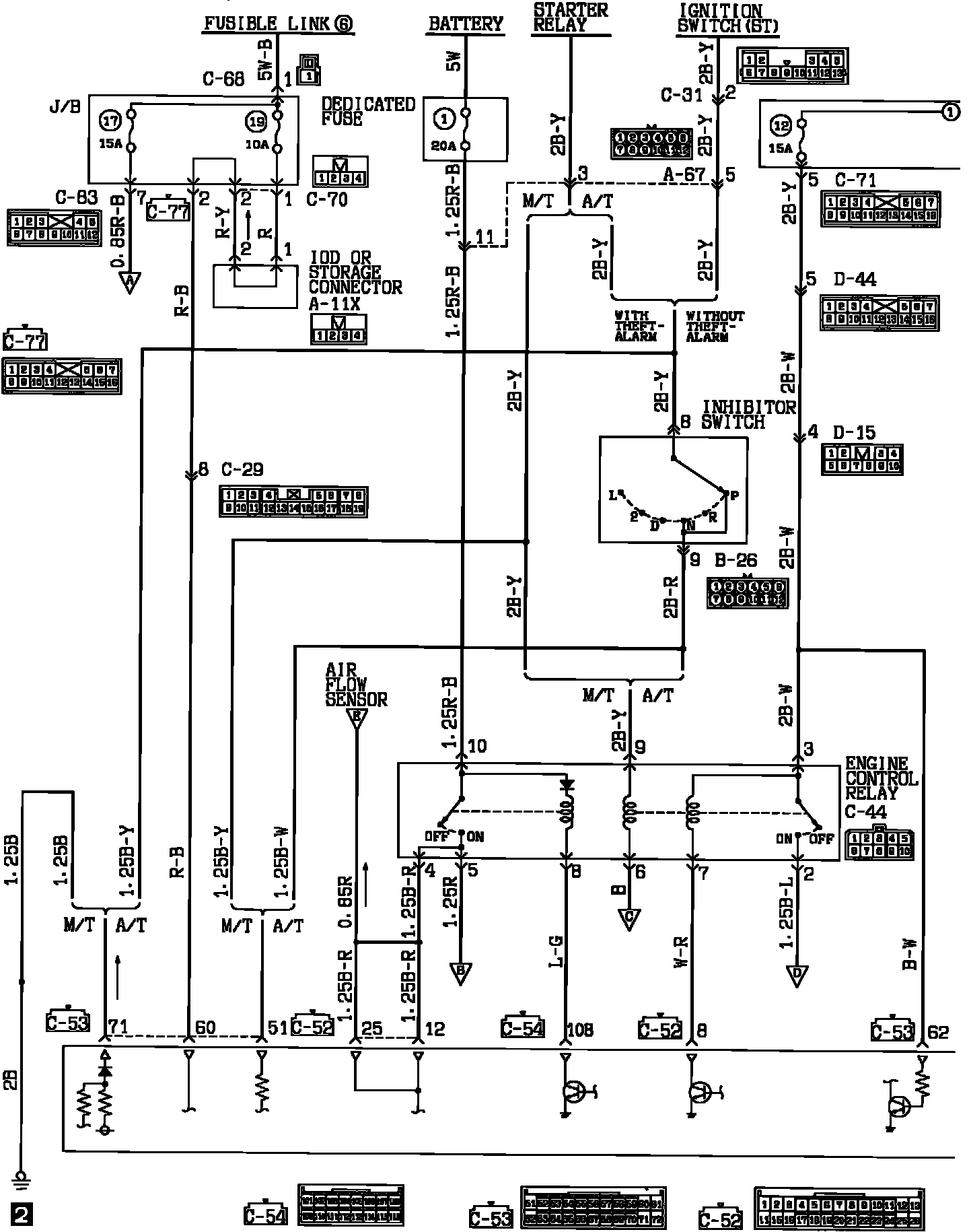

PART 1 OF 6

Engine Management (Non-Turbo):

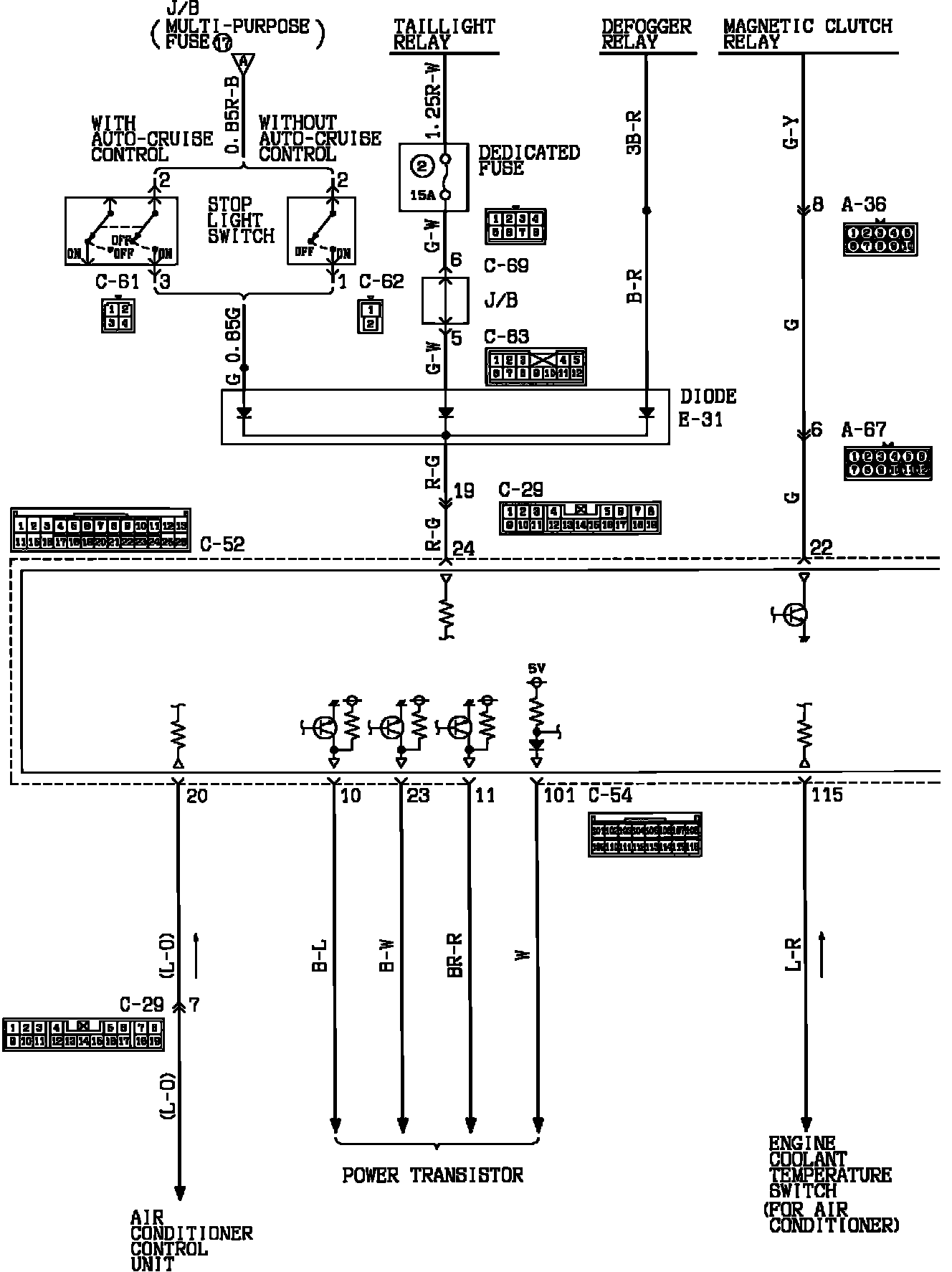

PART 2 OF 6

Engine Management (Non-Turbo):

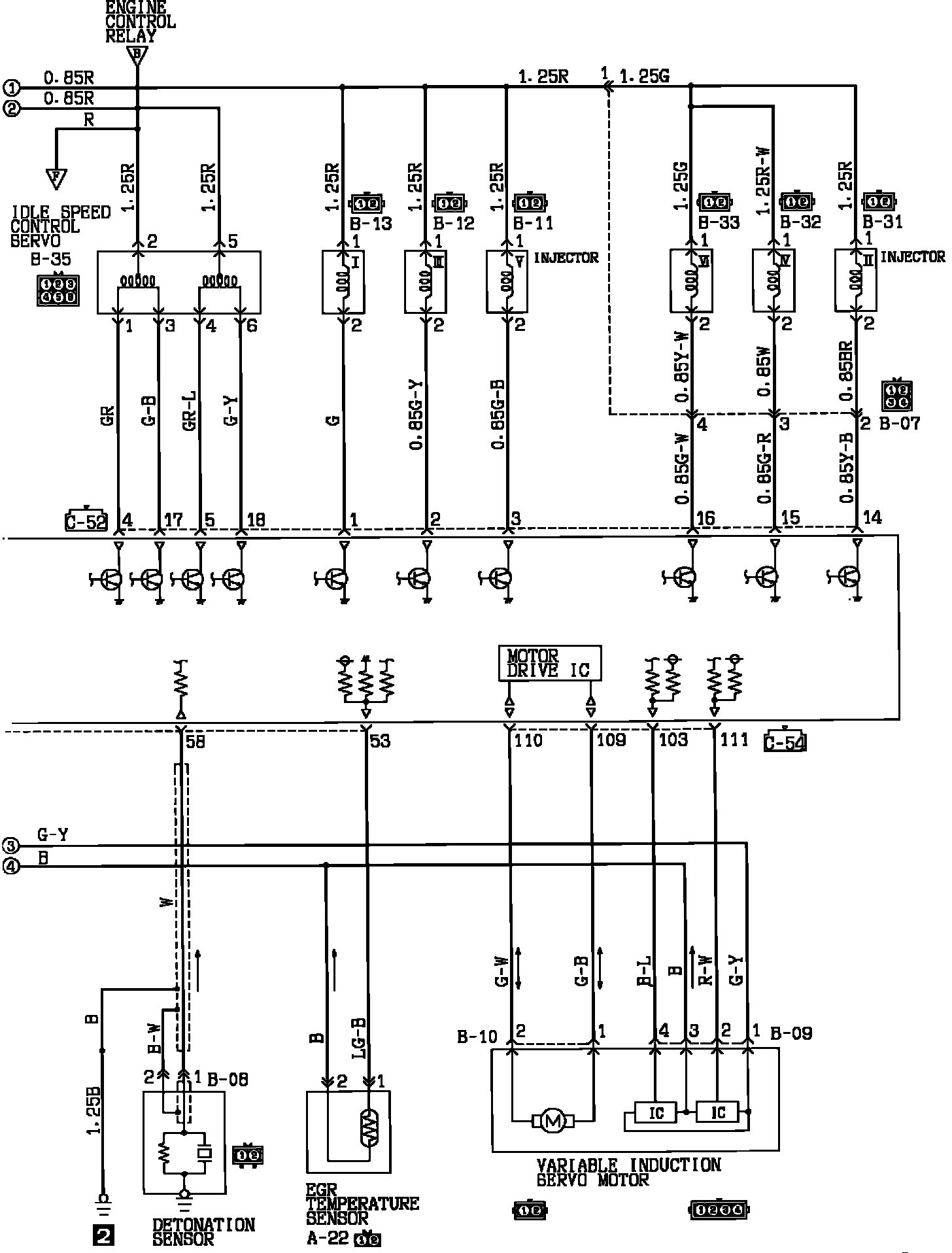

PART 3 OF 6

Engine Management (Non-Turbo):

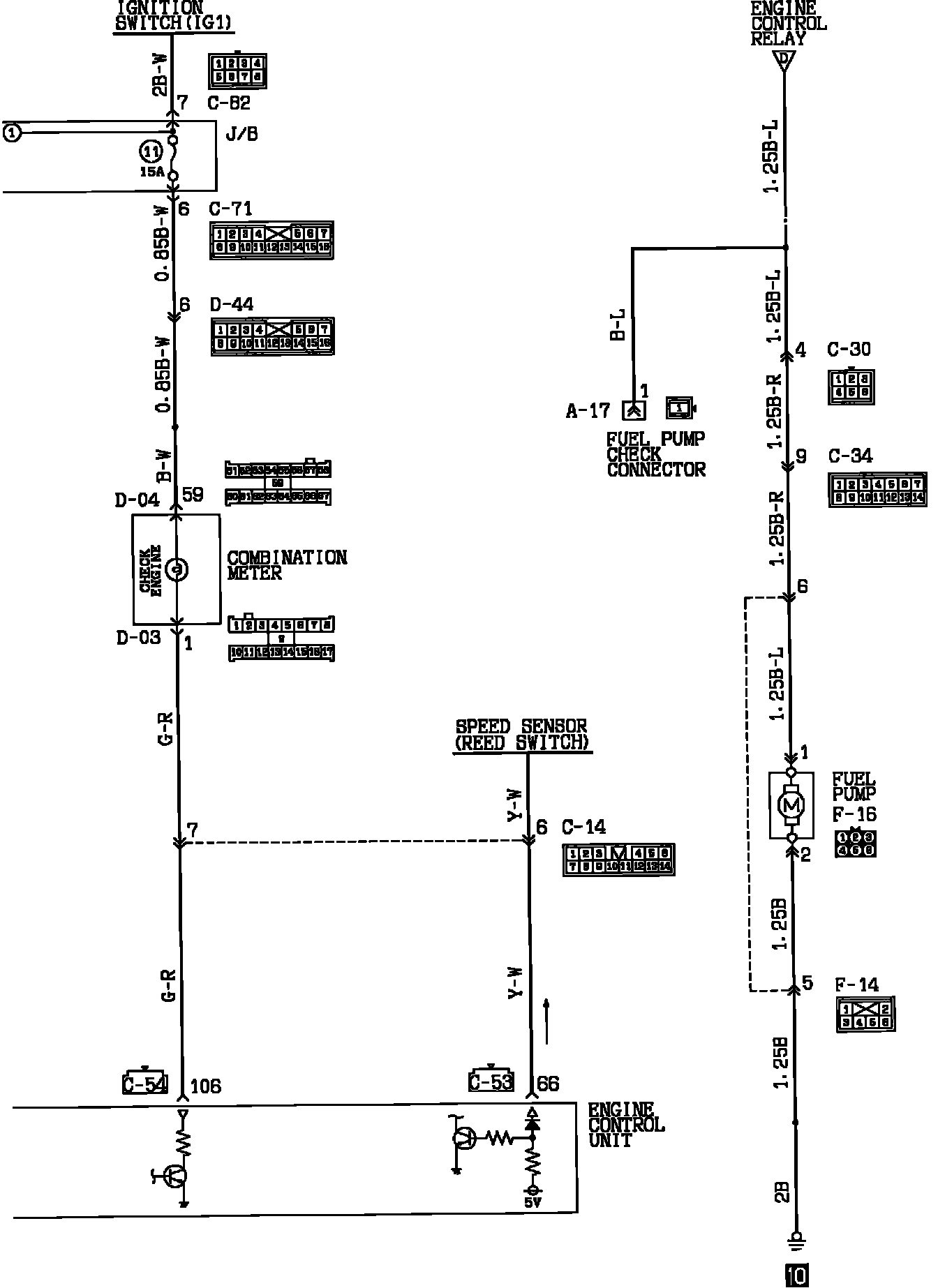

PART 4 OF 6

Engine Management (Non-Turbo):

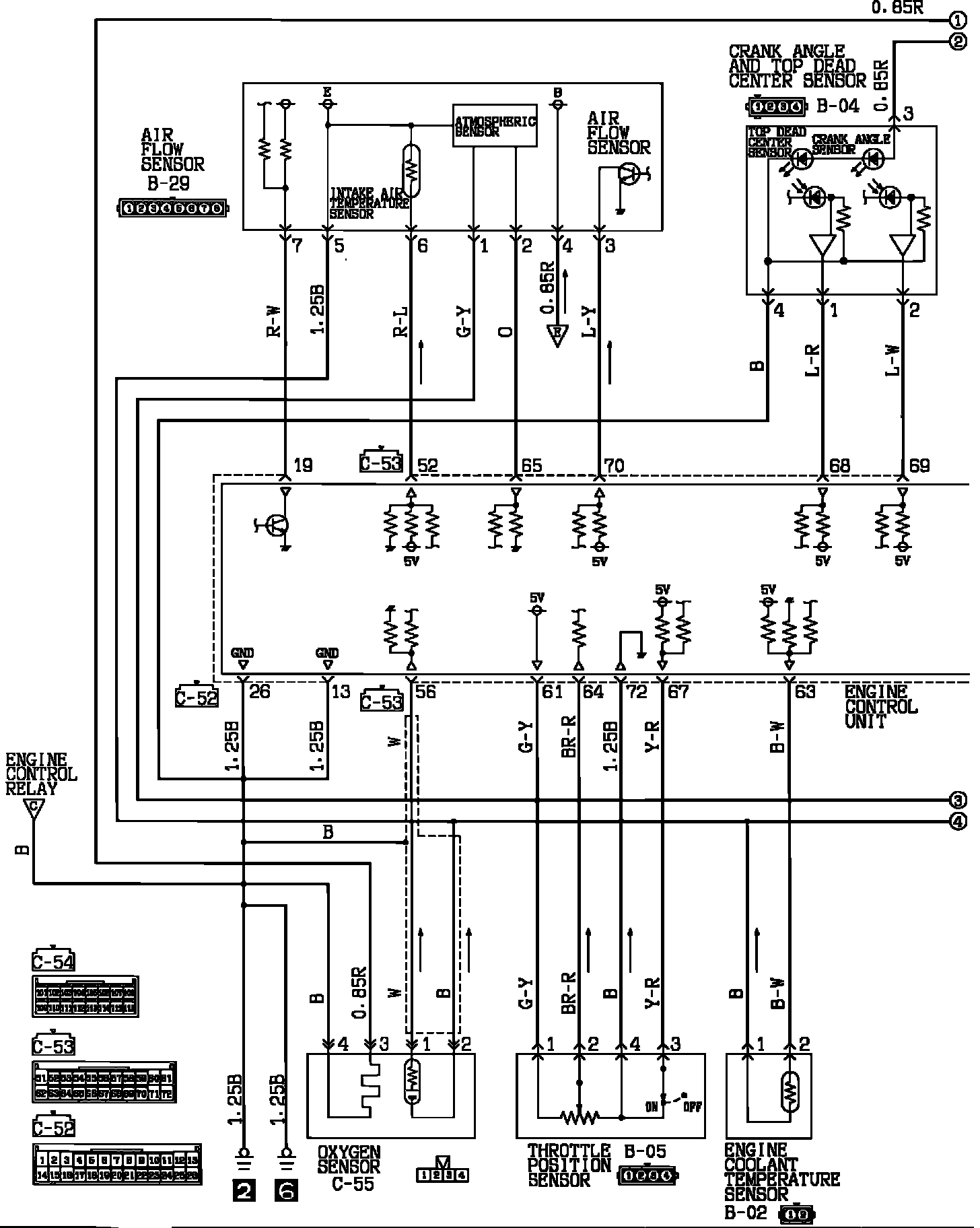

PART 5 OF 6

Engine Management (Non-Turbo):





PART 6 OF 6

Engine Management (Non-Turbo):






For further information, see CHASSIS ELECTRICAL DIAGRAMS.
