Home
>>
Dodge
>>
1992
>>
Spirit R/T L4-135 2213cc 2.2L DOHC Turbo VIN A FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

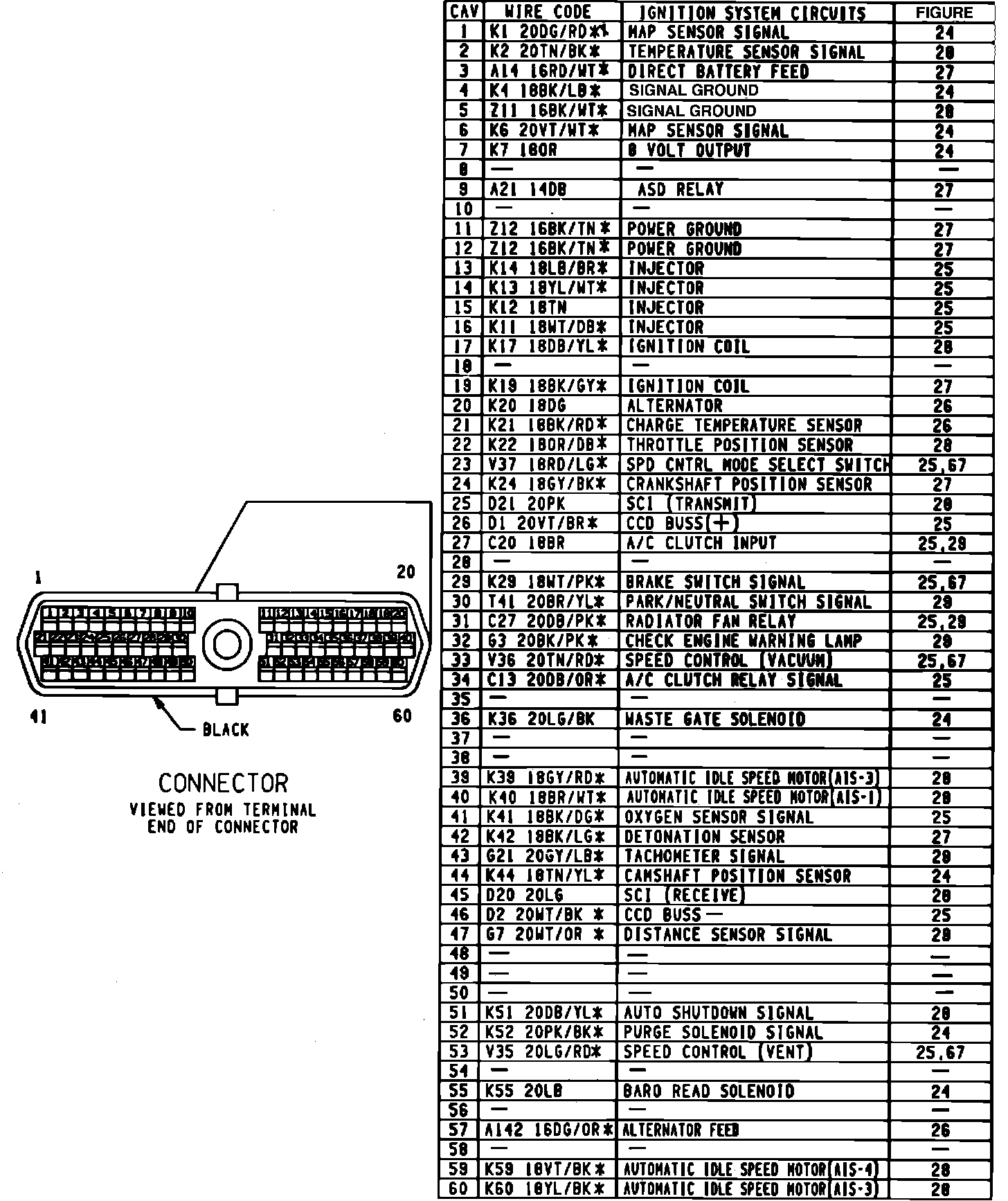

Single Board Engine Controller Connector (Turbo III):
