Ignition Coil: Service and Repair

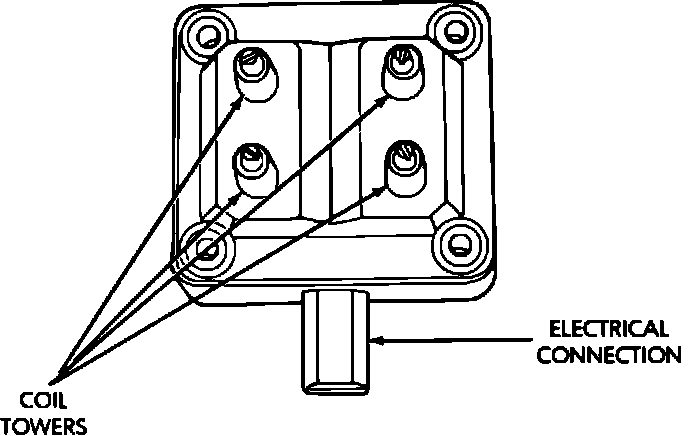

Molded Coil Pack (2 Coils In Pack):

Removal

1. Remove spark plug cables from coil pack.
2. Disconnect electrical connector.
3. Remove coil fasteners.

Installation

1. Install spark plug cables to coil.
2. Connect electrical connector.
3. Install coil fasteners and torque to 105 lb-in (12 Nm.)
