Home
>>
Dodge
>>
1992
>>
Spirit L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Power and Ground Distribution
>>
Relay Box
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

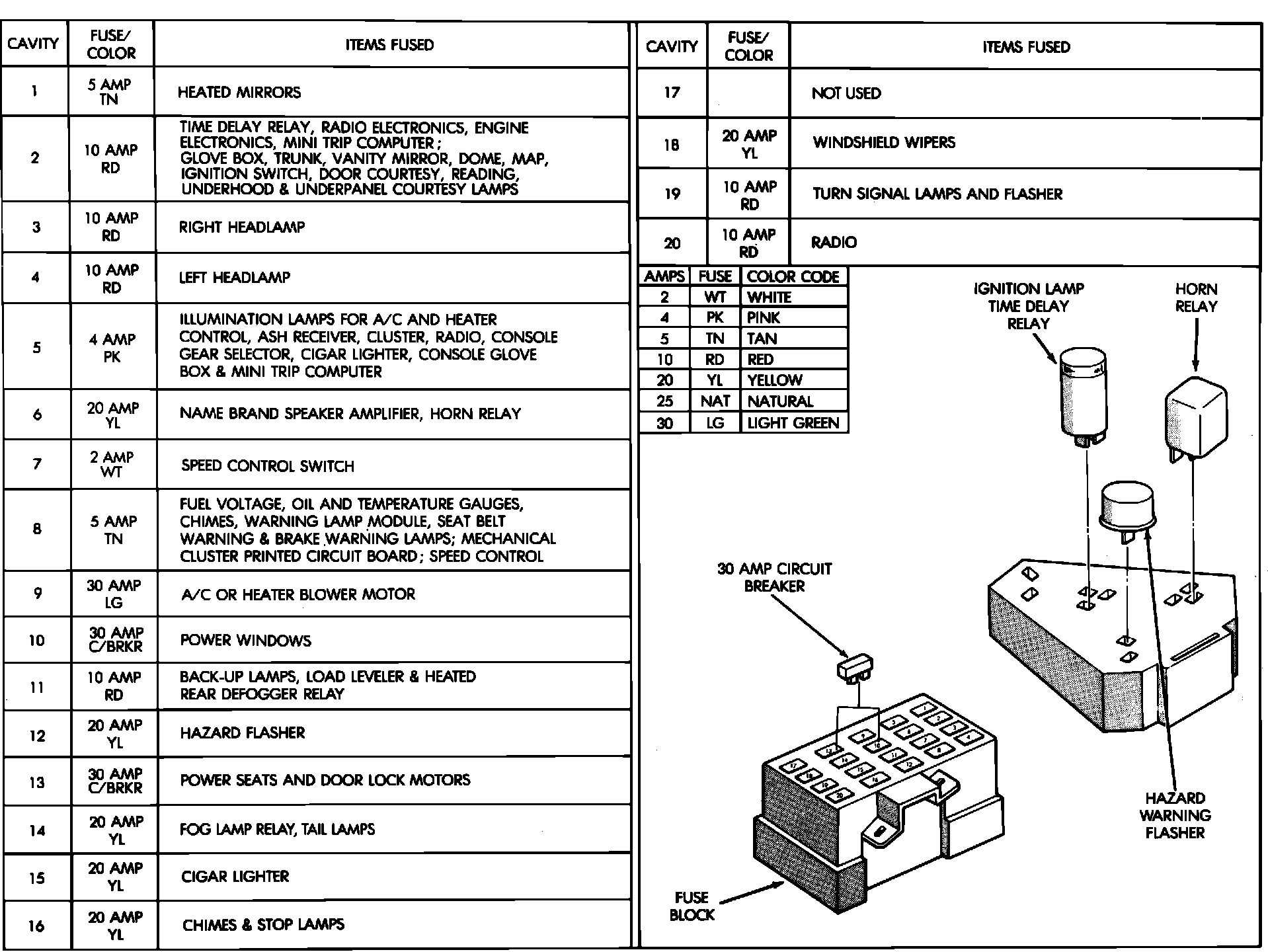

Fuse Block And Relay Bank AA Body:
