Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1992
>>
Spirit L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
Radiator Cooling Fan Temperature Sensor / Switch

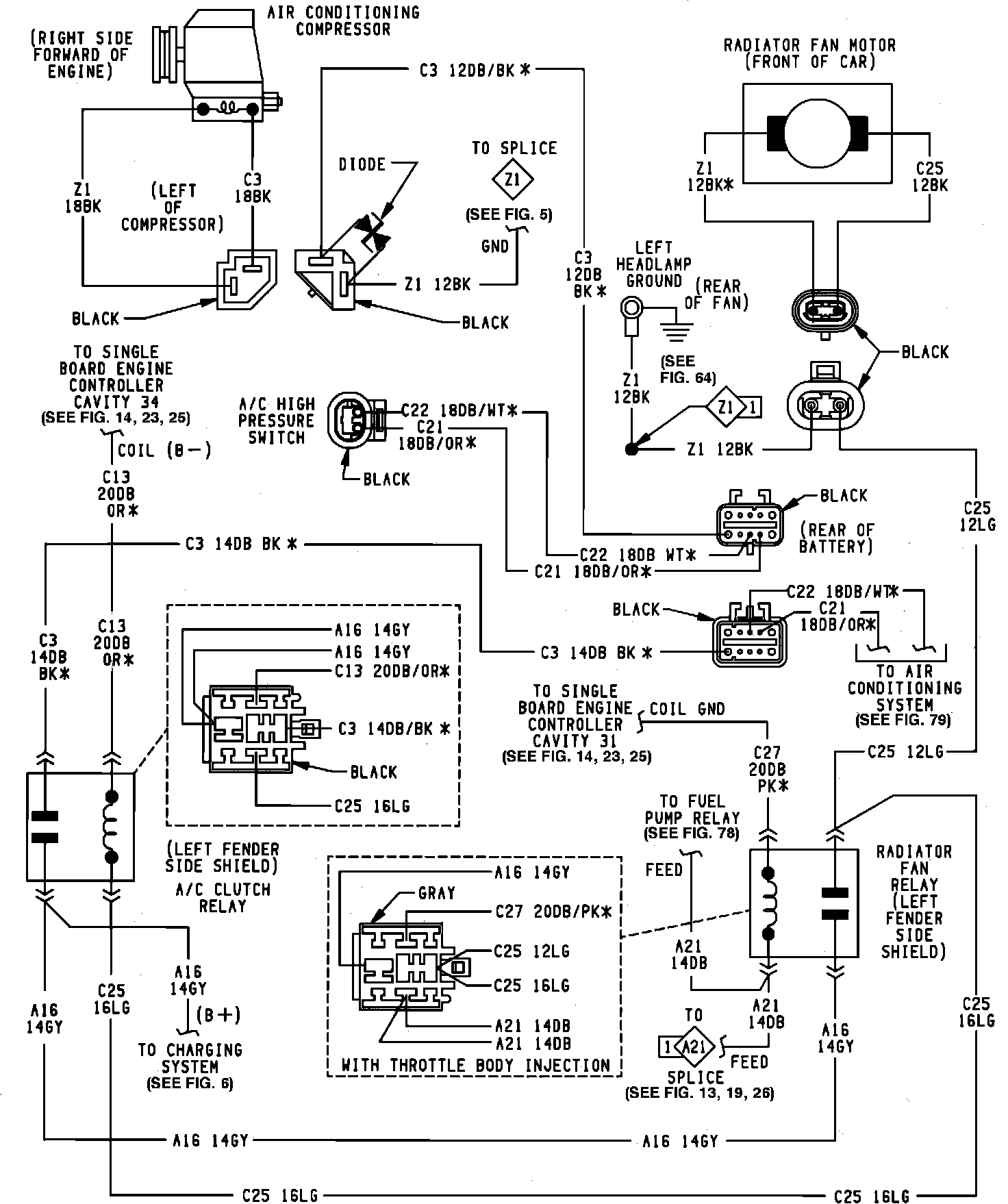

Radiator Cooling Fan Temperature Sensor / Switch
With A/C:
