Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

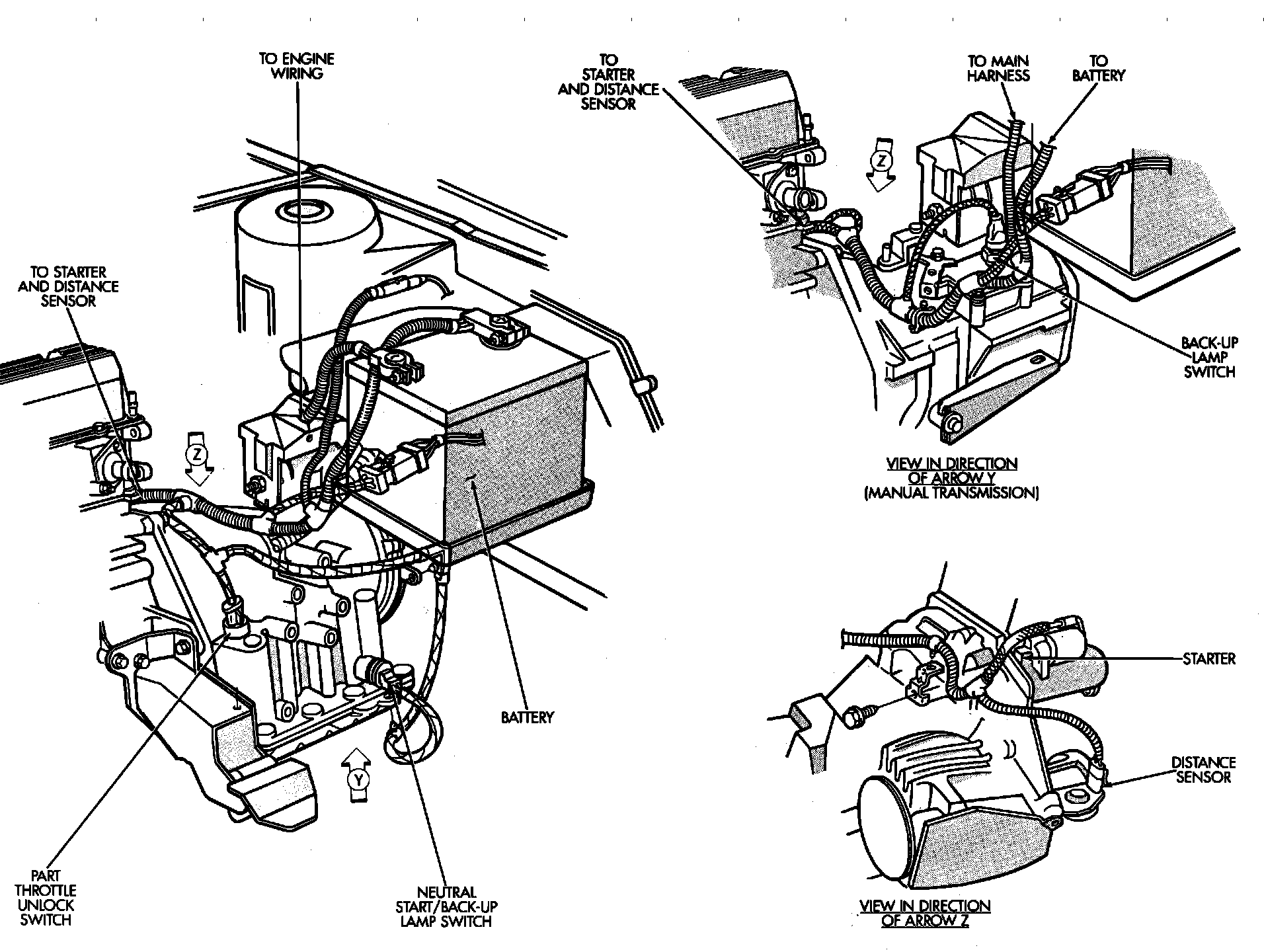

Transmission Wiring AA Body With 3 Speed Automatic:
Transmission Wiring ETAX AA Body:
