Spirit L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Instrument Panel Side
Instrument Panel Side

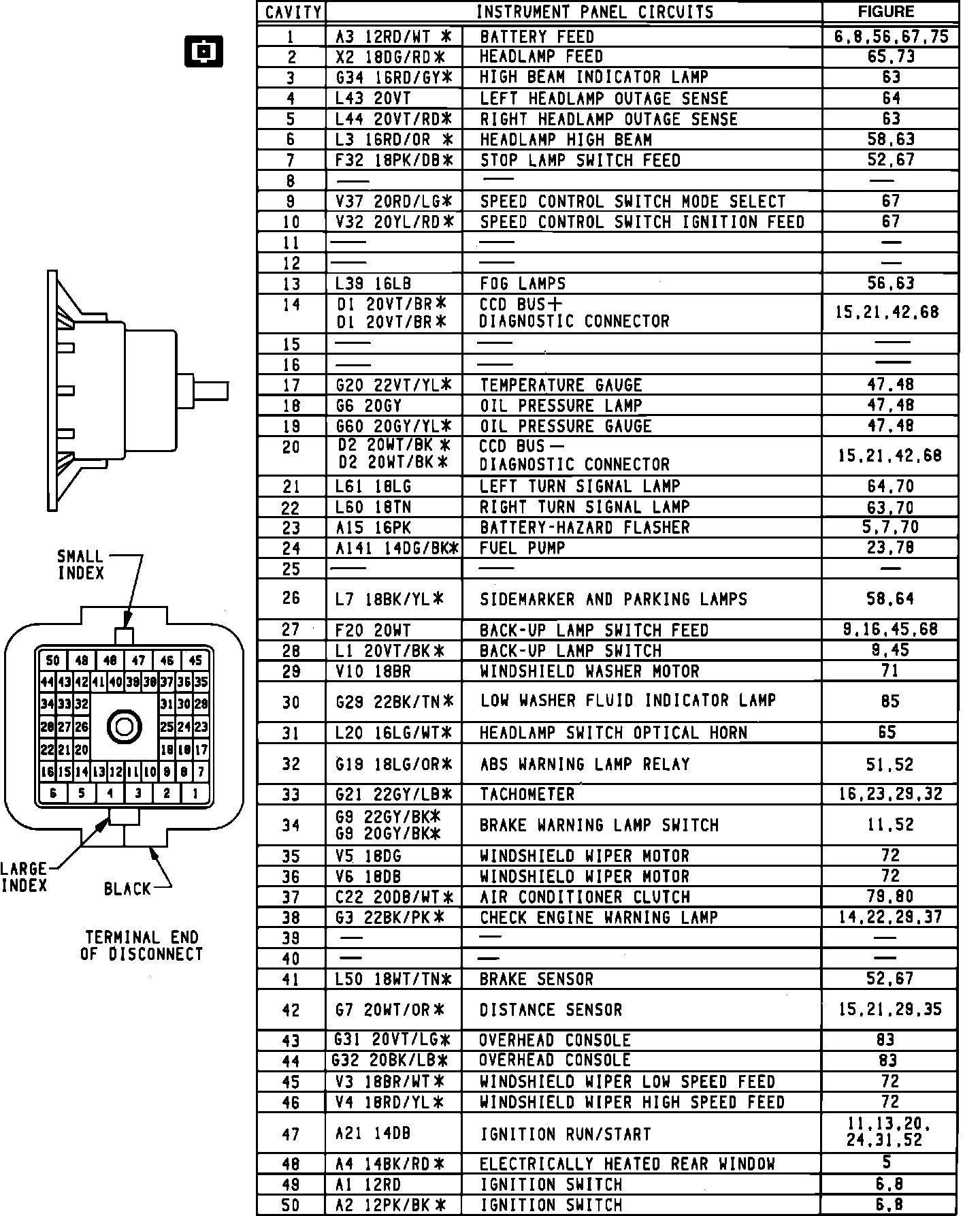

50 Way (In Car) Bulkhead Disconnect:
